4、Application Circuit

4.1 Serial Communication Connect

Module's serial port is 3.3V TTL level, so the default interface level is 3.3V. If the MCU system is 5V. It
is recommended connect a 1K resistor in series.
Repeat play
tracking 2
Repeat play
tracking 1
Repeat play
tracking 5
Repeat play
tracking 6
Repeat play
tracking 7
Repeat play
tracking 8
Repeat play
tracking 9
Repeat play
tracking 10
Repeat play
tracking 11
Repeat play
tracking 12
Repeat play
tracking 13
Repeat play
tracking 14

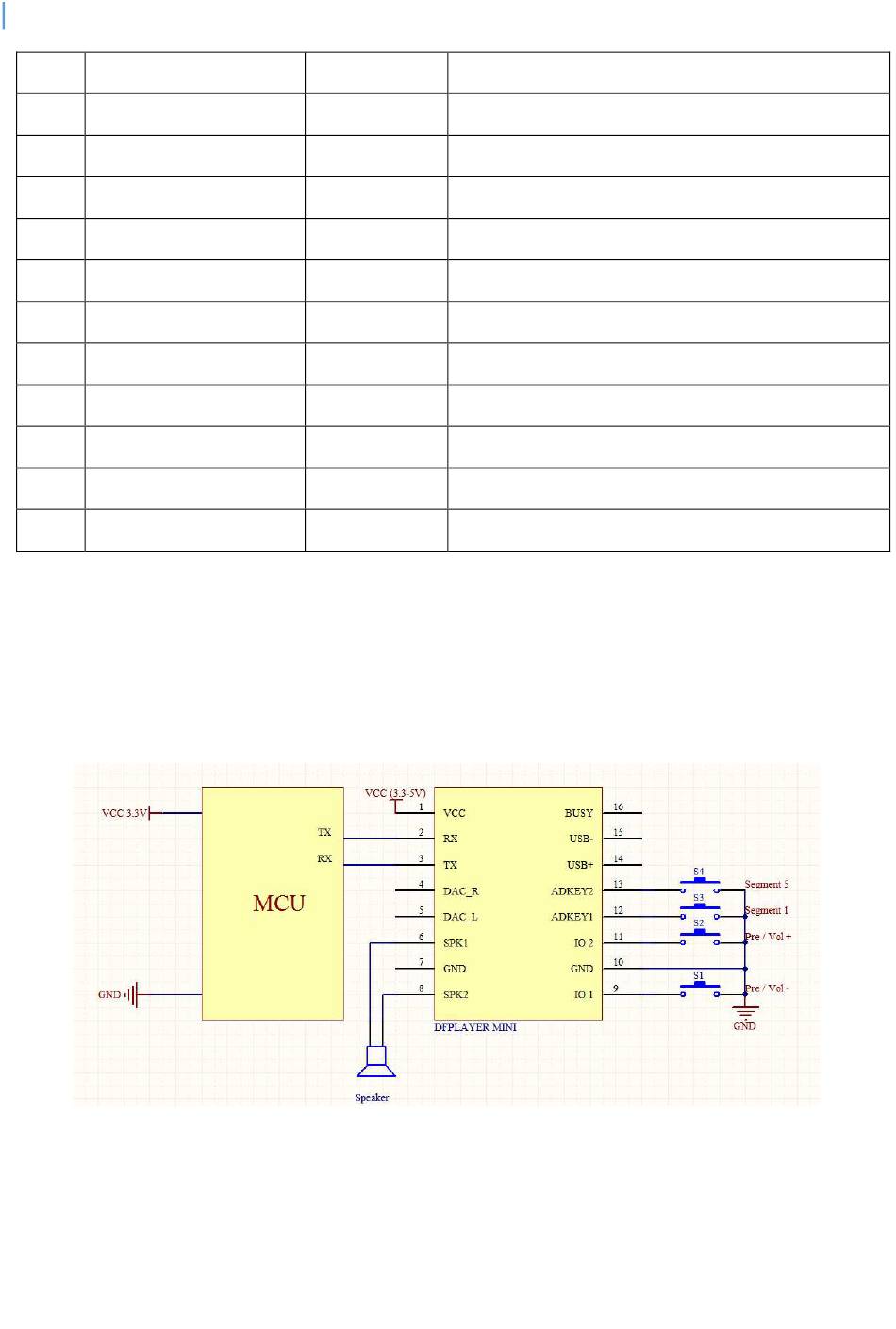

Figure 4.1 Serial Connect (3.3V)
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
Long push always to repeat play
