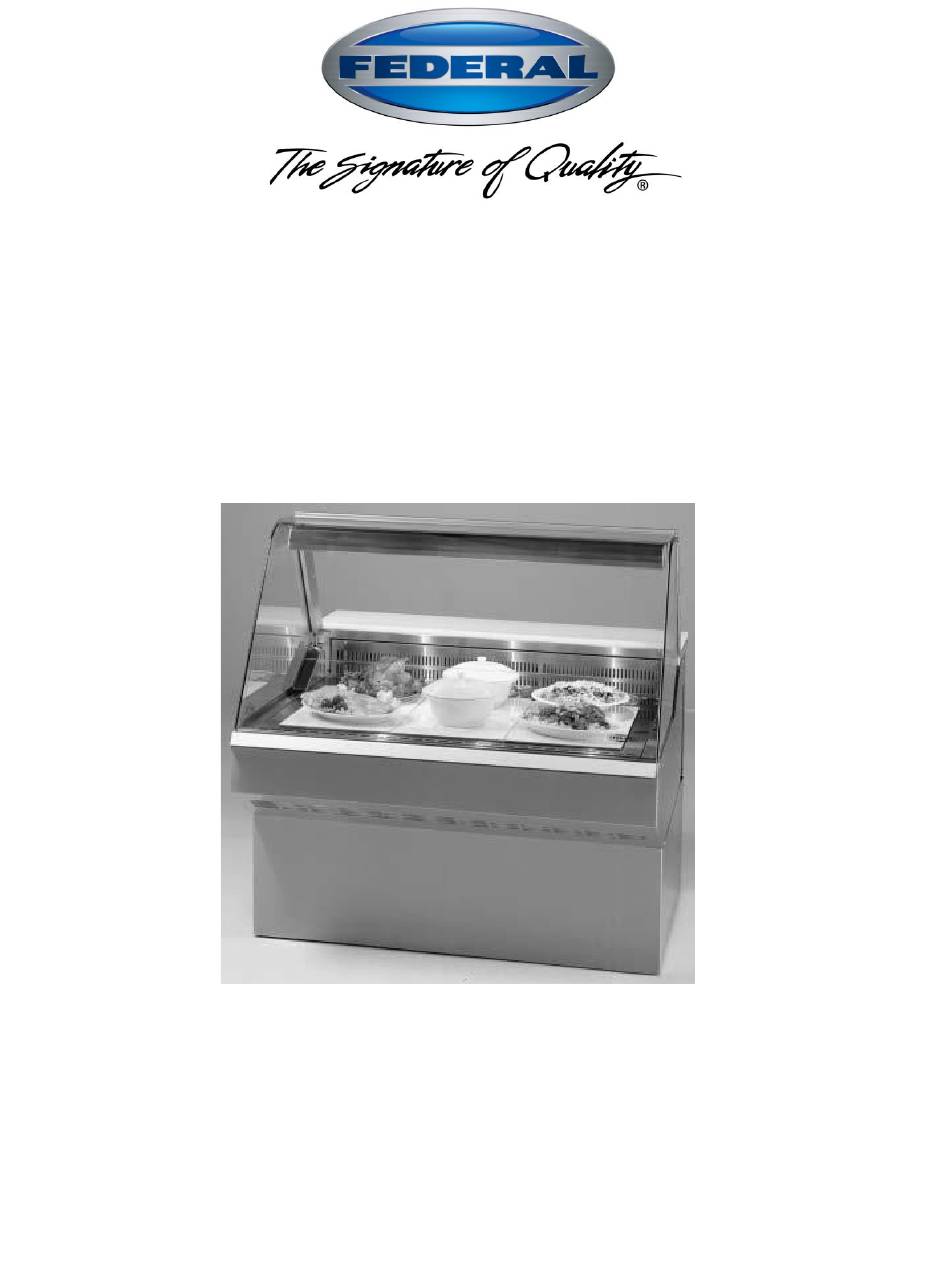

E1621
Rev A 09-01-18
SQ3HD, SQ4HD, SQ6HD & SQ8HD
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
Federal Industries
Toll Free 1(800) 356-4206
INSTALLATION & OPERATION
INSTRUCTIONS
P.O. Box 290
WI Phone (608) 424-3331
Belleville, WI 53508
Fax: (608) 424-3234
Advertisement
Table of Contents
Related Manuals for Federal SQ3HD
Summary of Contents for Federal SQ3HD
- Page 1 E1621 Rev A 09-01-18 SQ3HD, SQ4HD, SQ6HD & SQ8HD INSTALLATION & OPERATION INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice. Federal Industries P.O. Box 290 Belleville, WI 53508 Toll Free 1(800) 356-4206...
-
Page 2: Table Of Contents
PRE-SERVICE CHECKLIST ..................SPECIAL SERVICE SITUATIONS ................. 14 SALE & DISPOSAL ...................... 14 OWNER RESPONSIBILITY ................... 14 ELECTRICAL DATA ..................... 15 REPLACEMENT PARTS ..................16-17 WIRING DIAGRAM – SQ3HD, SQ4HD, SQ6HD, & SQ8HD ........18 WIRING DIAGRAM - RECEPTACLE ................19... -
Page 3: Introduction
Market Deli Refrigerated Cases INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the Market Deli Refrigerated Cases. A repair parts list and wiring diagram are also included in the manual. Read all of these documents carefully before installing or servicing your case. -
Page 4: Warning Labels & Safety Instructions
This is important installation, operation, or service information. If you ignore the message, you may damage your case. The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at 1(800) 356-4206 for replacements. -
Page 5: Pre-Installation Procedures
CAUTION Hot surface can cause severe burns Do not touch 91-10936 These lamps have been treated to resist breakage and must be replaced with a similarly treated 60w maximum lamp in standards. 91-13762 This label is located on the back of the display case. PRE-INSTALLATION PROCEDURES Inspection For Shipping Damage You are responsible for filing all freight claims with the delivering truck line. -
Page 6: Removing Case From Shipping Skid
Removing Case from Shipping Skid CAUTION Do not push against the curved glass, end glass, doors, or doorframes when removing the case from the skid or moving the case. Case damage or glass breakage could result. Move the case as near as possible to the final location before removing it from the shipping skid. -
Page 7: Lights
reservoir and float switch mechanism. To reduce “hammering” of solenoid valve, needle valve can be adjusted to reduce incoming water pressure to solenoid. Needle valve is located at inlet of solenoid valve. Lights The lights are coated incandescent bulbs and must be replaced with exact equivalent bulbs. -
Page 8: Operating Instructions
All well cavities must be completely covered with food pans (not included) for proper operation of case. A variety of sizes of pans can be used from 2” to 6” in depth. Model # of Well Cavities SQ3HD SQ4HD SQ6HD SQ8HD Always preheat the wells before placing product into case. -
Page 9: Hinged Front Glass
Hinged Front Glass DO NOT OPERATE GLASS UNTIL CASE REACHES ROOM TEMPERATURE. The front glass hinges up for easy cleaning of the case interior. Pneumatic cylinders assist in lifting the glass. The glass will hold open in any position. To close glass, push down on center of handle until glass rests on top of support clips. It may be necessary to lift glass slightly to push it onto clips. -
Page 10: Computer Controls
COMPUTER CONTROLS SQHD CASES E3015(2-Well) E3016(3-Well) E3017(5-Well) E3018 (7-Well) Display Display temperature readout and displays the time. Down Arrow Press once to display current heat setting, press again to change to a cooler setting. Up Arrow Press once to display current heat setting. Press again to change to a warmer setting. Temperature Setting The display has an off position, “0”, and numbered position 1 through 9. - Page 11 E3015 CLOCK START STOP LIGHTS HUMIDITY POWER TIME TIME TIME DISPLAY DISPLAY DISPLAY ON/OFF ON/OFF ON/OFF WELL WELL OVERHEAD WARMER DISPLAY DISPLAY DISPLAY E3016 CLOCK START STOP LIGHTS HUMIDITY POWER TIME TIME TIME DISPLAY DISPLAY DISPLAY ON/OFF ON/OFF ON/OFF WELL WELL WELL OVERHEAD WARMER...
- Page 12 E3017 CLOCK START STOP LIGHTS HUMIDITY POWER TIME TIME TIME DISPLAY DISPLAY DISPLAY ON/OFF ON/OFF ON/OFF WELL WELL WELL WELL WELL OVERHEAD WARMER DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY E3018 CLOCK START STOP LIGHTS HUMIDITY POWER TIME TIME TIME DISPLAY DISPLAY DISPLAY...
-
Page 13: Cleaning Instructions
CLEANING INSTRUCTIONS Daily Cleaning This case should be cleaned thoroughly, as described in the weekly cleaning section, before it is used for the first time. NOTICE: Avoid splashing or soaking any electrical components with water to prevent electrical damage to the case. NOTICE: Shut off lights and power switches and remove all product from case. -
Page 14: Interior Cleaning
Interior Cleaning After the unit has reached temperature – proceed as follows: Remove rear doors by tilting top of frame back and lifting entire assembly out. Lift up the front glass to the fully open position. Lift the display pans up and take them out of the case. Remove pan supports. -
Page 15: Service Information
91-12340 Service problems or request for repair parts from authorized service agencies, trained service personnel, or owners should be referred to: Warranty/Technical Service Department Federal Industries P.O. Box 290 Belleville, Wi 53508 Toll Free: (800) 356-4206/ WI Phone (608) 424-3331 Fax: (608) 424-3234 . -
Page 16: Special Service Situations
SALE & DISPOSAL Owner Responsibility If you sell or give away your Federal Industries case, you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. -
Page 17: Electrical Data
ELECTRICAL DATA ALL MODELS ARE 120/208-240 VOLT, 1 PHASE, 60 HERZE SQ3HCD SQ4HD SQ6HD SQ8HD AMPS AMPS AMPS AMPS Well Heaters 13.9 19.4 Overhead Warmer 2.5 0.3 ea.(1) 0.3 ea.(1) 0.3 ea.(2) 0.3 ea.(2) Lights Humidity System Refer to the rating plate data attached to the rear of the case for Maximum Fuse Size and Minimum Circuit Ampacity. -
Page 18: Replacement Parts
REPLACEMENT PARTS MODELS: SQ3HD, SQ4HD, SQ6HD & SQ8HD Part Description Part Number Electrical Components Fan Motor 41-13776 41-13776 41-13776 41-13776 Light Bulb 42-11248 42-11248 42-11248 42-11248 Lamp Holder 42-13649 42-13649 42-13649 42-13649 Ribbon Cable (8 Pin) 41-13767 41-13767 41-13767 41-13767... -
Page 19: Replacement Parts
REPLACEMENT PARTS MODELS: SQ3HD, SQ4HD, SQ6HD & SQ8HD Part Description Part Number Misc. Components SQ3HD SQ4HD SQ6HD SQ8HD Rear Door Glass 15-14148 15-14149 15-14150 15-14151 Front Curved Glass 50-13028 50-13029 50-12830 50-13831 Side Glass 51-13124 51-13124 51-13124 51-13124 Glass Baffle... -
Page 20: Wiring Diagram - Sq3Hd, Sq4Hd, Sq6Hd & Sq8Hd
WIRING DIAGRAM SQ3HD, SQ4HD, SQ6HD & SQ8HD Market Deli Heated Cases Page 18... -
Page 21: Wiring Diagram - Receptacle
WIRING DIAGRAM - RECEPTACLE California Residents Only. WARNING This product can expose you to chemicals including chromium which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Market Deli Heated Cases Page 19...
