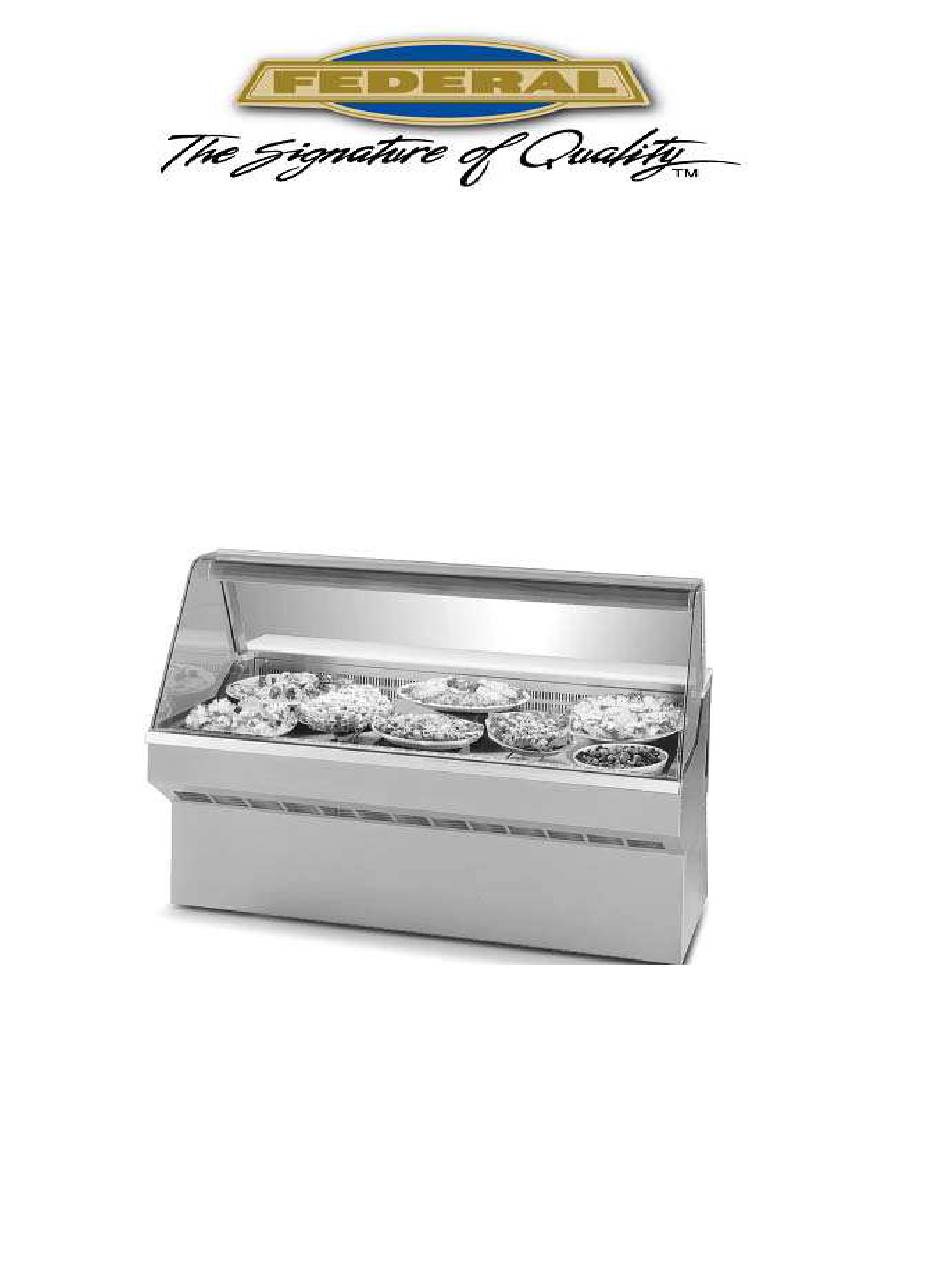

E-1620
0509
SQ3CD, SQ4CD, SQ5CD, SQ6CD, SQ8CD
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
Federal Industries
Toll Free 1(800) 356-4206
Self-Contained & Remote Models
INSTALLATION & OPERATION
INSTRUCTIONS
P.O. Box 290
WI Phone (608) 424-3331
Belleville, WI 53508
Fax: (608) 424-3234
Advertisement
Table of Contents
Related Manuals for Federal SQ3CD
Summary of Contents for Federal SQ3CD
- Page 1 E-1620 0509 SQ3CD, SQ4CD, SQ5CD, SQ6CD, SQ8CD Self-Contained & Remote Models INSTALLATION & OPERATION INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice. Federal Industries P.O. Box 290 Belleville, WI 53508 Toll Free 1(800) 356-4206...
-
Page 2: Table Of Contents
REFRIGERATION & ELECTRICAL DATA - REMOTE ..........16 REPLACEMENT PARTS ....................17 REPLACEMENT PARTS ....................18 WIRING DIAGRAM – SQ3CD, SQ4CD, SQ5CD, SQ6CD – SELF-CONTAINED ..19 WIRING DIAGRAM – SQ8CD – SELF-CONTAINTED ..........20 WIRING DIAGRAM – SQ3CD-R, SQ4CD-R, SQ5CD-R, SQ6CD-R - REMOTE ..21 WIRING DIAGRAM –... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the Market Deli Refrigerated Cases. A repair parts list and wiring diagram are also included in the manual. Read all of these documents carefully before installing or servicing your case. -
Page 4: Warning Labels & Safety Instructions
This is important installation, operation, or service information. If you ignore the message, you may damage your case. The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at 1(800) 356-4206 for replacements. -
Page 5: Pre-Installation Procedures
Floor surface around case may become slippery. Excess condensation can occur and run onto the floor if case is operated in an environment above recommended temperature and humidity levels. Case is designed to operate in an environment not to exceed 75º F. This label is located on the back of the display case. -
Page 6: Removing Packaging Material
Removing Packaging Material Remove the brackets that held the case to the shipping skid. Remove the shipping tape that secures the doors and lift-up glass. If it is necessary to remove tape residue from plastic materials, use cleaning compounds recommended in the cleaning section of this manual. -
Page 7: Electrical Information & Grounding
ELECTRICAL INFORMATION & GROUNDING This Case Must Be Grounded DANGER: Improper or faulty hookup of electrical components in the display case can result in serve injury or death. All case electrical connections must be performed only by a licensed electrician. All electrical wiring hookups must be done in accordance with all applicable local, regional, or national electrical standards. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Initial Start-Up After all the checks outlined in the installation section of this manual have been made, the case is ready to be put into service. Doors Clean the door track frequently for easy door operation. A very light film of lubricant, such as PAM, will help the doors slide easily. -
Page 9: Computer Controls
COMPUTER CONTROLS SQCD CASES E3014 Display Display temperature readout and displays the time. Down Arrow Press once to display current heat setting, press again to change to a warmer setting. Up Arrow Press once to display current refrigeration setting. Press again to change to a cooler setting. - Page 10 CLOCK DEFROST DEFROST LIGHTS HUMIDITY POWER TIME START STOP DISPLAY DISPLAY DISPLAY ON/OFF ON/OFF ON/OFF Market Deli Refrigerated Cases Page 8...
-
Page 11: Hinged Front Glass
Hinged Front Glass The front glass hinges up for easy cleaning of the case interior. Pneumatic cylinders assist in lifting the glass. The glass will hold open in any position. The hinged glass mechanism will give years of reliable operation in normal usage. Service on the lift mechanism is required if . -
Page 12: Cleaning Instructions
CLEANING INSTRUCTIONS Daily Cleaning This case should be cleaned thoroughly, as described in the weekly cleaning section, before it is used for the first time. NOTICE: Avoid splashing or soaking any electrical components with water to prevent electrical damage to the case. NOTICE: Shut off lights and power switches and remove all product from case. -
Page 13: Interior Cleaning
Interior Cleaning Remove rear doors by tilting top of frame back and lifting entire assembly out. Lift up the front glass to the fully open position. Lift the display pans up and take them out of the case. Remove thumbscrews that hold the rear vent to the back of the case. Take out front condensation glass by lifting it up and out. -
Page 14: Service Information
SERVICE INFORMATION Before any service work is performed on the case, make sure all power is disconnected to the case. CAUTION RISK OF ELECTRIC SHOCK DISCONNECT POWER BEFORE SERVICING UNIT. 91-12340 Service problems or request for repair parts from authorized service agencies, trained service personnel, or owners should be referred to: Warranty/Technical Service Department Toll Free: (800) 356-4206... - Page 15 Cases Does Not Operate Check for disconnected power supply. Check for tripped breaker or blown fuse. Check that the power switch and thermostat displays are not “off”. Lights Do Not Operate Check that light switch is “on”. Be sure light is properly seated in the sockets. Case Temperature Too Warm Check that the cold air inlet and outlet slots are not blocked.
-
Page 16: Special Service Situations
SALE & DISPOSAL Owner Responsibility If you sell or give away your Federal Industries case, you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. -
Page 17: Refrigeration & Electrical Data - Self-Contained
REFRIGERATION & ELECTRICAL DATA SQ3CD SQ4CD SQ5CD SQ6CD SQ8CD Refrigerant 24 oz. 28 oz. 30 oz. 32 oz. 36 oz. Charge (R-134A) ALL MODELS ARE 120 VOLT, 1 PHASE, 60 HERTZ AMPS AMPS AMPS AMPS AMPS Compressor 10.7 48.0 58.8 58.8... -
Page 18: Refrigeration & Electrical Data - Remote
REFRIGERATION & ELECTRICAL DATA SQ3CD SQ4CD SQ5CD SQ6CD SQ8CD Refrigerant R134A R134A R134A R134A R134A ALL MODELS ARE 120 VOLT, 1 PHASE, 60 HERTZ AMPS AMPS AMPS AMPS AMPS Evaporator Fan 0.4 ea.(1) 0.4 ea.(1) 0.4 ea.(2) 0.4 ea.(2) Lights... -
Page 19: Replacement Parts
REPLACEMENT PARTS MODELS SQ3CD, SQ4CD, SQ5CD, SQ6CD & SQ8CD (SELF-ONTAINED) Part Description Part Number Refrigerated System SQ3CD SQ4CD SQ5CD SQ6CD SQ8CD Condensing Unit 30-13455 30-12961 30-12961 30-12961 30-12962 Compressor 30-15035 30-15036 30-12961 30-15036 30-15037 Evaporator Coil 33-13267 33-13268 30-13268 33-13269... -
Page 20: Replacement Parts
REPLACEMENT PARTS MODELS SQ3CD, SQ4CD, SQ5CD, SQ6CD & SQ8CD (REMOTE) Part Description Part Number Refrigerated System SQ3CD SQ4CD SQ5CD SQ6CD SQ8CD Evaporator Coil 33-13267 33-13268 33-13268 33-13269 33-13270 Expansion Valve 32-12625 32-12625 32-12625 32-12625 32-12625 Evaporator Fan Motor 41-11628 41-11628... -
Page 21: Wiring Diagram - Sq3Cd, Sq4Cd, Sq5Cd, Sq6Cd - Self-Contained
UNIT 1. SEE DATA PLATE FOR WIRE AND FUSE SIZING. USED ON SQ4CD 2. UNIT MUST BE GROUNDED. SQ-6CD ONLY LAMP SQ3CD 3. CUT AND INSULATE EXTRA LEAD IN TWO LAMP (1 LAMP) FO40 APPLICATION MOTOR MOTOR (MEZANNINE OPTION) SEE DIAGRAM COLOR CODE IN COMP. -
Page 22: Wiring Diagram - Sq8Cd - Self-Containted
LAMP LAMP LAMP MOTOR MOTOR CONDENSING UNIT (MEZANNINE OPTION) LAMP EVAPORATOR SEE DIAGRAM FLOAT IN COMP. THERMOSTAT SWITCH FOR DETAILS. CONDENSATE LAMP RELAY LAMP 2X4 BOX FIELD WIRING BALLAST 120 VOLTS 60 HERTZ 1 PHASE RIBBON CABLE BALLAST DIGITAL THERMOMETER THERMOSTAT (MEZANNINE OPTION) TEMPERATURE PROBES... -
Page 23: Wiring Diagram - Sq3Cd-R, Sq4Cd-R, Sq5Cd-R, Sq6Cd-R - Remote
OPTIONAL CONDENSATE PUMP EXTRA FAN USED ON FLOAT SQ-6CD ONLY SWITCH MOTOR MOTOR SOLENOID (COMPRESSOR) CIRCULATION CONDENSATE LAMP EVAPORATOR FLOAT THERMOSTAT SWITCH LAMP 2X4 BOX FIELD WIRING 120 VOLTS 60 HERTZ 1 PHASE BALLAST NOTE 3 SOLENOID (HUMIDITY OPTION) RIBBON CABLE COLOR CODE THERMOSTAT DIGITAL THERMOMETER... -
Page 24: Wiring Diagram - Sq8Cd-R - Remote
LAMP AIR CIRCULATION FAN MOTOR MOTOR LAMP SOLENOID (COMPRESSOR) CONDENSATE LAMP EVAPORATOR FLOAT THERMOSTAT SWITCH LAMP 2X4 BOX FIELD WIRING 120 VOLTS 60 HERTZ 1 PHASE BALLAST SOLENOID (HIMIDITY OPTION) RIBBON CABLE SEE DATA PLATE FOR WIRE AND FUSE SIZING. COLOR CODE THERMOSTAT DIGITAL THERMOMETER... -
Page 25: Wiring Diagram - Receptacle
WIRING DIAGRAM RECEPTACLE W BLK 2X4 BOX 15 AMP GFCI 120 VOLTS RECEPTACLE 60 HERTZ 1 PHASE UNIT MUST BE GROUNDED E-1423-1 07/25/07 BJW WIRING, PLUG RECEPTACLE Market Deli Refrigerated Cases Page 23...
