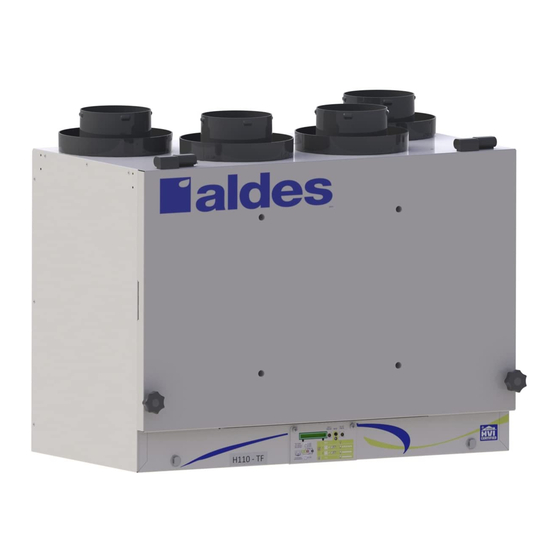

INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
RESIDENTIAL
HEAT & ENERGY RECOVERY VENTILATORS
FOR MODELS:
H/E95 • H/E110 • H120 • H/E150 • H/E190 • H/E280
TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION
Installer: Leave this manual for the homeowner
Model
I
nstalling Contractor
Telephone / Contact
Serial Number
Installation Date
REGISTER YOUR PRODUCT ONLINE AT ALDES.CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H/E95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for aldes H/E95

Summary of Contents for aldes H/E95

  • Page 1 INSTALLATION, OPERATIONS & MAINTENANCE MANUAL RESIDENTIAL HEAT & ENERGY RECOVERY VENTILATORS FOR MODELS: H/E95 • H/E110 • H120 • H/E150 • H/E190 • H/E280 TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION Installer: Leave this manual for the homeowner Model nstalling Contractor...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS I. INTRODUCTION II. GENERAL HRV/ERV TERMINOLOGY & FUNCTION Definitions How Heat & Energy Recovery Ventilators Work Ventilating with HRV/ERVs III. PRECAUTIONS & GUIDELINES Ducting Configurations Locating the Air Exchanger Ducting Materials Connecting the Ducts Recirculation Using Fifth Ports (Optional) Vent Hood Locations Locating the Exhaust Air Grilles or Registers Locating the Air Grilles of Diffusers...

  • Page 3: Introduction

    Residential HRV/ERV I. INTRODUCTION Thank you for purchasing this Aldes ventilation product. To receive the full benefit of your investment, we recommend that you read and retain this operating manual for future reference. II. GENERAL HRV/ERV TERMINOLOGY AND FUNCTION Definitions...

  • Page 4: Ventilating With Hrv/Ervs

    How your home was built • Your personal preferences for fresh air The Aldes HRV/ERV introduces fresh air to your home while recovering energy from the air it exhausts. Specifically, an HRV/ERV that is properly installed, operated and maintained will: •...

  • Page 5: Precautions & Guidelines

    Residential HRV/ERV III. PRECAUTIONS & GUIDELINES WARNING indicates the potential of risk of personal injury or death if not observed. CAUTION identifies an action that may damage the unit, its components, or related equipment. RECOMMENDATIONS and NOTES suggest operational modes, installation of vent hoods, interior supply and exhaust duct layouts, use of advanced features of the equipment that may result in improved economy and comfort.

  • Page 6: Ducting Configurations

    Residential HRV/ERV When cutting or drilling into wall or ceiling structures, do not damage electrical wiring or other hidden utilities. Do not use this unit with any speed controls, dehumidistats or timers other than those specifically indicated within this manual. This unit must be grounded.
  • Page 7 This system is not connected to an Air-Handling Unit (AHU) or furnace. This system is normally balanced on high speed. If Aldes patented* Zone Register Terminals (ZRT®) are used for exhaust or supply registers, balancing must be done at normal operating speed.
  • Page 8 Residential HRV/ERV Partially Ducted System – Configuration Dedicated Exhaust OUTDOOR AIR Grilles INDOOR AIR EXHAUST AIR 6 ft min SUPPLY AIR HVAC SUPPLY DUCT HVAC RETURN DUCT Supply Air Ducted to HVAC Return Duct Add a ‘‘T’’ recommended HVAC AHU for H110-TF *Note: Port configurations are generic and do not...
  • Page 9 Residential HRV/ERV Backdraft or motorized dampers may be built into the HRV/ERV to prevent entry of outdoor air during off cycles, but they should not be installed in the duct leading to the outside. Due to these reasons, it may be preferable to avoid a direct duct connection to the return of the AHU and use an indirect approach instead.
  • Page 10 Residential HRV/ERV Fully Integrated System OUTDOOR AIR EXHAUST AIR INDOOR AIR 6 ft min SUPPLY AIR 40 in. min HVAC SUPPLY DUCT HVAC RETURN DUCT HVAC AHU *Note: Port configurations are generic and do not represent specific models Fully Integrated System The fully integrated system draws stale air from the return ducting of a forced-air heating and cooling system, and supplies fresh outdoor air back into the return ducting downstream of the exhaust connection.

  • Page 11: Locating The Air Exchanger

    Residential HRV/ERV Locating the Air Exchanger The device must be located in a place where the temperature is always above freezing. Choose a location for the device where the ducts will be short with minimal use of elbows. This ensures that the system functions optimally. Ducting Materials WARNING: Always validate with the Building Code in effect before designing your ducting.

  • Page 12: Recirculation Using Fifth Ports (Optional)

    Residential HRV/ERV For units with a recirculation port (5th port), the following options are available depending on your needs. 1 - DUCTLESS Mechanical The recirculation port can be left room Duct (optional) in the open air. Allow a minimum clearance of 6 inches to ensure Recirculation port Air intake proper air circulation.

  • Page 13: Vent Hood Locations

    Residential HRV/ERV screws to the duct collars, as they may interfere with the damper operations at each duct collar. Reinstall collars, with duct attached, to their respective labeled ports on the HRV/ERV by lining up locking tabs and twisting on in a clockwise direction. Vent Hood Locations (Manufacturer’s recommendation only.

  • Page 14: Locating The Exhaust Air Grilles Or Registers

    Residential HRV/ERV Guidelines for locating intake and exhaust wall hoods Note: Local codes may allow less or require greater distances between exhaust and intake wall hoods. Locating the Exhaust Air Grilles or Registers (in systems with dedicated exhaust ducting) The exchanger has at least one exhaust air intake register. Exhaust air registers should be placed where the humidity level is high, such as bathrooms, laundry rooms, and kitchens.

  • Page 15: Zone Register Terminals (Zrt ® )

    These grilles should not be adjusted after balancing the unit. Zone Register Terminals (ZRT ® Aldes patented* Exhaust Zone Register Terminals (ZRT®) are designed to introduce flexibility and on- demand control to central ventilation systems. Used in both large and small systems, the ZRT zonally regulates ventilation without the need for individual fans.

  • Page 16: Installation

    ASHRAE 62.2 standards recommend maintaining a relative humidity rate between 30% and 60%. The average person is comfortable between 30-50% relative humidity (RH). Aldes offers several wall controls with a dehumidistat function. Please refer to the wall control user guide for detailed information.

  • Page 17: Mounting The Unit

    Residential HRV/ERV The following are typical items (sold separately) that may be used for standard installation. Contact your local distributor to order Aldes items. » Digital Multifunction Controller (P/N 611242-FC) » Electronic humidistat with LCD (P/N 611227) » Humidity Control (P/N 611224) »...

  • Page 18: Drain Connections (Hrv Models)

    Residential HRV/ERV Drain Connections (HRV Models only ERV Models do not require plumbing.) Regardless of mounting method, the device should be installed level to ensure that condensation (produced during a defrost cycle) drains from the unit. The water should flow into a nearby drain or bucket.

  • Page 19: Electrical Diagram

    Residential HRV/ERV Electrical Diagram Extra jumper (does not connect both pins). Option is selected when jumper connects both pins on the row. Options jumper block Programms jumper block Configuration Options In order to configure the different modes on your unit, you may need to move a jumper on the unit’s printed circuit board.
  • Page 20 Residential HRV/ERV Using a Phillips head screwdriver, remove the three screws that secure the metal control board cover. Removing the screws With the cover removed, locate the jumper pins on the control board. These are positioned just behind the motor speed dials on the front of the unit. In the next few pages, you will find how to set the jumpers to enable or disable your options.

  • Page 21: Unit Wiring

    Once confguration is complete, replace the circuit board cover and the terminal block and proceed to wiring the unit to the controls. Unit Wiring A) Unit wiring to accessories All units can be used with the following Aldes wall accessories: 611224: Humidistat Accessories 611227: Electronic Humidistat with liquid crystal display...
  • Page 22 Residential HRV/ERV With this wiring, the unit can be operated at the following settings: - Off - Low Speed Exchange - High Speed Exchange - Low Speed Recirculation (except for models H/E110-TF) - High Speed Recirculation (except for models H/E110-TF) Low and High speeds can be adjusted with FlexControl (refer to page 33).
  • Page 23 Residential HRV/ERV If low speed is insufficient and high speed is required to satisfy ventilation rate, connect a jumper between terminals 3 and 4 in addition to the switched line between terminals 1 and 4 (see illustration below). This sets the ventilation speed to high. (SWITCH) TERMINAL BLOCK 8 7 6...

  • Page 24: Wiring To The Power Source

    The Digital Multifunction Control (P/N 611242-FC) can be used with any type of Aldes Residential HRV/ERV. The con- troller should be installed in the place where excess humidity is most likely to be detected, for example near a bathroom, kitchen or in the basement.
  • Page 25 Set the ON/OFF switches to correspond to your HRV/ERV model, as listed in the following table: ON OFF With recirculation and with- ON OFF out free cooling Without Recirculation Models: H/E95, H/E120 Models: H/E110 H/E150, H/E190, H/E280 ON OFF With recirculation and with free cooling Models: None Connect each wire to the terminal board on the back of the controller face plate according to the connection chart shown on the mounting plate.

  • Page 26: Installing The Humidity Control (P/N 611224)

    Repeats every 60 minutes. Executes a high-speed exchange sequence for the selected period of one, two, or four hours. When paired with the Aldes 611228 timer unit, high-speed air is exchanged during its countdown interval. Automatically controls the level of...

  • Page 27: Installing The 20/40/60 Minute Timer (P/N 611228)

    Residential HRV/ERV Screw the back side of the control panel to the wall. Use the mounting screws to secure the plastic lid and button into place. The HRV/ERV, eliminates excess humidity by switching to high-speed exchange mode whenever the realtive humidity in the room rises above the Dehumidistat’s setting. To disable the Dehumidistat (for example on a hot humid day), turn the knob to the highest set point.

  • Page 28: Installing The Speed Control (P/N 611229) Or Mode Control (611230)

    Residential HRV/ERV Installing the Speed Control (P/N 611229) or Mode Control (P/N 611230) Speed Control (P/N 611229) This controller provides the ventilation unit with 4 modes of operation: • Intermittent mode; successive cycles, low-speed 20-min exchange, 40-min stop mode or recirculation •...

  • Page 29: Zrt Ventzone® Systems

    Residential HRV/ERV ZRT VentZone® Systems VentZone® Systems by Aldes combine model ZRT demand-controlled zone register terminals and Heat Recovery Ventilators (HRV) or Energy Recovery Ventilators (ERV) to create the most advanced home ventilation solution. Zone Register Terminals (ZRT) replace individual fans or static grilles, which control the fan so that areas are only ventilated as desired.
  • Page 30 Residential HRV/ERV Getting Started Before installing your ventilator, the unit must be configured to operate in SLAVE mode (see page 20). Depending on selection, the ZRTs will be designed to operate on 120V power or 24V power provided by the ventilator itself. If you are not certain what you have, this can be easily determined by the color of the wires on the ZRTs.

  • Page 31: Measuring & Balancing Airflow

    Residential HRV/ERV Adding Accessories to the VentZone® System Due to the operation of the VentZone® System, most Aldes controllers cannot be utilized. If desired, the VentZone® System can be used with the Aldes Humidity Controller (P/N 611224). Use of this controller requires one additional ZRT-1-6-24 to be controlled by said controller in order to prevent unwanted pressurization of the home.
  • Page 32 Residential HRV/ERV Door-Port Balancing – Measuring Airflow Finish sealing the ductwork system. Make sure all the HRV/ERV components are in place and functioning properly. Prepare the pressure gauge by mounting it according to manufacturer’s instructions and zeroing the gauge. Prepare the HRV/ERV and select the operating speed. For most installations, measuring at high speed permits a more accurate reading, and the system will normally remain in balance at lower speeds.
  • Page 33 Residential HRV/ERV Record the pressure measurement. Refer to the reference chart on the unit that shows the pressure readings versus the corresponding supply airflows. Record this airflow. Connect the tubing to the corresponding indoor air and exhaust air door ports using the diagram above.
  • Page 34 Residential HRV/ERV To Adjust SUPPLY (FAN IN) air stream: Connect the tubes like the diagram below shows, then turn the FAN IN potentiometer to the desired level. Adjust the EXHAUST (FAN OUT) air stream: Connect the tubes like the diagram below shows, then turn the FAN OUT potentiometer to the desired level.

  • Page 35: In-Duct Balancing

    Airflow station or probe in the supply and exhaust ducts to measure the average pressure, then use a conversion chart (provided by the flow station manufacturer) to convert to velocity then to airflow. Aldes supplies an Airflow Balancing Kit (sold separately).

  • Page 36: Zrt Ventzone® Balancing

    Hot-wire thermal anemometers provide a direct air velocity reading. Balancing in a VentZone® system The ZRT-2 models are equipped with Aldes Constant Airflow Regulators to automatically regulate airflow from each terminal while the ventilator is on and the ZRT is unpowered. When the ZRT is powered open, the damper opens and the EvacMAX™...

  • Page 37: Maintenance

    Residential HRV/ERV Note: The light will be solid when any accessories are attached or controlling the HRV/ERV. To avoid this, disconnect the Accessories Terminal Block. Locate the 4 ports on the door of the HRV/ERV and remove the plugs. Refer to the drawings on page 30 and connect the tubing from the pressure gauge to the respective door ports for the indoor air and exhaust air connections.

  • Page 38: General Maintenance

    With door removed or lifted up, remove the filters. Follow the cleaning schedule and procedure for your unit’s filter type. See the table below to determine the filter that comes standard with your unit and what replacement filter options are available from Aldes. FILTER TYPE MERV 6...

  • Page 39: Replacement Filters

    Plug the unit into its power source. Replacement Filters Part Number Filter Type Applicable Models Quantity 612409 MERV 6* H/E95, H/E110, H120, H/E150 683958 MERV 6* H/E190 (612408 units made before oct 2018) 683956 Carbon H/E190 (612262 units made before oct 2018) 612264...

  • Page 40: Troubleshooting

    Residential HRV/ERV TROUBLESHOOTING Symptom Possible Causes Solution • Unit is not plugged in • Make sure unit is plugged in HRV does not power up (indicator light on • No power to outlet • Test outlet with another device • Defective fuse the unit is not lit up) • HRV control board may be defective • Wall control is set to OFF.
  • Page 41 Residential HRV/ERV • Dehumidistat wall control is set too • Increase setpoint of dehumidistat. Indoor air is too dry • Operate HRV at low speed. (note: an HRV is not a dehumidifier, • HRV operating speed is too high • Call a contractor to balance the HRV airflows • Improperly balanced HRV • Add moisture to air with a humidifier however by...

  • Page 42: Warranty

    If a part is proved defective, it will be replaced with another part or repaired according to the company’s assessment. Before returning a defective product for repair, contact Aldes customer service to obtain a Return Materials Authorization (RMA). Send the defective part postage paid to the address...
  • Page 43 Residential HRV/ERV Date of Purchase ______________________________ Retailer ______________________________________ *Keep receipt as proof of purchase MAINTENANCE PERFORMED DATE...
  • Page 44 American ALDES Ventilation Corporation 4521 19th St. Ct. E. Suite 104 Bradenton, FL 34203 1-800-255-7749 www.aldes.us Aldes Canada 100 Rue Carter Saint-Leonard d’Aston, QC J0C 1M0 1-800-262-0916 www.aldes.ca © 2019 ALDES Canada. Reproduction or distribution, in whole or in part, of this document, in any form or by any means,...
