Spectrum D3.1 eMTA Quick Installation Guide
You can mount the Spectrum D3.1 eMTA on a wall using the 2 mounting brackets

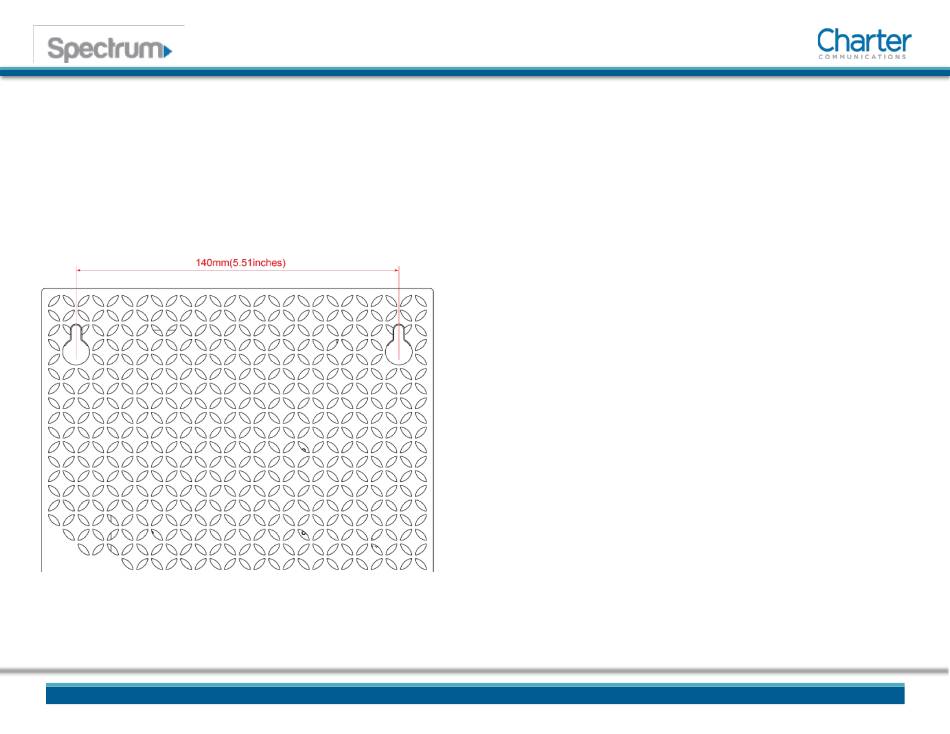

on the side of the device. Two round or pan head screws are recommended. See
the figure below for measurements.

To mount the device on a wall:

1. Install the 2 screws horizontally on the wall 140 mm (5.51 inches) apart.
•
LED BEHAVIOR
Note: The screws should protrude from the wall so you can fit the device
between the head of the screws and the wall. If you install the screws in
drywall, use hollow wall anchors to ensure the unit does not pull away from
the wall due to prolonged strain from the cable and power connectors.
2. Mount the device on the wall
NOTE to CATV SYSTEM INSTALLER:
This reminder is provided to call the CATV systems installer's attention to section 820-93 of
the National Electric Code, which provides guidelines for proper grounding and in
particular, specify that the Coaxial cable shield shall be connected to grounding system of
the building, as close to the point of cable entry as practical.
