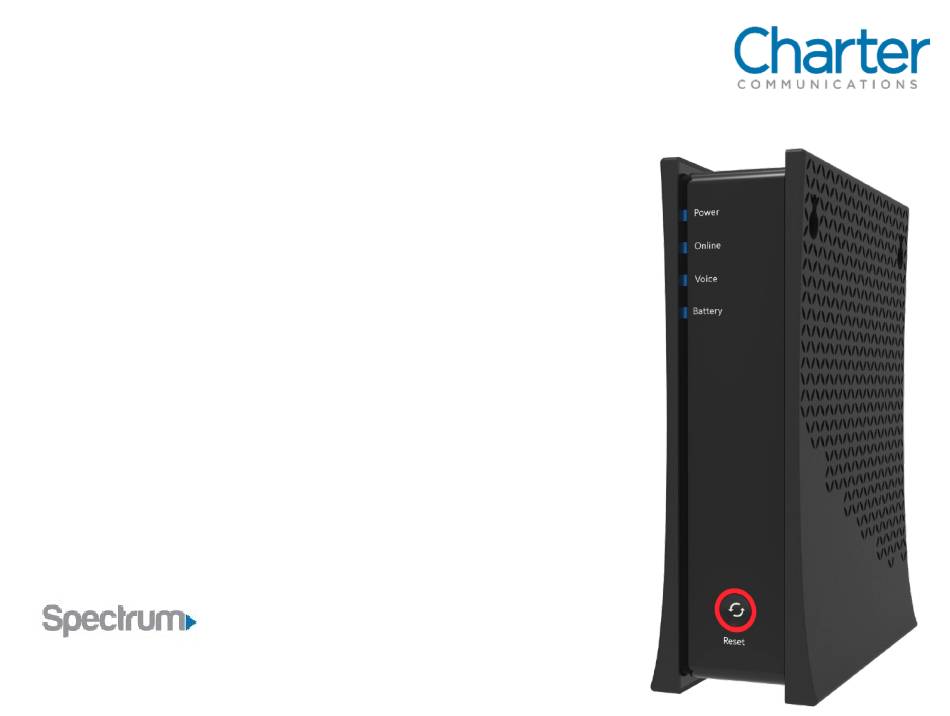

Page 1: Quick Installation Guide
Spectrum D3.1 eMTA DOCSIS 3.1 Advanced Voice Modem Quick Installation Guide... - Page 2 Spectrum D3.1 eMTA Quick Installation Guide • Locate the RF (coaxial) cable connector on the wall. Verify the power outlet ✓ ✓ SAFETY NOTICES is working and is wired correctly. Place your cable modem within a proper Device Grounding: Install the cable modem to include grounding the coaxial cable distance from the outlet.
- Page 3 Spectrum D3.1 eMTA Quick Installation Guide Power: Use to connect to the power adapter. Plug the other end into the wall power outlet.
- Page 4 Spectrum D3.1 eMTA Quick Installation Guide • • UNDERSTANDING DEVICE CONNECTIONS INSTALLATION DIAGRAM (Cont.) Analog Phones (up to 2) RJ-11 Cable/RF Connect a PC or Ethernet enabled device ( wireless switch or router). A PC should be connected for initial device installation and configuration.
- Page 5 Spectrum D3.1 eMTA Quick Installation Guide FRONT PANEL: Reset: Use to reset the device settings. When the Reset button icon, and the surrounding ring are illuminated, press and hold the button for 4 seconds to initiate a power cycle. If the lights are not lit, the device can be factory reset. Press and hold the button for 10 seconds to reset the device to factory default settings. Note: When the button and ring are lit, a power cycle must be performed prior to performing a factory reset.
- Page 6 Spectrum D3.1 eMTA Quick Installation Guide Label Size in Millimeters (mm) 9.5 +/- 0.2 3.7 +/- 0.1 34.5 +/- 0.2...
- Page 7 Spectrum D3.1 eMTA Quick Installation Guide • DEVICE WALL MOUNT INSTRUCTIONS...
- Page 8 Spectrum D3.1 eMTA Quick Installation Guide You can mount the Spectrum D3.1 eMTA on a wall using the 2 mounting brackets Note: The screws should protrude from the wall so you can fit the device on the side of the device. Two round or pan head screws are recommended. See between the head of the screws and the wall.
- Page 9 Spectrum D3.1 eMTA Quick Installation Guide COLOR DESCRIPTION • Powering Up: Flashing between On Blue and Off Status Light BLUE • Normal Operation: On Blue • Network Access Denied: If receiving power, On Blue Power Illuminated WHITE • Powering Up and Fully Powered: On White Text •...
- Page 10 Spectrum D3.1 eMTA Quick Installation Guide • LED BEHAVIOR (Cont.) COLOR DESCRIPTION • Battery at 21% (of usable charge) or Higher: On Blue • Battery at 20% (of usable charge) or Lower: On Battery Status Light BLUE • Battery at 10% (of usable charge) or Lower: Flashing between On and Off •...
- Page 11 An Ethernet Device is Connected at 1000 Mbps Speeds (Gigabit Ethernet): On Orange GREEN Status Ethernet • An Ethernet Device is Connected at 10 Mbps Speeds: Off Lights ORANGE • Data is Being Passed Between the Spectrum D3.1 eMTA and the Connected Device: Flashing Green Orange...
- Page 12 Spectrum D3.1 eMTA Quick Installation Guide •...
