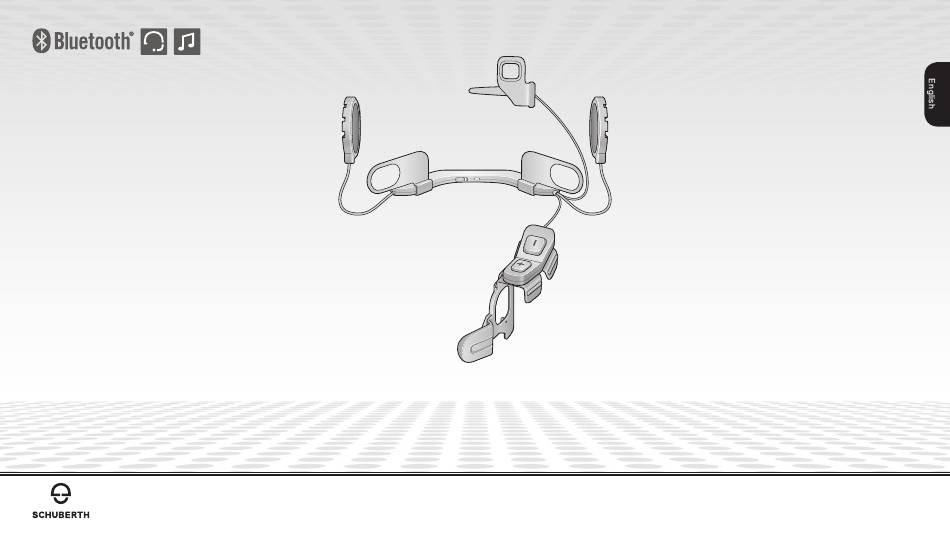

  • Page 1 Schuberth SC10UA for E1/C3PRO/C3 Basic User’s Guide www.schuberth.com...

  • Page 2: Table Of Contents

    Intercom Pairing ..........................19 PACKAGE CONTENTS..................5 8.2 Two-way Intercom ......................... 20 8.3 Three-way Intercom ........................21 INSTALLING THE SC10UA ON YOUR HELMET ..........6 8.4 Four-way Intercom ........................22 Installing the Main Unit ........................7 THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM GETTING STARTED ..................10...
  • Page 3 SC10UA 14 CONFIGURATION SETTING ................32 CERTIFICATION AND SAFETY APPROVALS ............44 • FCC Compliance Statement ......................44 14.1 Mobile Phone Pairing ........................33 14.2 Second Mobile Phone Pairing ....................... 33 • FCC RF Exposure Statement ......................45 • FCC Caution ............................45 14.3 Phone selective pairing .........................

  • Page 4: Introduction

    • Bluetooth intercom up to 1.6 kilometer (1.0 miles)* Thank you for choosing the Schuberth SC10UA for E1/C3PRO/C3 Basic. With the SC10UA, you can call handsfree on your Bluetooth • Four-way intercom mobile phone, listen to stereo music or voice instructions of GPS • Voice prompts...

  • Page 5: Package Contents

    SC10UA Key Specifications: 2 PACKAGE CONTENTS • Bluetooth 4.1 • Supporting profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote • SC10UA Headset Control Profile (AVRCP).

  • Page 6: Installing The Sc10Ua On Your Helmet

    SC10UA • Hook and Loop Fasteners for Speakers 3 INSTALLING THE SC10UA ON YOUR HELMET Status LED Main Unit • Foam Speaker Covers DC Power Charging & Firmware Upgrade Port • Speaker Pads Speakers • USB Power & Data Cable...

  • Page 7: Installing The Main Unit

    3. Insert the main unit between the external shell and the inner shell. Align its snap holders with the rear snaps. 1. Before you install the SC10UA, remove the cheek pads and ear pads of your helmet. 2. Slide in the antenna between the external shell and the rear left...
  • Page 8 SC10UA 4. Peel off each cover of the hook and loop fasteners for speakers to 5. Attach the speakers to the hook and loop fasteners for speakers expose the adhesive surface. Then, attach the fasteners to the ear inside the helmet. Then click the snaps through the snap holders.
  • Page 9 SC10UA 6. Insert the control buttons and microphone unit between the Note: external shell and the left inner shell. Click the snap through its To enhance the audio quality, you can make use of the foam speaker covers. snap holder.

  • Page 10: Getting Started

    “Hello”. To power off the headset, press and hold Please make sure to take off your SC10UA-installed helmet while charging. The the (+) Button and the (-) Button at the same time for 3 seconds while headset automatically turns off during charging.

  • Page 11: Checking The Battery Level

    SC10UA 4.4 Checking the Battery Level 4.5 Volume Adjustment You can easily adjust the volume by tapping the (+) Button or the (-) 4.4.1 LED Indicator Button. You will hear a beep when the volume reaches the maximum or When the headset is powering on, the red LED flashes rapidly indicating minimum level.

  • Page 12: Softwares

    User’s Guide and the Quick Start Guide. Pair your phone with your when they are within range. You will hear a high toned single beep and SC10UA headset (please refer to section 5.1, “Mobile Phone Pairing - a voice prompt whenever the headset reconnects to the paired device: Mobile Phone, Bluetooth Stereo Device”...

  • Page 13: Mobile Phone Pairing - Mobile Phone, Bluetooth Stereo Device

    5. The mobile phone confirms that the pairing has completed and Note: the SC10UA is ready to use. You will hear a voice prompt, “Your 1. If a Bluetooth connection between the headset and a mobile phone is disconnected, press the (+) Button for 3 seconds until you hear a high tone headset is paired”.

  • Page 14: Advanced Selective Pairing - A2Dp Stereo Or Handsfree

    3. The Sena SR10 is a Bluetooth two-way radio adapter for group communication, the SC10UA. To clear the pairing list on the SC10UA, please do a factory and uses Hands-Free Profile. The incoming audio from the two-way radio via...

  • Page 15: Mobile Phone, Gps, Sr10

    3. Search for Bluetooth devices on your smartphone. Select the call. SC10UA in the list of devices detected on your phone. 2. You can also answer the incoming call by loudly speaking any word 4. Enter 0000 for the PIN. Some mobile phones may not ask for the of your choice if Voice Activated Phone Answering (VOX Phone) is PIN.

  • Page 16: Speed Dialing

    “Cancel”, and tap the (-) Button. If you do not press any button within 15 seconds, the SC10UA will exit the voice speed dial menu and go back to stand- 6.2 Speed Dialing by mode.

  • Page 17: Gps Navigation

    6.3 GPS Navigation 7 STEREO MUSIC If you pair a Bluetooth GPS to the SC10UA as described in section 5.2, “Second Mobile Phone Pairing - Second Mobile Phone, GPS, and SR10” , you can listen to GPS instructions wirelessly. Tap the (+) Button or the (-) Button to adjust volume.

  • Page 18: Intercom

    SC10UA 7.2 Music Sharing 8 INTERCOM You can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation (please refer to section 8.2, “Two-way Intercom” ). When you terminate music sharing, To enter the intercom pairing mode, call intercom friends, or start group you can go back to the intercom conversation.

  • Page 19: Intercom Pairing

    Bluetooth intercom conversation. return to stand-by mode. 1. Turn on the two SC10UA headsets (A and B) that you would like to pair with each other. 2. Press and hold the (-) Button for 1 second to enter the intercom menu.

  • Page 20: Two-Way Intercom

    Conversation enter the intercom menu. Tap the (-) Button once to end intercom with The SC10UA can be paired with all other Sena headset models such as the first intercom friend , tap the (-) Button twice to end intercom the 20S, SMH10 and the SMH5 for intercom conversation.

  • Page 21: Three-Way Intercom

    You (A) can have a three-way conference intercom with two other may start an intercom call with you (A). SC10UA friends (B & C) by establishing two intercom connections simultaneously. While a three-way conference intercom is in progress, mobile phone connection of all three participants is temporarily disconnected.

  • Page 22: Four-Way Intercom

    SC10UA 4. Now you (A) and two SC10UA intercom friends (B & C) are having 8.4 Four-way Intercom a three-way conference intercom. 8.4.1 Starting Four-way Intercom You can have four-way conference intercom with three other SC10UA users by adding one more intercom participant to the three-way intercom.

  • Page 23: Three-Way Conference Phone Call With Intercom Participant

    SC10UA 2. Tap or double tap the (-) Button within the intercom menu to 9 THREE-WAY CONFERENCE PHONE disconnect the intercom connection with one of the two intercom friends accordingly. However, when you disconnect the second CALL WITH INTERCOM PARTICIPANT...

  • Page 24: Group Intercom

    3. To terminate Group Intercom, press the (-) Button for 3 seconds during Group Intercom. You will hear a voice prompt, “Group intercom terminated”. Note: Group Intercom supports SC10UA, 10Upad, 10U, 10C, 10R, 10S, 20S, and Tufftalk only. Other headsets will be excluded from Group Intercom.

  • Page 25: Universal Intercom

    SC10UA 1. If a non-Sena headset does not support a multipoint connection, 11 UNIVERSAL INTERCOM it cannot use a phone call connection while using the Universal Intercom. 2. As for Sena headsets, the Universal Intercom affects the multipoint You can have an intercom conversation with non-Sena Bluetooth connection.

  • Page 26: Universal Intercom Pairing

    (-) Button to begin an intercom conversation with the first intercom friend, double tap with the second intercom 1. Turn on the SC10UA and a non-Sena Bluetooth headset that you friend, and triple tap with the third intercom friend.

  • Page 27: Three-Way Universal Intercom

    1. You (A) need to be paired with a non-Sena Bluetooth headset (B) and another SC10UA headset (C) for the three-way conference intercom. 3. The other SC10UA (C) may join the intercom by making an intercom call to you (A).

  • Page 28: Four-Way Universal Intercom

    You may have a couple of other Four-way Universal Intercom configurations, 1) your headset (A), a non-Sena Bluetooth headset (B), another SC10UA (C), and a non-Sena Bluetooth headset (D) , 2) your headset (A), a non-Sena Bluetooth headset (B), and two other SC10UA 5.
  • Page 29 4. Now two SC10UA headsets (A & C) and two non-Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom. 2. The other SC10UA (C) may join the intercom by making an intercom call to you (A). You may disconnect a four-way Universal Intercom using the same way as you do in a normal four-way intercom.

  • Page 30: Fm Radio

    SC10UA 11.4.2 Four-way Universal Intercom Case 2 12 FM RADIO Three SC10UA headsets (A, C and D) and one non-Sena Bluetooth headset (B). The procedure is the same as case 1 described in section 11.4.1 . 12.1 FM Radio On and Off To turn on the FM radio, press the (-) Button for 5 seconds until you hear a mid-toned double beep sound.

  • Page 31: Region Selection

    1. You can save FM stations to presets before using FM radio. Connect the SC10UA to your PC and open the Device Manager. It allows you to save up to 10 FM station frequency presets on the SC10UA settings menu. You may do The SC10UA operates in the following order of priority: the same operation by using the Smartphone App.

  • Page 32: Configuration Setting

    3. You can enable/disable a feature or execute a command by tapping the (-) Button. 4. If no button is pressed within 10 seconds, the SC10UA will exit the configuration and go back to stand-by mode. 5. If you want to exit the configuration immediately, tap the (+) Button until you hear a voice prompt, “Exit configuration”, and tap the...

  • Page 33: Mobile Phone Pairing

    SC10UA 14.1 Mobile Phone Pairing Phone pairing Voice Prompt “Phone pairing” Second mobile phone pairing Phone selective pairing Factory Default Media selective pairing To go into mobile phone pairing mode, tap the (+) Button until you hear the voice prompt, “Phone pairing”. Please refer to section 5.1, “Mobile Speed dial Phone Pairing - Mobile Phone, Bluetooth Stereo Device”...

  • Page 34: Phone Selective Pairing

    If you tap the (+) Button, you can exit from the media selective voice prompt, “Cancel”. If no button is pressed within 1 minute, pairing mode. the SC10UA will exit the configuration menu and go back to stand- by mode.

  • Page 35: Enabling/Disabling Audio Boost

    2. You can also assign phone numbers for speed dialing by using the Device Factory Default Enable Manager software or the Smartphone App. Please visit oem.sena.com/ schuberth/ for more information. Enable/Disable Tap the (-) Button If this feature is enabled, you can answer incoming calls by voice. When 14.6 Enabling/Disabling Audio Boost...

  • Page 36: Enabling/Disabling Voice Activated Intercom

    In this case, you have to tap the (-) Button within the intercom menu to restart the intercom. This is to prevent repeated unintentional intercom connections by strong wind noise. After rebooting the SC10UA, you can start intercom by voice again.

  • Page 37: Setting Intercom Vox Sensitivity

    SC10UA 14.10 Setting Intercom VOX Sensitivity 14.11 Enabling/Disabling Voice Prompts Voice Prompt “VOX sensitivity” Voice Prompt “Voice prompt” Factory Default Medium Factory Default Enable Execute Tap the (-) Button Enable/Disable Tap the (-) Button Tap the (-) Button You can disable voice prompts by configuration setting, but the...

  • Page 38: Enabling/Disabling Sidetone

    Note: If you use your SC10UA with the Bluetooth Audio Pack for GoPro, you can enable or disable this feature only during Normal Audio Recording Mode. This feature is automatically disabled while in Ultra HD (UHD) Audio Mode.

  • Page 39: Universal Intercom Pairing

    Execute Tap the (-) Button To restore factory default settings on the SC10UA, tap the (+) Button until you hear a voice prompt, “Factory reset”, and tap the (-) Button to confirm. The SC10UA powers off with a voice prompt, “Headset...
  • Page 40 SC10UA Tap (+) Button Tap (-) Button Tap (+) Button Tap (-) Button Phone Pairing None Remote Control Pairing Execute Second Mobile Phone Pairing None Universal Intercom Pairing Execute Phone Selective Pairing None Factory Reset Execute Media Selective Pairing None...

  • Page 41: Remote Control

    SC10UA 15 REMOTE CONTROL 16 FIRMWARE UPGRADE You can remotely control the SC10UA via Bluetooth using the Remote The SC10UA supports firmware upgrades. You can update the firmware Control (sold separately). This eliminates the need to take off your hand using the Device Manager (please refer to section 4.6.1, “Device...

  • Page 42: Troubleshooting

    17.3 Fault Reset 17 TROUBLESHOOTING When the SC10UA is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button as shown in the picture below. Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure.

  • Page 43: Quick Operation Reference

    SC10UA Type Function Button Command Beep 18 QUICK OPERATION REFERENCE Press the (-) Button for 1 second Intercom pairing Mid-tone Tap the (+) Button Red flashing single beep Type Function Button Command Beep Tap the (+) Button of any one of the two headsets...

  • Page 44: Certification And Safety Approvals

    SC10UA CERTIFICATION AND SAFETY APPROVALS Type Function Button Command Beep Press the (-) Button for Mid-tone FM radio on/off FCC Compliance Statement 5 seconds double beeps This device complies with part 15 of the FCC rules. Operation is subject Press the (+) Button for...

  • Page 45: Fcc Rf Exposure Statement

    Directive (2014/53/EU). Hereby, Sena declares that the radio • Consult the dealer or an experienced radio/TV technician for help equipment type 10U for Schuberth is in compliance with Directive FCC RF Exposure Statement 2014/53/EU. For further information, please consult oem.sena.com/ This equipment complies with FCC radiation exposure limits set forth schuberth/.

  • Page 46: Bluetooth License

    SC10UA SAFETY INFORMATION Bluetooth License The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Please ensure that the product is properly used by observing the Inc. and any use of such marks by Sena is under license. Other warnings and cautions below to prevent any risk and/or damage to trademarks and trade names are those of their respective owners.

  • Page 47: Product Use

    SC10UA • When using the product, be certain to conform to laws regarding the Product Use use of communications devices while riding. • In some regions, it is prohibited by law to ride motorcycles while • Do not put the product where it may hamper the rider’s vision or wearing headsets or earbuds.

  • Page 48: Product Warranty And Disclaimer

    Here, product warranty extends to the product only. battery, or may cause temporary non-operation. Do not use the Schuberth will not be liable for any loss, damage of human life, or loss product in sub-zero temperature, because it may cause serious of property which may result from using the product beyond defective reduction of the battery performance.
  • Page 49 1. You agree that you, your descendants, legal proxies, successors, or and suppliers, sole sellers of Schuberth and Sena (collectively transferees will not raise permanent volitional request for any suit, referred to as “the company”) recommend that, before using the...

  • Page 50: Warranty Exclusions

    • When you use the product, use good judgment; never use it may have occurred while you use the product. Further, Schuberth will not be liable for any substantial damage not related to the condition, under the influence of alcohol.
  • Page 51 In addition to damages which may occur due to the use of the product, FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED Schuberth will not be liable for damages of the product which occur IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR due to the following events.

  • Page 52: Warranty Service

    In order to get a refund or replacement, you must include the whole package as it was purchased. Free-of-charge Service Schuberth will provide free-of-charge repair or replacement service for the product when product defects occur within the scope of the product warranty during the warranty period.
  • Page 53 19, Heolleung-ro 569-gil, Gangnam-gu Seoul 06376, Republic of Korea Importer in Europe: Schuberth GmbH Stegelitzer Straße 12 D-39126 Magdeburg, Germany Importer in US: Schuberth North America 33 Journey, Suite 200 Aliso Viejo, CA 92656, USA www.schuberth.com User's Guide for Firmware v1.1...
