Scope of the delivery / Lieferumfang
Assembly manual
EN
Montageanleitung
DE
S1011
The installation of this product may only be carried out by skilled personnel / specialist fitter!
Warning: Supplied plastic anchors are only suitable for solid concrete walls!
Die Montage dieses Produktes darf nur durch Fachpersonal / Fachmonteur erfolgen!
v.17.10
Achtung: Mitgelieferte Dübel sind nur für Massivbetonwände geeignet!
EN
Dear customer,
we are pleased that you have decided for a product of the brand "RICOO"
provide you with a high-quality product, it may happen that an accessory is missing or a part is damaged
during transport
. Please do not return the item in such a case, simply request replacement for the
missing or damaged part at our customer hotline . Contact details from our customer hotline are listed
below.
When contacting us, please mention the article data (listed below), article color as well as the
required spare part numbers (including the required quantity of items), as indicated in the "Scope of
delivery" section of this manual. Please keep ready your order number / order ID for our customer hotline. We
will process your request immediately
!
DE
Liebe Kundin, lieber Kunde,
wir freuen uns, dass Sie sich für ein Produkt der Marke "RICOO" entschieden haben
Bemühungen unsererseits Ihnen ein qualitativ hochwertiges Produkt zu liefern, kann es vorkommen, dass
einmal ein Zubehörteil fehlt oder ein Teil während des Transports beschädigt wird
Sie den Artikel bitte nicht zurück, sondern fordern Sie einfach Ersatz für das fehlende bzw. beschädigte Teil
bei unserer Kunden-Hotline an
. Kontaktdaten von unserer Kunden-Hotline sind auf der rechten Seite
aufgeführt.
Bitte nennen Sie bei der Kontaktaufnahme die Artikeldaten (auf der rechten Seite aufgeführt),
Artikelfarbe sowie die benötigten Teilnummern (inkl. benötigter Stückzahl), wie sie in dieser Anleitung
unter dem Punkt "Lieferumfang" angegeben sind. Halten Sie ebenfalls Ihre Bestellnummer / Order-ID für
unsere Kunden-Hotline bereit. Wir werden Ihre Anfrage umgehend bearbeiten
We recommend using a professional level.
Wir empfehlen den Einsatz einer professionelen Wasserwaage.
1
Please measure distance between VESA mounting holes.
Bitte den VESA-Lochabstand vor der Montage nachmessen.
VESA-Mounting holes
VESA-Befestigungslöcher
Vertical /
Senkrecht
Horizontal / Waagerecht
Display back
Bildschirm Rückseite
A
B
C
D
M6
5mm
Metal washer
Small spacers
S8 x 40MM
M6 x 50MM
Metallscheibe
Abstandshalter
3 pcs/Stk.
3 pcs/Stk.
3 pcs/Stk.
4 pcs/Stk.
F
G
H
M4 x 12MM
M5 x 12MM
M6 x 12MM
4 pcs/Stk.
4 pcs/Stk.
4 pcs/Stk.
Please note: The numbering on the plastic bag
!
may differ / completely missing!
!
Bitte beachten: die Durchnummerierung auf dem Plastikbeutel
kann abweichen / komplett fehlen!
. Sometimes, despite our efforts to
. Manchmal trotz aller
. In diesem Fall senden
!
Please check BEFORE installation distance between
VESA mounting holes on your display!
Bitte überprüfen Sie VOR der Montage
den VESA Lochabstand zwischen den Befestigungs-
löchern an Ihrem Bildschirm!
This wall mount supports the following distance between holes:
Diese Wandhalterung unterstützt folgende Lochabstände:
Horizontal / Waagerecht:
75mm, 100mm
Vertical / Senkrecht :
75mm, 100mm
2
Preparing front panel mounting.
E
Vorbereitung der Frontplattenaufhängung.
M5
Metal washer
Loosen the fixing screws on front
Metallscheibe
4 pcs/Stk.
panel mounting (entirely).
Lösen Sie die Fixierungsschrauben
an der Frontplattenaufnahme (komplett).
3-a
Wood stud mounting
Product data
Artikeldaten
Befestigung an der Holzbalkenwand

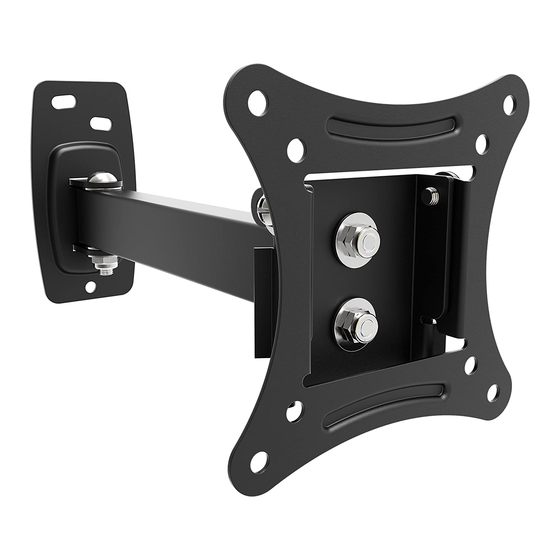

S1011
1
Customer hotline
Kunden-Hotline
E.N.Z. Engineering GmbH
Gewerbestr. 11
79364 Malterdingen
(Germany)
Stud finder
Drilling
Balkenfinder
Bohrung
5 0 mm
Tel: +49 (0) 7644-565310
Fax: +49 (0) 7644-5653199
E-Mail: support@ricoo.de
www.ricoo.eu
3-b
Solid concrete mounting
Befestigung an der Massivbetonwand
1
3 x
A
3 x
B
3 x
C
Drilling
Bohrung
5
mm
0
0 x
A
3 x
B
3 x
C
Wood stud
Holzbalken
Warning: Supplied plastic anchors are only suitable for solid concrete walls!
Achtung: Mitgelieferte Dübel sind nur für Massivbetonwände geeignet!
Concrete Wall
Betonwand
1 x
C
B
A
C
B
