Summary of Contents for kincrome K8315

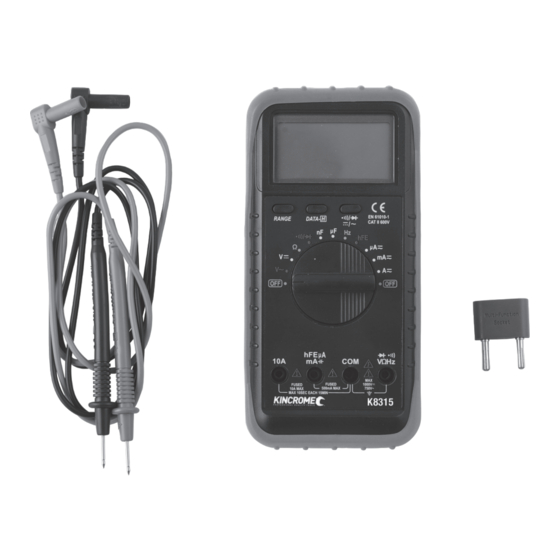

- Page 1 AUTO RANGING DIGITAL MULTIMETER CAT III AC/DC LARGE CAT II TEST LEAD DIGITAL SAFETY VOLTAGE & MONTH SAFETY CURRENT RATING DISPLAY RATING WARRANTY MEASUREMENT K8315 ED1 May 17...
- Page 2 9. “DATA-H” Button (Hold) 10. Test Leads (CAT III) 11. Multi Function Capacitance Transistor Adaptor Model No: ........................K8315 Analog Display: ......................42 segments, updates 12.5 times/sec Digital Display: ......................3999 Counts, updates 2 times/sec LCD Size: ........................65 x 37mm Polarity Indication: .....................
-
Page 3: General Safety Warnings
It has the functions of polarity indication, data hold, over range indication and automatic power-off. It can be operated easily and is an ideal instrument tool. K8315 series digital multimeter has been designed according to EN61010-1 oncoming electronic measuring instruments with an over voltage category (CAT II 600V) and Pollution degree 2. - Page 4 DIGITAL AUTO RANGING MULTIMETER 1) Work Area a. Keep the work area clean and well lit. Cluttered benches and dark areas increase the risks of electric shock, fire, and injury to persons. b. Keep bystanders, children, and visitors away while operating the tool. Distractions are able to result in the loss of control of the tool.
- Page 5 Double Insulated 6) Multimeters Function Table Ω Model K8315 8) Multimeter Product Specifications °C±5 °C less than 80% RH. The Kincrome K8315 Auto Ranging Multimeters accuracy is guranteed for 12 months, 23 DC Voltage (Auto Ranging) Range Resolution Accuracy 400mV 0.1mV ±...
- Page 6 DIGITAL AUTO RANGING MULTIMETER AC Voltage (Auto Ranging) Range Resolution Accuracy ± (1.2% of rdg + 5dgts) 400mV 0.1mV ± (1.2% of rdg + 3dgts) 10mV 400V 100mV ± (1.2% of rdg + 8dgts) 600V Input Impedance: 10MΩ Frequency Range: 40Hz~400Hz Maximum Input Voltage: 600V DC/AC rms Max Input Voltage: 600V AC rms Transistor hFE Test...
- Page 7 DIGITAL AUTO RANGING MULTIMETER AC Current Range Resolution Accuracy 400µA 0.1µA 4000µA 1µA ± (1.0% of rdg + 5dgts) 40mA 10µA 400mA 100µA ± (1.5% of rdg + 7dgts) 10mA Caution: For measurements greater than 5A, 10 seconds is the maximum probing time. You must wait 15 minutes before reusing the multimeter.
- Page 8 DIGITAL AUTO RANGING MULTIMETER Diode and Continuity Range Introduction Remark The approximate forward voltage drop Open circuit voltage: approx 1.5V will be displayed The built-in buzzer will sound if Open circuit voltage: approx 0.5V the resistance is less than about Ω.
- Page 9 DIGITAL AUTO RANGING MULTIMETER Measuring Current WARNING! To avoid damage to the meter, use the proper terminals, function and range for your measurement. Connect the BLACK test lead (10) to the “COM” jack (6). If the current to be measured is less than 200mA, connect the RED test lead (10) to the “mA”...
- Page 10 DIGITAL AUTO RANGING MULTIMETER Diode Test WARNING! To avoid electrical shock and/or damage to the instrument, disconnect circuit power and discharge all high- voltage capacitors before testing diodes. Connect the BLACK test lead (10) to the “COM” Jack (6) and the RED test lead (10) to the “VΩ” jack (7). Note: The polarity of the RED test lead (10) is positive “+”.
-
Page 11: Battery Replacement
10) Care, Maintenance & Storage Auto Power Off If you dont operate the Kincrome K8315 Multimeter for about 15 minutes, it will turn OFF automatically. To turn it on again, just roate the range switch or press a button. Note: If you press the “... - Page 12 DIGITAL AUTO RANGING MULTIMETER Notes:...
- Page 13 www.kincrome.com.au...
