Brizo MULTICHOICE R60000 Series Quick Start Manual

Rough-in body

Advertisement

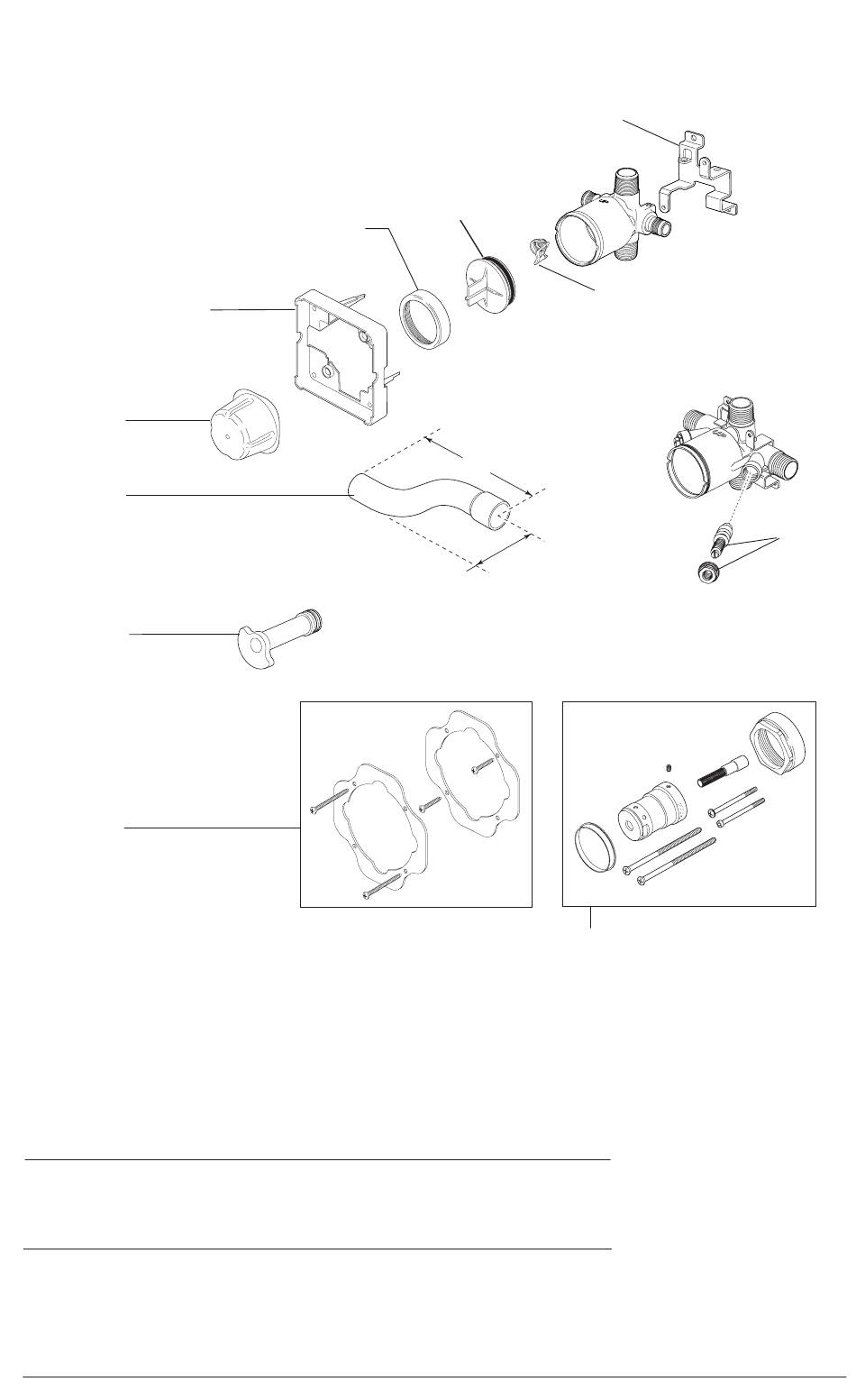

Replacement Parts

Piezas de Repuesto
Pièces de rechange
RP46075
Plasterguard
Protector de yeso
Protecteur
RP46076
Cover
Cubierta
Couvercle
RP63988
Deepwall Copper Tubes (4)
Profundos Tubos de cobre de pared (4)
Profondes tubes en cuivre mur (4)
*
RP46079
Reusable Test Plug
(Sold as RP Only
)
Tapón de Prueba
Reutilizable (Sólo se
vende como Pieza de
Repuesto)
Bouchon d'essai
réutilisable (pièce de
rechange seulement)
RP47202
Thin Wall Mounting Kit
Soporte de montaje fino de la pared
Support mince de mur
*Used to plug one inlet side (Hot or Cold) to prevent cross flow when checking for
leaks before the cartridge is installed. Insert into the inlet, place test cap and use
the bonnet to secure in place.
*Tapaban una entrada lateral (caliente o frío) para prevenir flujo cruzado cuando
la comprobación para saber si hay escapes antes del cartucho está instalada. El
relleno en la entrada, casquillo de la prueba del lugar y utiliza el capo para
asegurar en lugar.
*Branchaient une admission latérale (chaud ou froid) pour empêcher l'écoulement
en travers quand la vérification les fuites avant la cartouche est installée.
L'insertion dans l'admission, chapeau d'essai d'endroit et emploient le capot pour
fixer en place.
77929
Rev. C
RP46078
Test Cap
Tapa de Prueba
Capuchon d'essai
RP22734
Bonnet
Capuchón
Chapeau
2"
5
RP83888
Bracket
Soporte
Support
RP46077
Screen
Filtro de malla
Tamis
3"
RP74785
Extension Kit - For use with T17T Tempassure
models only (adds 1 3/4" depth)
Kit de extensión - Sólo para uso con los
modelos T17T Tempassure
(se agrega 1 3/4 pulgada de profundidad)
Trousse de rallonge - Pour utilisation avec les
modèles T17T Tempassure
(ajoute une profondeur de 1 3/4 po)
RP50366
Stop
Tope
Butée
®
®
seulement.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTICHOICE R60000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Brizo MULTICHOICE R60000 Series

  • Page 1 Replacement Parts Piezas de Repuesto Pièces de rechange RP83888 Bracket Soporte Support RP46078 Test Cap Tapa de Prueba Capuchon d’essai RP22734 Bonnet Capuchón Chapeau RP46077 Screen RP46075 Filtro de malla Plasterguard Tamis Protector de yeso Protecteur RP46076 Cover Cubierta 3" Couvercle RP63988 Deepwall Copper Tubes (4)
  • Page 2 Componentes electrónicos y pilas (si aplicable) La prueba de compra (recibo original) del comprador original debe ser dis- Todas las piezas (salvo las pilas), si hay, de esta llave de agua Brizo están ® ponible a Delta Faucet Company para todos los reclamos a menos que el com- garantizadas al consumidor comprador original de estar libres de defectos en prador haya registrado el producto con Delta Faucet Company.
  • Page 3 1-877-345- BRIZO. Deje esta hoja de instrucciones como ref- erencia para el propietario/usuario. AVIS À L’INSTALLATEUR : ATTENTION! – En...
  • Page 4 DIVERTER Distance (1) from the stringer (2) The figure illustrates the diverter SHUT OFF WATER SUPPLIES. to the front of the plasterguard is and MultiChoice installed in the Consider the type and thickness of 2 3/4" ± 1/4" (70 mm ± 6 mm). same finished wall.
  • Page 5 Copper Tubing Tubería de Cobre Cuivre Iron Pipe Hierro Remove bonnet (1) and test Connect valve body to water supplies damage screen. Be sure cap (2) before soldering. using the proper fittings for your valve stops (4) are removed from Leave screen (3) installed.
  • Page 6 8" - 18" (203 mm-457 mm) 8 po - 18 po Connect top outlet (1) to shower pipe with PRESSURE TESTING & FLUSHING proper fittings. Connect bottom outlet (2) to THE INSTALLATION tub spout pipe with proper fittings. Pipe (3) Prior to testing, remove cover (1), bonnet (2) and cap (3).
