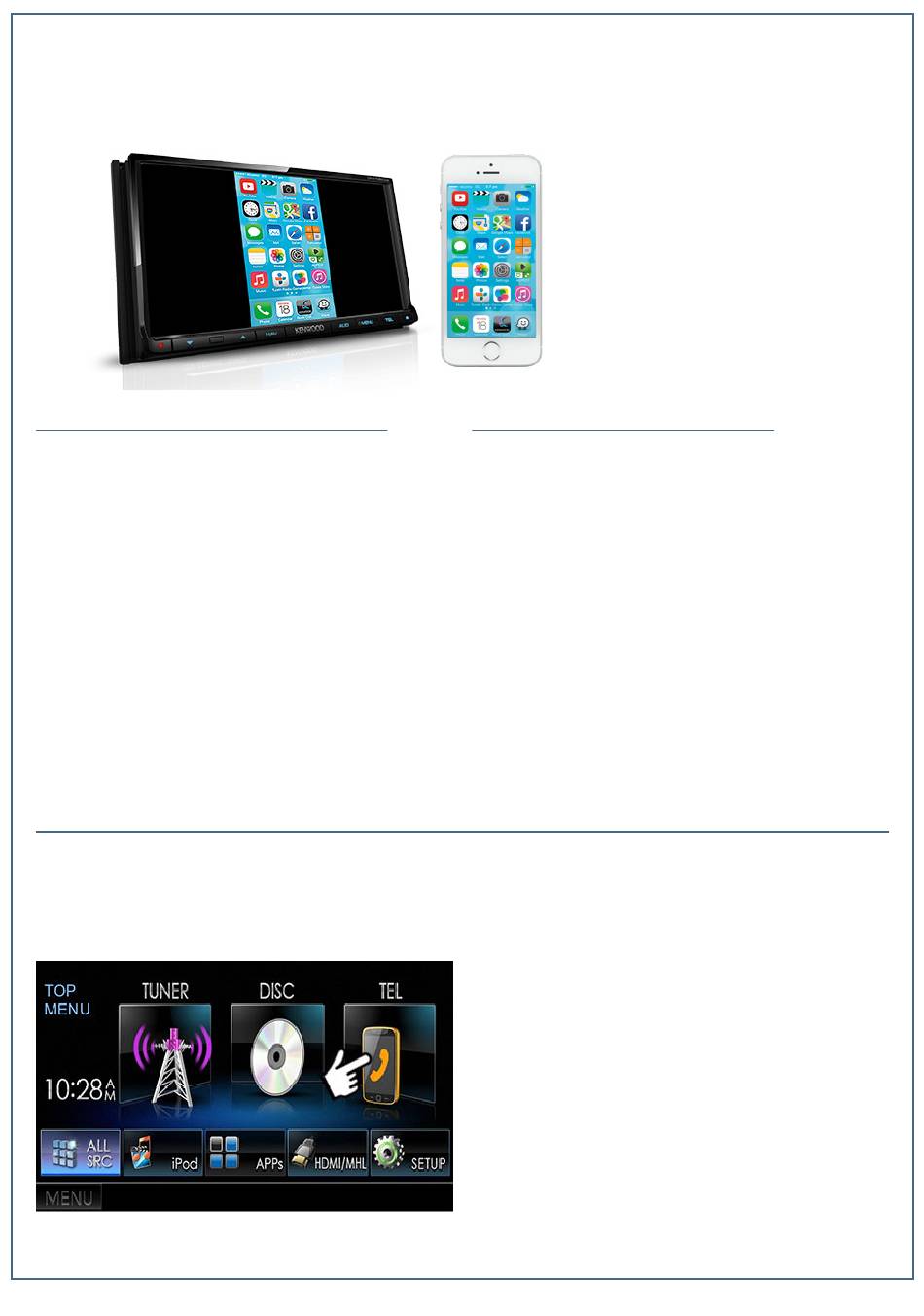

Kenwood HDMI Lead Kit (KW-PACK2)

for Kenwood Multimedia Systems

Compatible Kenwood Systems

DDX7025BT, DDX7015DAB, DDX5025DAB,

DDX5015BT, DDX5015DAB

Step 1. IMPORTANT CHECK FIRST!

1. Ensure that you are running the latest software version for your Apple device.

2. The Kenwood systems handbrake cable must be connected and the handbrake must be applied.

Before setting up & connecting the MHL lead to the Kenwood system please ensure that your software is up-to-date.

For more information on software updates and where to download please visit:

http://www.kenwood.com/cs/ce

Step 2.

Bluetooth - How to pair your Apple device to the Kenwood system

NB: If you have already paired the device please go to Step 2.

1. Select the [TEL] icon

Page 1

Compatible Apple Devices

Apple devices with Lightning connection and Bluetooth

capabilities

2. On the Apple device select:

• [SETTINGS]

• [BLUETOOTH]

(Ensure Bluetooth is switched on and stay on this screen)

www.kenwood-electronics.co.uk/hdmi

Set-up your

HDMI lead kit to

your Kenwood

Multimedia Systems

Version: 0217HDMI-DDX

Page 1 2. The Kenwood systems handbrake cable must be connected and the handbrake must be applied. Before setting up & connecting the MHL lead to the Kenwood system please ensure that your software is up-to-date. For more information on software updates and where to download please visit: http://www.kenwood.com/cs/ce...
Page 2 4. Select [ENTER] by “Paired Device List” 5. Select [SEARCH] 6. Select your device when the system has completed NB: If the Kenwood system does not find the Apple searching device straight away search again 7. Select [PAIR] on the Kenwood system and [OK] on 8.
Page 3 Setting Up the Multimedia System 1. Select [MENU] then [ALL SRC] icon 2. Select the [ARROW DOWN] icon 3. Select the [STANDBY] icon 4. Select [MENU] 5. Select the [SETUP] icon 6. Select [SYSTEM] and “APP SETUP” [ENTER] Page 3 www.kenwood-electronics.co.uk/hdmi Version: 0217HDMI-DDX...
Page 4 9. Select [Android/Other] 11. Select [HDMI + BT] 10. Then press [NEXT] 12. Then press [NEXT] 13. Select the name of your Apple device. 15. Check all settings are correct and press [DONE] 14. Then press [NEXT] Page 4 www.kenwood-electronics.co.uk/hdmi Version: 0217HDMI-DDX...
Page 5 16. Connect your Apple device with the Kenwood system (Ensure that your Apple device is unlocked and displaying a home screen). Rear of System Connection: • A. Connect the HDMI lead into the HDMI rear socket • 2. Connect leads to Apple HDMI to Lightning adaptor •...
