OBERON 1030-00 Installation Instructions

Download this manual

Enlarged version

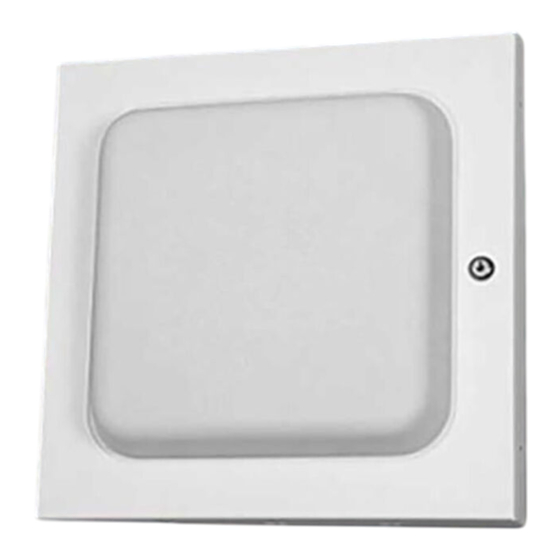

MODEL 1030-00

Installation Instructions

**** WARNING ****

Please thoroughly read the product warning below

before installation to provide for a safe work

environment.

1. This enclosure has a maximum operating ambient of 55º C (131º F), the temperature within the enclosure may not

exceed this temperature, depending on power dissipation within enclosure.

2. A minimum air clearance of 1" between the housing of the access point and the enclosure side walls must be

maintained for the safe operation of the equipment.

3. This product is intended to be installed by trained personnel.

4. This product is to be repaired by personnel trained by the manufacturer or returned to the manufacturer for repair or

replacement.

5. Maximum weight to be installed in the unit is 25 lbs.

6. All knockouts, openings, and holes shall be sealed with a plug constructed of metal, or a non-metal material that

complies with UL 2043 or UL 1479.

7. All unused mounting holes should be sealed with tape or other material that complies with UL 1479.

Do you have a question about the 1030-00 and is the answer not in the manual?

Page 1: Installation Instructions
MODEL 1030-00 Installation Instructions **** WARNING **** Please thoroughly read the product warning below before installation to provide for a safe work environment. 1. This enclosure has a maximum operating ambient of 55º C (131º F), the temperature within the enclosure may not exceed this temperature, depending on power dissipation within enclosure.
Page 2 Model Number 1030-00 Assembly Components: Step 3 – Decide the best location from which to - Wall / Ceiling Enclosure, Model 1030-00 assembly – 1 each bring in the Ethernet cable. There are two (2) ¾” - #6-32 Screws – 4 each trade size knockouts located against the back - #8-32 Screws –...
