OBERON 1030-00 Installation Instructions

Step 10 – From the back side of the assembly,
install the eight #8-32 screws to secure the
flange to the enclosure
Step 11 – Remove the ceiling tile and insert
the assembly in the ceiling grid.
**IMPORTANT** - This is an important
safety feature that could prevent human
injury or damage to the access point
should the unit become dislodged from the
ceiling.
Step 12 – After the enclosure has been placed
in the ceiling tile grid use minimum 12-gauge
grid wire to attach the enclosure assembly to
the ceiling. Attach one end of the wire to the
openings along the center of each side and
the other end to a permanent structure within
the ceiling such as a ceiling joist
(ref. Figure 5).
Step 6 – Bring in the Ethernet cable and
attach to the access point.
Step 7 – Attach the access point to the
previously installed access point mounting
plate, close and lock the door. Installation is
now complete.

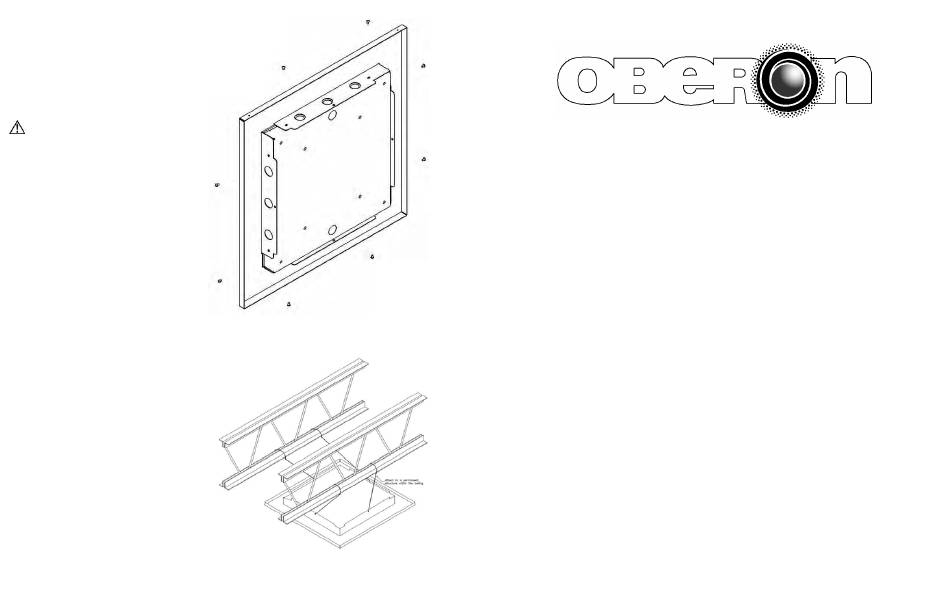

Figure 4 – Attaching the enclosure to the flange
Figure 5 - Grid Wire Installation

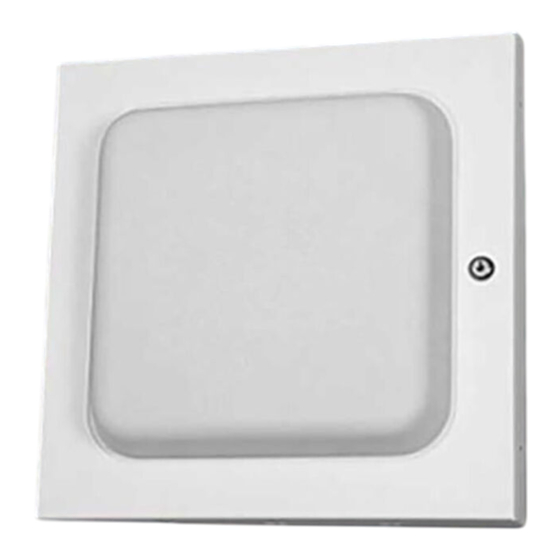

MODEL 1030-00
Installation Instructions
**** WARNING ****
Please thoroughly read the product warning
below before installation to provide for a safe
work environment.
1. When ceiling mounting using optional flange, support guide wires must
be used for the installation of this product. Acoustical Ceiling grid work is
not designed to support the weight of the enclosure. Two holes placed in
the back of the enclosure are provided for the installation of eye bolts.
Supporting guide wires should be attached to these eye bolts.
2. When closing the enclosure access door, be sure that the cam lock is
completely engaged to prevent the access door from accidentally
swinging open.
3. When opening the enclosure door, be sure to support the door to prevent
the door from accidentally falling open.
