Adventure Kings Gazebo Set-up Manual
STEP 4:
LOCKING THE GAZEBO'S STRUCTURE AND SECURING THE COVER
With the cover successfully installed to the Gazebo's frame, finish extending the frame out horizontally.

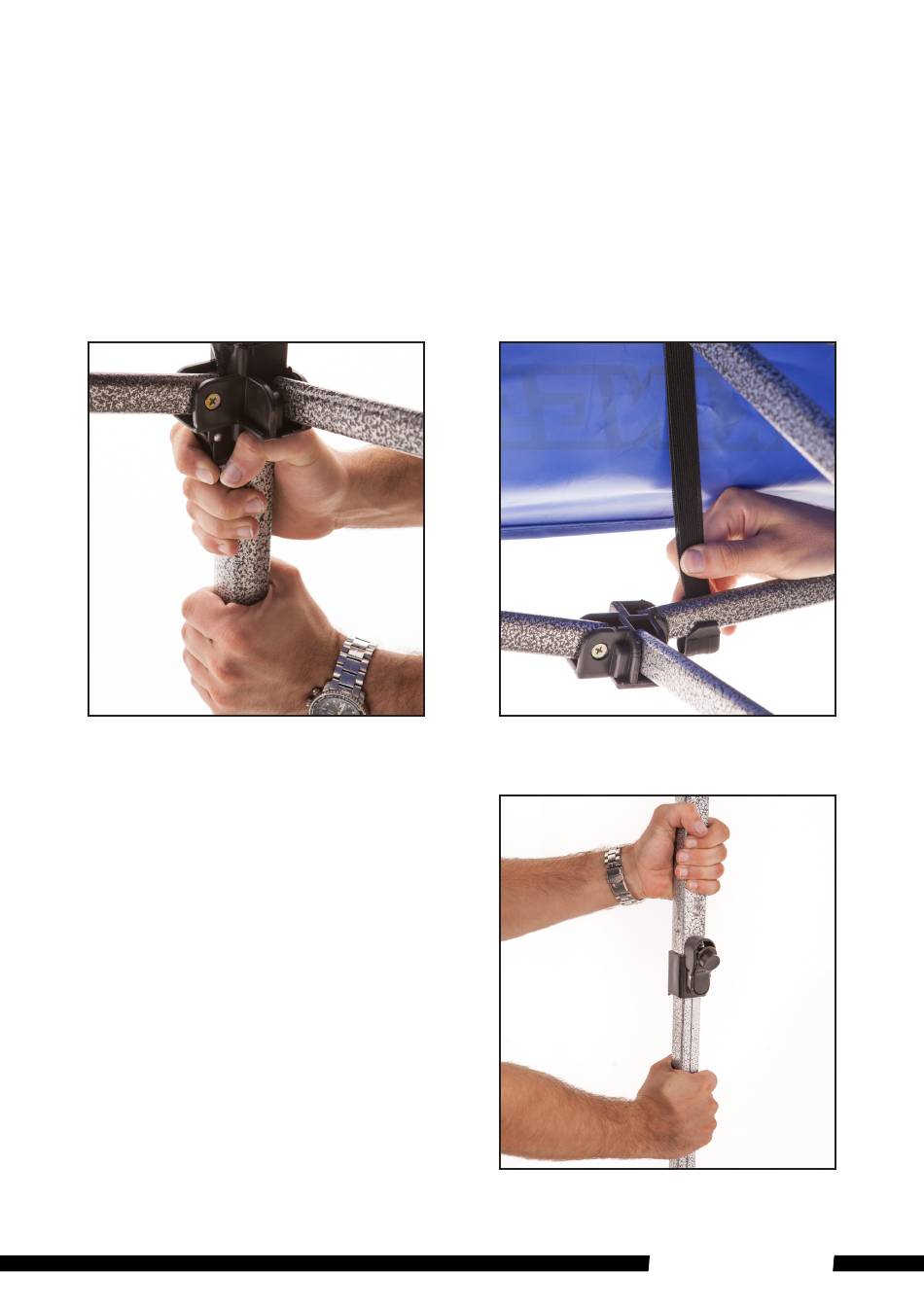

Then, grasp the sliding bracket (Figure 4) and slide the bracket upwards so that it locks into position in each
of the four corners.
After each corner of the Gazebo is locked into place, secure the four webbing straps (Figure 5) to the frame.
The Gazebo's cover should fit firmly over the frame ensuring water will run evenly off the Gazebo.
STEP 5:
ADJUSTING THE GAZEBO'S HEIGHT
The Gazebo has three different height settings to
choose from. To adjust the Gazebo's height, press in
the leg lock and slide the leg to the desired height.
Make sure that all the legs are adjusted to the same
height and that all the legs are locked into position.
FIGURE 4 FIGURE 5
FIGURE 6
Adventure Kings Gazebo 5
