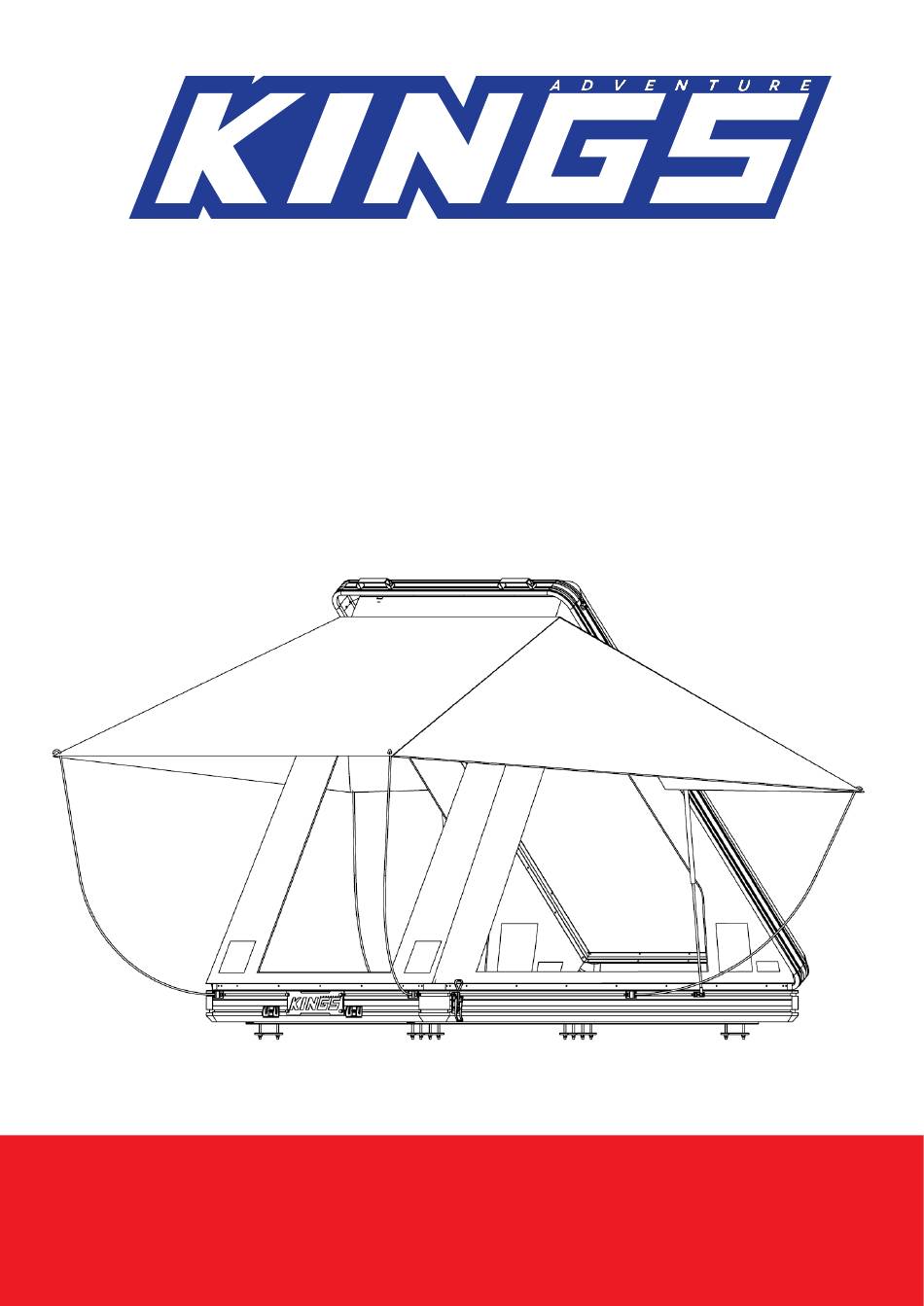

- Page 1 Grand Tourer Aluminium Rooftop Tent USER MANUAL AKTA-RTTALU_03 V1.0 PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION 2. SAFETY INFORMATION 3. COMPONENTS 4. INSTALLATION INSTRUCTIONS 5. SETUP INSTRUCTIONS 9-10 6. WARRANTY CARD... -
Page 3: Introduction
This manual covers the safety information, components, installation instructions & setup instructions of the Adventure Kings Grand Tourer Aluminium RTT. The Adventure Kings Grand Tourer Aluminium RTT is designed to be securely mounted to a vehicle roof for use as a recreational camping tent. -
Page 4: Components
3. COMPONENTS The following shows what components are included in the Grand Tourer Aluminium RTT. 1. Aluminium RTT x 1 2. Telescopic Ladder x 1 3. Mounting Plates x 6 4. Mounting Fasteners x 12 (set of M8 bolt and Nyloc nut) 5. -
Page 6: Installation Instructions
4. INSTALLATION INSTRUCTIONS The following installation instructions refer to the fitting for the accessories and mounting the Grand Tourer Aluminium RTT to a vehicle roof rack. All mounting fasteners supplied should be used. DO NOT lift the Aluminium RTT by yourself. Use a team of people or a forklift. STEP 1 Un-pack the Aluminium RTT from the box. - Page 7 STEP 4 Installing the awning pole bracket. Place the two plate nuts into the top channel of the bottom shell. Align the washer, spring washer and the M8 bolt before tightening the fasteners. See image for the orientation and the position of the bracket. STEP 5 Lift the Aluminium RTT onto the vehicle roof rack.
- Page 8 STEP 8 Ensure that the mounting bolts are aligned around the roof rack structural cross bars. (Use all 6 supplied mounting plates where applicable.) STEP 9 When satisfied with the position of Aluminium RTT slide the mounting plates over the bolts and screw on the nyloc nuts. Tighten the nyloc nuts and ensure that the bolt thread has fully come through the nyloc nut.
-
Page 9: Setup Instructions
5. SETUP INSTRUCTIONS The following instructions refer to the setup procedure for the Grand Tourer Aluminium RTT. STEP 1 Ensure that the vehicle is on level ground and the handbrake is on. STEP 2 Open the two over-centre latches and push the Aluminium RTT lid up. - Page 10 STEP 6 Climb into Aluminium RTT and place the safety pole in the allocated holder. Twist the safety pole top section anticlockwise to unlock and extend. Once extended to the required length and located in both top and bottom holders then twist the safety pole clockwise to lock extended length.
-
Page 11: Warranty Card
24 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 24 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
