3m x 3m Gazebo

SET-UP MANUAL

Table of Contents

Need help?

Do you have a question about the Gazebo and is the answer not in the manual?

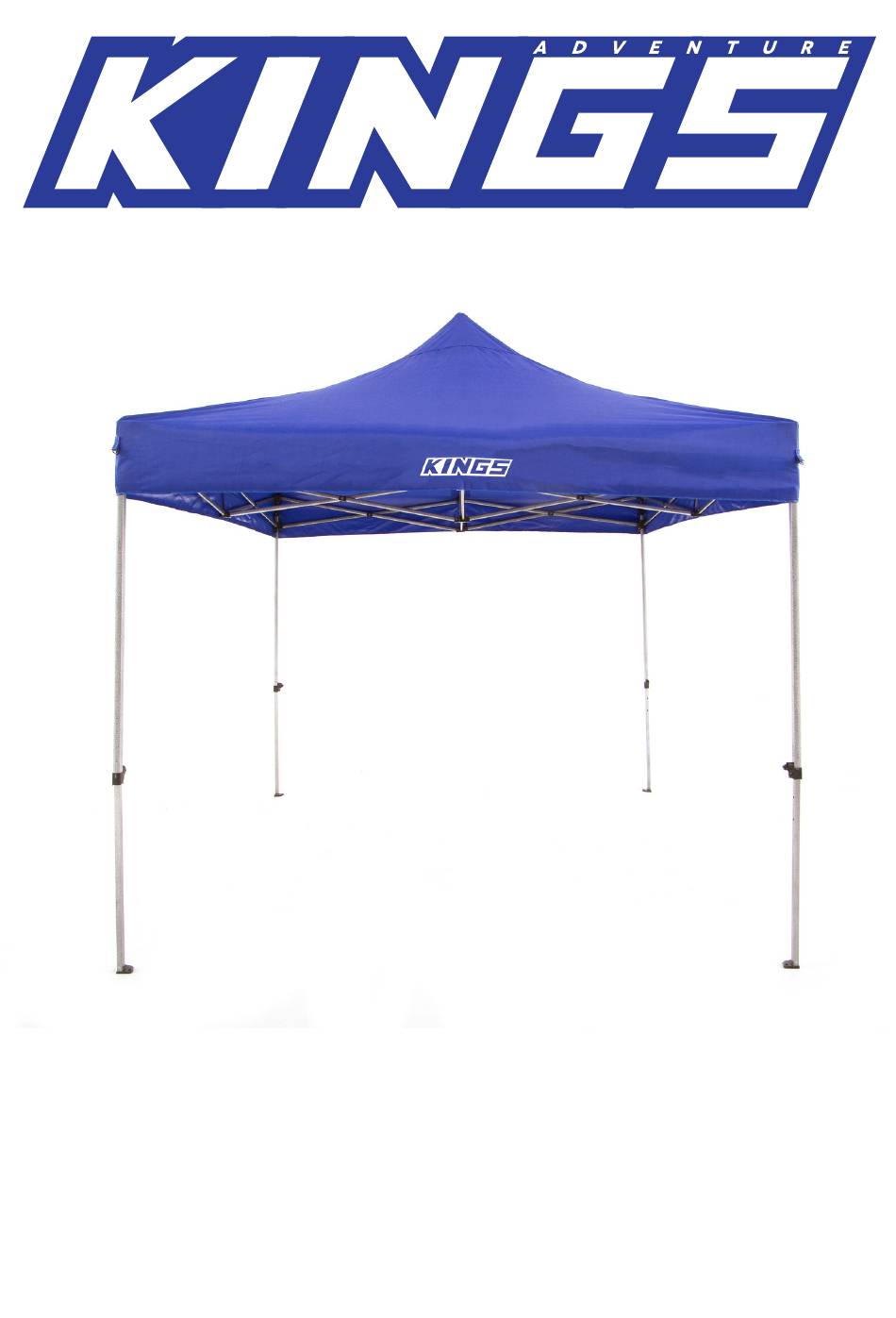

Page 1 3m x 3m Gazebo SET-UP MANUAL...
Page 2 Adventure Kings Gazebo...
Page 3 STEP 2: UNPACKING THE GAZEBO Unpack your Gazebo from the carry bag & place the Gazebo’s frame up-right. With the help of another person, grab opposing corners and gradually move away from each other. Ensure that frame is opening evenly and is not snagging at any point; move between the legs making sure the frame is opening in a square.
Page 4 INSTALLING THE GAZEBO’S CANOPY With the Gazebo’s frame almost fully extended out; take the Gazebo’s cover out of the bag and place it over the frame, as shown in Figure 2. Attach the Velcro points found in the corners of the cover and the frame together, shown in Figure 3.
Page 5 After each corner of the Gazebo is locked into place, secure the four webbing straps (Figure 5) to the frame. The Gazebo’s cover should fit firmly over the frame ensuring water will run evenly off the Gazebo.
Page 6 SECURING THE GAZEBO TO THE GROUND With the Gazebo fully assembled, it’s now important to secure it to the ground. As shown in Figure 7 and 8, peg the frame down with the provided pegs and/or Guy ropes. Check that all the pegs are firm and secure in the ground.
Page 7 TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE CALL 1800 88 39 64 OUTDOOR SUPACENTRE PTY LTD 2 Stanley St Silverwater NSW, 2128 PHONE: 1800 88 39 64 www.4wdsupacentre.com.au Adventure Kings Gazebo...
Page 8 Adventure Kings Gazebo...
