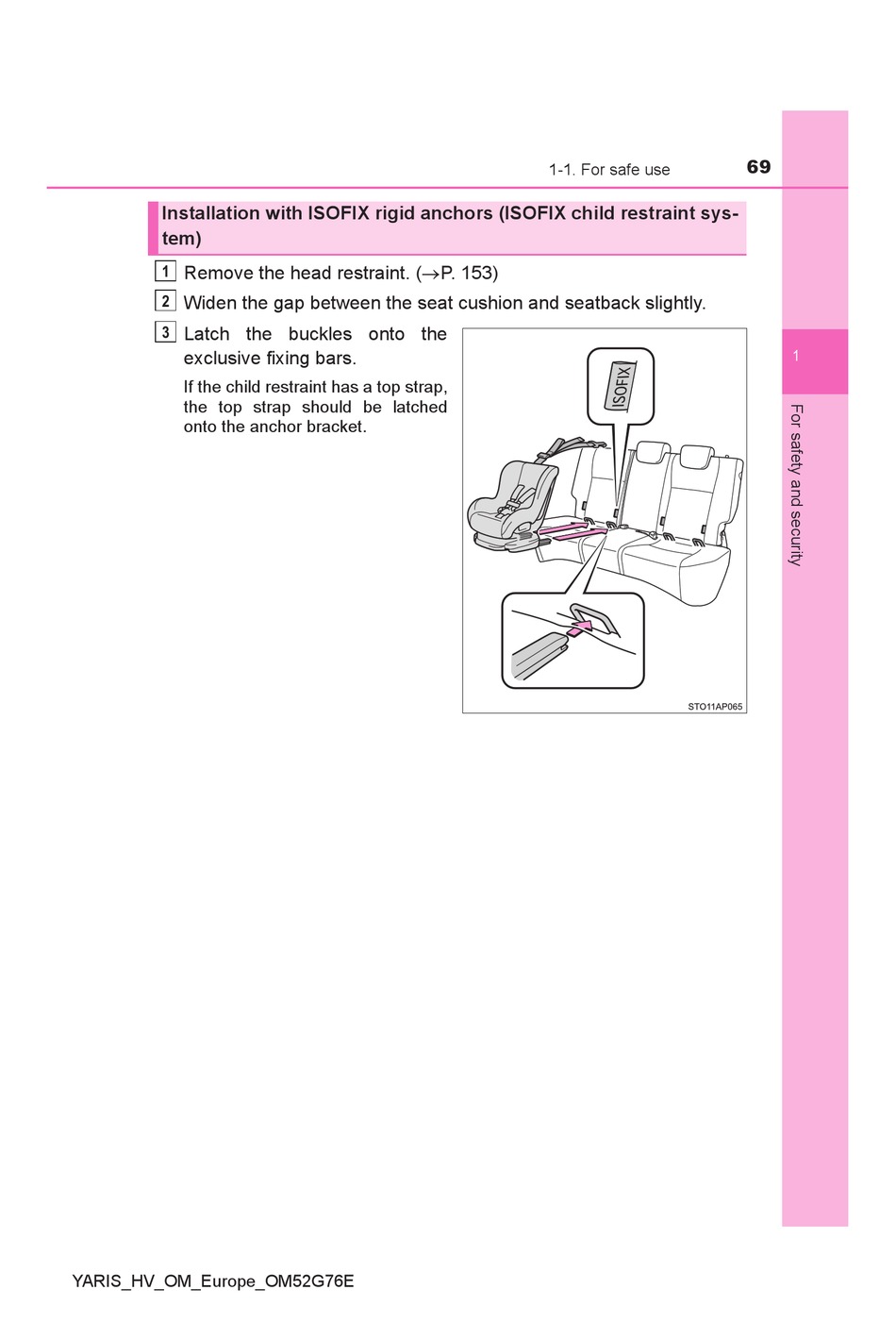

Installation with ISOFIX rigid anchors (ISOFIX child restraint sys-
tem)
1
Remove the head restraint. (P. 153)
2
Widen the gap between the seat cushion and seatback slightly.
3
Latch the buckles onto the
exclusive fixing bars.
If the child restraint has a top strap,
the top strap should be latched
onto the anchor bracket.
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
69
