Toyota Yaris Owner's Manual page 368

368
7-3. Do-it-yourself maintenance

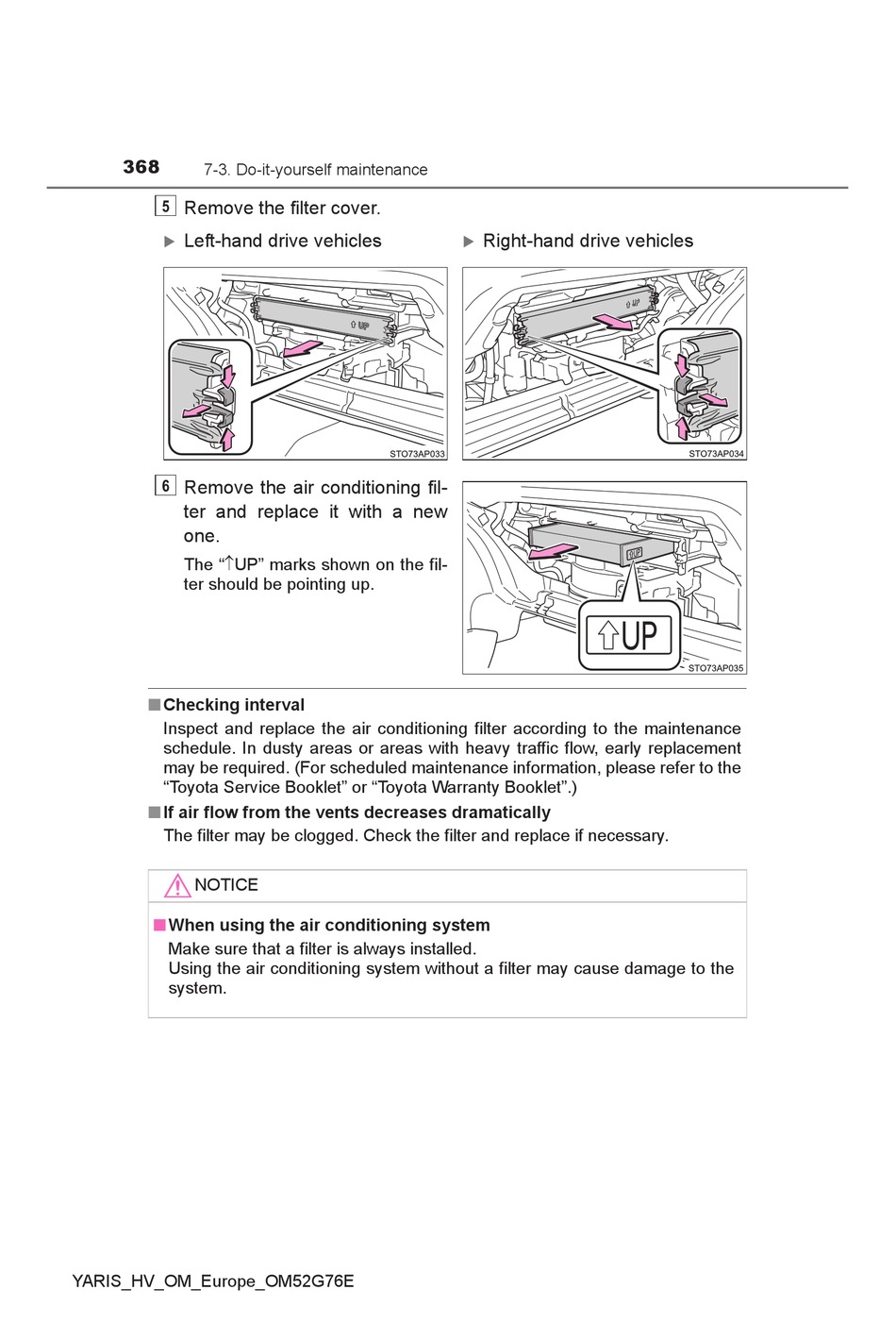

5 Remove the filter cover.
Left-hand drive vehicles

6
Remove the air conditioning fil-
ter and replace it with a new
one.
The "UP" marks shown on the fil-
ter should be pointing up.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
"Toyota Service Booklet" or "Toyota Warranty Booklet".)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
YARIS_HV_OM_Europe_OM52G76E
Right-hand drive vehicles

