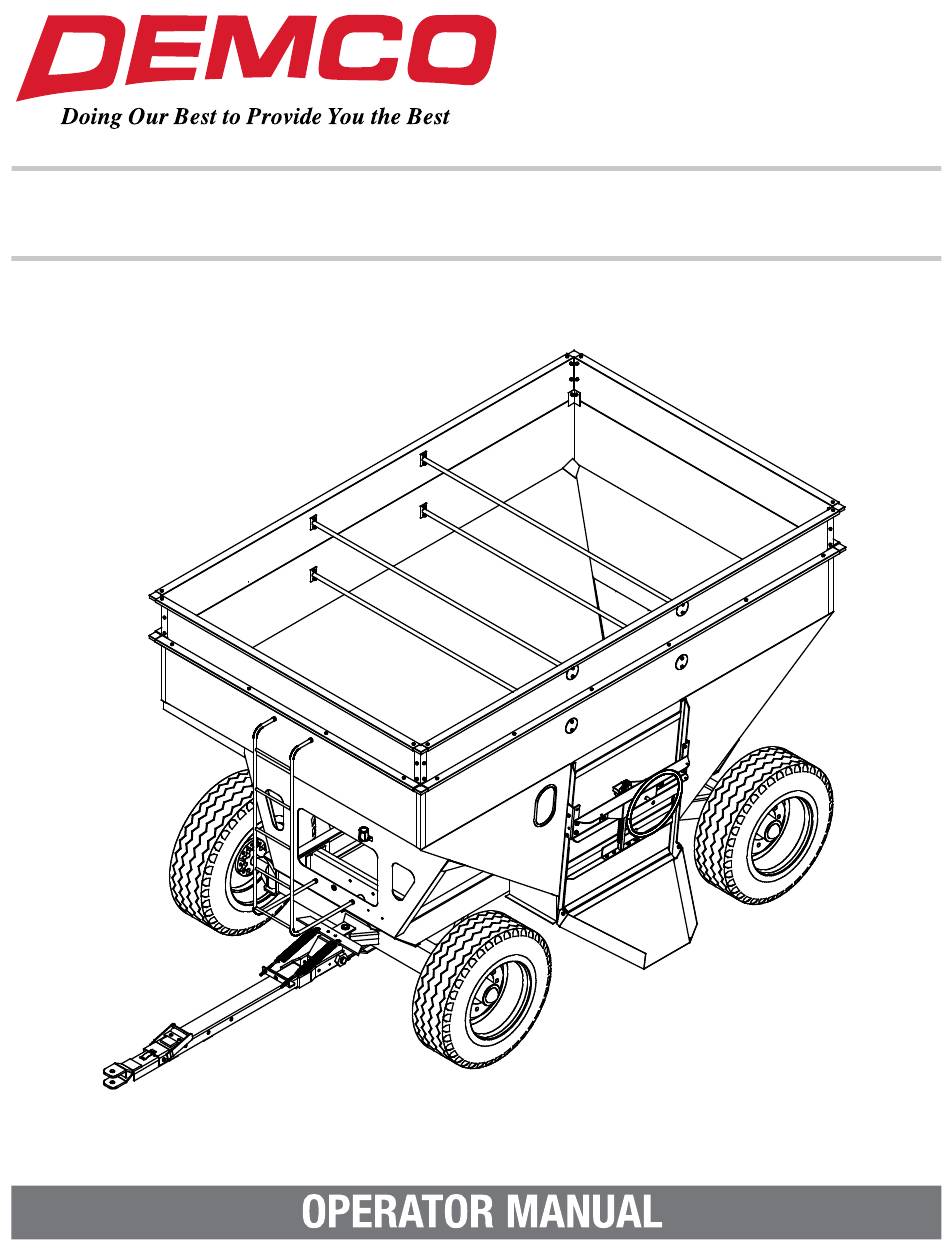

- Page 1 AG20003, Rev 12 10/18 GRAvity Flow 365 wAGoN...
-
Page 2: Warranty Policy & Registration
Thank you for purchasing a Demco Gravity Flow Wagon. We feel you have made a wise choice and hope you are completely satisfied with your new piece of equipment. Proper care and use will result in many years of service. -
Page 3: Table Of Contents
iNtRoDUCtioN GENERAl iNFoRMAtioN 1. Unless otherwise specified, high-strength (grade5) 3. When placing a parts order, refer to this manual (3 radial-line head markings) hex head bolts are for proper part numbers and place order by PART used throughout assembly of this piece of equip- NO. -
Page 4: Safety, Signal Words
If you have questions not answered in this manual, require additional copies, or if your manual is damaged, please contact your dealer or Demco, P.O. Box 189, 4010 320th Street, Boyden, IA 51234 ph: (712) 725-2311 or Toll Free: 1-800-543-3626 Fax: (712) 725-2380 http://www.demco-products.com... -
Page 5: Equipment Safety Guidelines, Lighting And Marking
SAFEty SAFETY...YOU CAN LIVE WITH IT EqUiPMENt SAFEty GUiDEliNES Every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. You, the operator, can avoid many accidents by observing the following precautions in this section. -
Page 6: Tire Safety
• Inflating or servicing tires can be dangerous. Whenever possible, trained personnel should be called to service and/or mount tires. • Always order and install tires and wheels with appropriate type and load capacity to meet or exceed anticipated weight to be placed on the equipment. • Refer to “TIRE INFLATION CHART” in your owners manual for maximum tire pressure for a Demco Grain Cart. BEFoRE oPERAtioN: • Carefully study and understand this manual and the Owner’s Manual. • Do not wear loose-fitting clothing which may catch in moving parts. • Always wear protective clothing and substantial shoes. -
Page 7: Following Operation
SAFEty • When halting operation, even periodically, set tractor or towing vehicles brakes, disengage PTO, shut off engine, and remove ignition key. • Be especially observant of operating area and terrain. Watch for holes, rocks, or other hidden hazards. Always inspect area prior to operation. DO NOT operate near edge of drop-off or banks. DO NOT operate on steep slopes as overturn may result. Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops. • Pick the most level possible route when transporting across fields. Avoid edges of ditches, gullies, and steep hillsides. -
Page 8: Performing Maintenance
SAFEty Reduce speed prior to turns to avoid risk of overturning. Always keep tractor or towing vehicle in gear to provide engine braking when going downhill. Do not coast. Do not drink and drive! • Comply with state and local laws governing highway safety and movement of farm machinery on public roads. • Use approved accessory lighting, flags and necessary warning devices to protect operators of other vehicles on highway during transport. Various safety lights and devices are available from your dealer. • Use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. -
Page 9: Safety Sign Locations
SAFEty SAFETY SIGN LOCATIONS Types of safety sign and locations on equipment are shown in illustration below. Good safety requires that you familiarize yourself with various safety signs, type of warning, and area or particular function related to that area, that requires your SAFETY AWARENESS. Back Front Red Reflective... -
Page 10: Bolt Torque
Bolt toRqUE toRqUE SPECiFiCAtioN Torque figures indicated are valid for non-greased or non-oiled threads and heads unless otherwise specified. Therefore, do not grease or oil bolts or capscrews unless otherwise specified in this manual. When using locking elements, increase torque values by 5%. * GRADE or CLASS value for bolts and capscrews are identified by their head markings. -
Page 11: Running Gear Parts List And Breakdown
REPlACEMENt PARtS 12 toN hD RUNNiNG GEAR PARtS BREAkDowN For Wheel Bearing Assembly In- structions, see page 10 REF. PART QTY. REQD. DESCRIPTION 29. 00306-30 2 Spring w/ Nut Insert 04094 Spring ONLY 5503-30 Wheel Hub Assembly 01254 1/2” -13 UNC x 1-1/2” Bolt, Gr. 5 00116 5/32” x 1-1/2” IG Cotter Pin (not incl’d) 31. -
Page 12: Gravity Flow Box Parts Breakdown
REPlACEMENt PARtS GRAvity Flow BoX PARtS BREAkDowN ?-10 = ?-20 = Green See Door Lift Assembly Door Lift Assembly Breakdown Breakdown Assembled Door Opener Item 52 is not shown. It goes around sprockets 51 & 22. Part # 5732 Page 12 AG20003... -
Page 13: Gravity Flow Box Parts List And Assembly Instructions
49. 11459-30 1 Backplate (black) AG21206 “365” Number Reflective 11461 Sprocket Shaft DE21017 Large Demco Logo Reflective 11462 28 Tooth Sprocket (#40 chain DE21018 Medium Demco Logo Reflective 11463 Roller Chain, #40 x 37 Links w/ connect link 53. 11569-30 1 Opener Channel (black) Please order replacement parts by PART NO., DESCRIPTION and COLOR... -
Page 14: 365 Bushel Box With 12 Ton Hd Rocking Bolster
REPlACEMENt PARtS 365 BUShEl RoCkiNG BolStER 12 TON HD ROCKING BOLSTER PARTS LIST REF. PART QTY. REQD. DESCRIPTION 07757-? Gravity Flow Box 01305-30 2 Bolster Cross Member 01254 1/2”-13UNC x 1-1/2” Hex Head Bolt 00085 1/2” Flatwasher 02178 1/2”-13UNC Nylon Insert Locknut 11358-95 1 1-1/2”... -
Page 15: Gravity Flow Box Light Kit With Parts List And Instructions
REPlACEMENt PARtS GRAvity Flow liGht kit LIGHT KIT PARTS LIST WIRING DIAGRAM REF. PART QTY. WHITE NO. REQD. DESCRIPTION (GROUND) 03652 Grommet Rubber Oval FRONT PLUG 14923 LED Light, Sealed Red Lamp BROWN (CHUTE) 14924 LED Light, Sealed Yellow Lamp (TAIL) 03294 Light Wire Harness... -
Page 16: Window Installation Procedure And Parts List
wiNDow iNStAllAtioN Locking Tab in INSTALLATION PROCEDURE Closed Position The installation must be done from inside the box. Window 1. Place rubber molding in opening. Seam should begin on side of opening. Inside of Box 2. Remove the protective sheeting from both Gravity Box sides of the plastic window.
