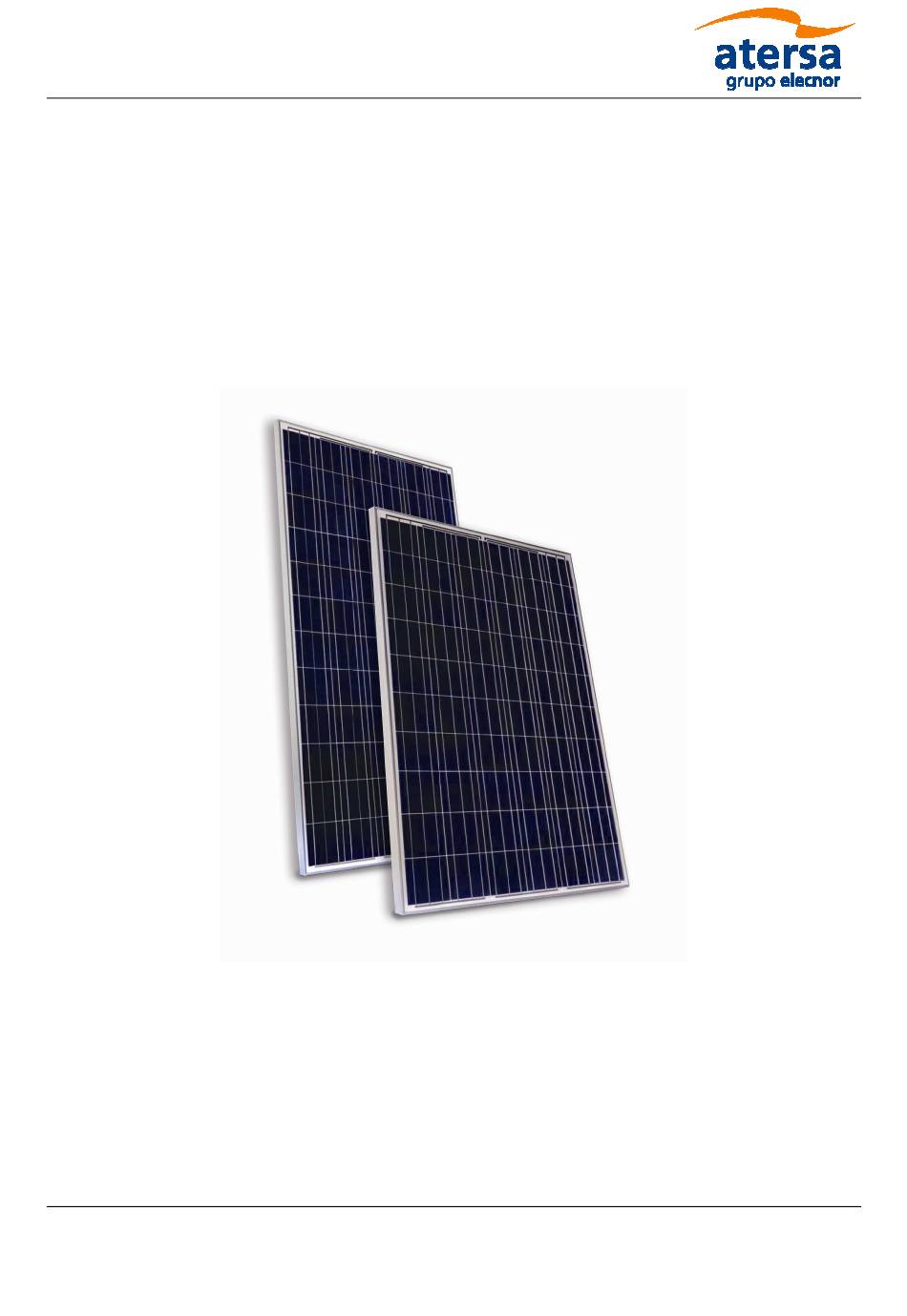

- Page 1 OPTIMUM GS MODULES INSTALLATION MANUAL OPTIMUM GS Modules Installation Manual Ref.: MU-81-A Revised: 28/01/16 Page 1 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
-
Page 2: Table Of Contents
8.1.1 Cleaning 8.1.2 Maintenance safety 9 Checklist Note: The contents and specifications hereof may vary with the product design. Atersa reserves the right to make change to the installation guide without prior notice. Page 2 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com –... -
Page 3: Disclaimer Of Liability
PV modules. This manual contains information regarding the installation and safe handling of Atersa. The word "module" or "PV module" used in this manual refers to one or more GSE-Series solar modules. Installers must read and understand the guide before installation. -
Page 4: General Safety
• The maximum open circuit voltage must not be greater than the specified maximum Page 4 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 5: Precaution For Unpacking, Handling & Storage
Page 5 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 6: Warning
Do not wear metallic jewelry while installing or trouble shooting the module. • Do not change the wiring of bypass diodes. Page 6 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 7: Installation
~ 40 Latitude + 15 Latitude + 20 Tilting angle of PV module Recommended tilting angles Page 7 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... - Page 8 The maximum PV modules in parallel are two groups of maximum PV modules in series. Page 8 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
-
Page 9: Mechanical Installation
(doing so would void the warranty).Use appropriate corrosion-proof fastening materials. Page 9 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 10: Clamping Method
40 < X < 50 Clamp size Clamping Method Bolting method Page 10 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... - Page 11 OPTIMUM GS MODULES INSTALLATION MANUAL Page 11 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
- Page 12 OPTIMUM GS MODULES INSTALLATION MANUAL Page 12 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
-
Page 13: Electrical Connections
Have a Rated Repetitive Peak Reverse Voltage [VRRM] above maximum system voltage at lowest module operating temperature. Page 13 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 14: Wiring
The junction box is under no circumstances being opened. Opening the junction box may void the warranty. • Modules with a suspected electrical problem should be returned to Atersa for inspection and possible repair or replacement as per the warranty conditions provided by Atersa. - Page 15 Typical wiring connections in series Typical wiring connections in parallel Page 15 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
-
Page 16: Maintenance And Cleaning
Page 16 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 17: Maintenance Safety
Do not drill holes in the frame; Do not treat back sheet and front surface of the module with paint and adhesives. • Do not artificially concentrate light on the module. Page 17 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... -
Page 18: Checklist
• Cables are not damaged in any way. • Checking the earthing resistivity of metals. Page 18 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430... - Page 19 8,16 8,24 8,31 8,38 8,45 8,52 Efficiency (%) 14,9 15,2 15,5 15,7 16,0 16,2 16,5 Page 19 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
- Page 20 8,24 8,31 8,37 8,47 8,57 Efficiency (%) 14,9 15,2 15,5 15,7 16,0 16,2 16,5 16,8 Page 20 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
- Page 21 61730-1 and -2 within this application class are considered to meet the requirements for Safety Class II). Page 21 Aplicaciones Técnicas de la Energía S.L. (ATERSA) www.atersa.com – atersa@elecnor.com Madrid (Spain) +34 915 178 452 - Valencia (Spain) +34 961 038 430...
