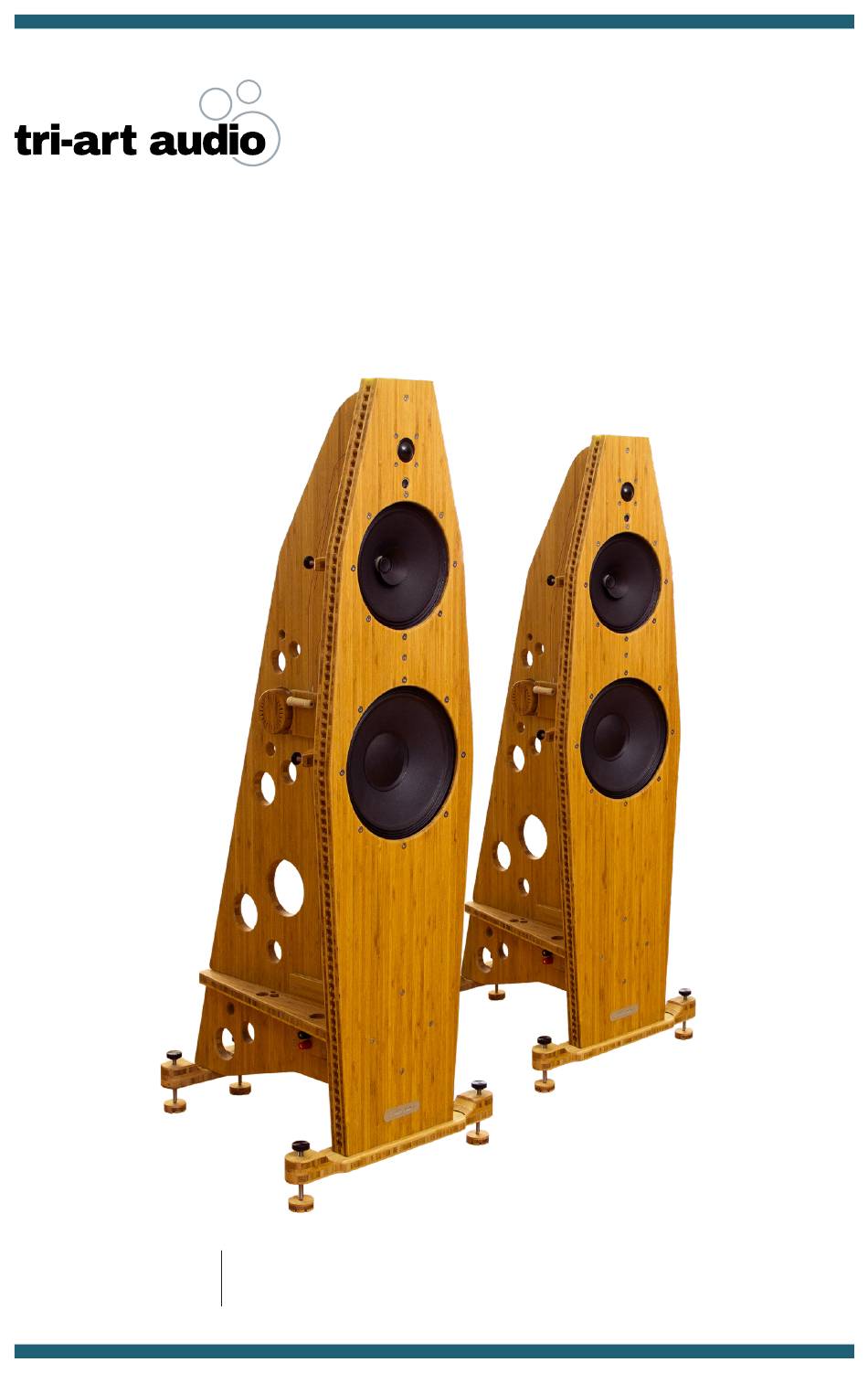

- Page 1 B-Series 3 open User Manual speakers * Read the user manual before operating. Product #10843...
-
Page 2: Safety Information
Warning of a hazard for the user, the unit or possible misuse. Important notice. Thank you for buying a Tri-Art Audio product. Please read through this manual to understand and operate this product correctly. Please keep this manual in a safe place so that you may refer to it whenever necessary. - Page 3 safety information Safety Instructions Read Instructions: All the safety and operating instructions should be read before operating this equipment. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed All Warnings: All warnings, set up procedures, and operating instructions should be strictly adhered to. Follow all instructions carefully.
- Page 4 safety information Safety Instructions Heat: This product should be located well away from all the heat sources such as but not limited to heaters, forced air heat, radiators, stoves, and fireplaces. Cleaning: Your Tri-Art product was soaked and finished in hemp oil. Do not use lacquers or aerosol wax products with this product.
-
Page 5: Speaker Specs
speaker specs Speaker Details: Design: Open Baffle Rated Impedance: 8 Ω Sensitivity: 97 dB (1W/1m) Frequency Range: 45 – 40,000 Hz (+/- 3dB) Adjustable Volume Control for Full Range Speaker Section Includes Bamboo Stand with 4 Stainless Steel, Finger Adjustable Spikes and Spike Cups Recommended Amplifier Rating (tube amps): 12 –... - Page 6 speaker parts Tweeter Super Tweeter Full Range Driver Volume Attenuator Bass Driver Crossover 1/8" Spike...
- Page 7 speaker parts Tweeter Super Tweeter Full Range Driver Bass Driver Iso Feet Inputs...
-
Page 8: Initial Check
included in the box Initial Check The Open Three Series is shipped in two (2) oversized boxes. Upon receiving the boxes please check their condition and ensure the arrows on the box are pointing upward. If any of the packaging is or even appears to be damaged, please report it to the shipping company immediately for insurance verification. - Page 9 included in the box Checklist: What’s in the Box? Now that you have unpacked all your boxes, you can review your inventory to ensure you have everything you need. • 1 – Owner’s Manual • 1 – Warranty Registration • 8 –...
- Page 10 use & guidelines Setting up the Open 3 Series Speakers The Open Series of speakers is an Open Baffle design. There is no box to add colourations or enhance the sound. Therefore it is important to place the speakers as far away from the back wall as possible.
- Page 11 use & guidelines of the total room Figure 1 Speaker Placement...
-
Page 12: Troubleshooting
use & guidelines Volume Matching The speaker has an attenuator. This is not a volume switch! The speaker attenuator (shown here set to 0) allows you to set the output of the drivers to match the bass response of the room. This feature permits a balanced sound and truly exceptional performance. - Page 13 Your Tri-Art Audio speakers is operational and fully set up. Now, go play your favourite record! Our Bamboo Design We have selected bamboo to construct many of the structural parts of our systems rather than metal or plastic. The sonic virtues of bamboo are evident. We use the latest CNC machinery to manufacture to precise tolerances.
-
Page 14: Warranty Information
Manufacturer’s Limited Three Year Warranty: Tri-Art Audio warrants this unit to be free from defective material or workmanship and will repair or replace this unit or any part thereof if it proves defective in normal use or service within three (3) years from the date of original purchase. - Page 15 thank you for your purchase!
- Page 16 triartaudio.com Designed . Fabricated . Assembled In Canada...
