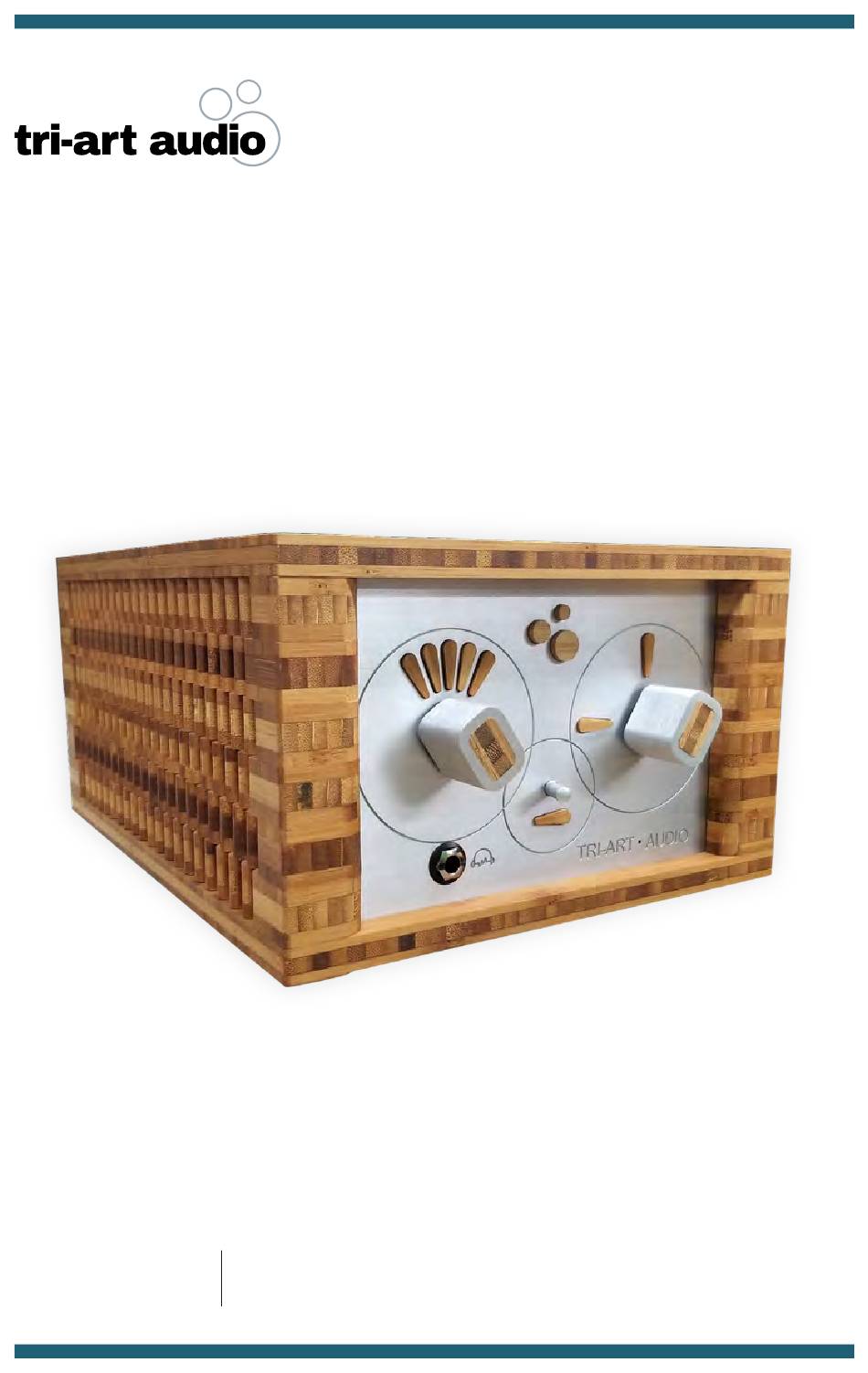

- Page 1 B-Series passive User Manual pre-amp * Read the user manual before operating. Product #7216...
-
Page 2: Safety Information
Warning of a hazard for the user, the unit or possible misuse. Important notice. Thank you for buying a Tri-Art Audio product. Please read through this manual to understand and operate this product correctly. Please keep this manual in a safe place so that you may refer to it whenever necessary. -
Page 3: Read Instructions
safety information Safety Instructions Read Instructions: All the safety and operating instructions should be read before operating this equipment. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed All Warnings: All warnings, set up procedures, and operating instructions should be strictly adhered to. Follow all instructions carefully. - Page 4 safety information Safety Instructions Heat: This product should be located well away from all the heat sources such as but not limited to heaters, forced air heat, radiators, stoves, and fireplaces. Cleaning: Your Tri-Art product was soaked and finished in hemp oil. Do not use lacquers or aerosol wax products with this product.
- Page 5 pre amp front Source Selector Input/Mute Switch (see Use & Guidelines) Volume Control Headphone Jack...
- Page 6 pre amp back 1 – 5 Left (Top) / Right (Bottom) RCA Inputs XLR (Balanced) Input 2 Singled Ended Outputs XLR (Balanced) Output Power Supply Input...
-
Page 7: Pre Amp Specs
pre amp specs Power: 12 Volt DC 5 Amps, Linear Tube Buffered Tube: One (1) NOS GE 5670 Gain: Three Position Gain Selector Switch for Tube Output Shield: Copper Sleeve Tube Shield Pre-Amp: Pre-Amp Section Shunt Resistor Design Shielding: Shielded to Protect Against External Magnetic Fields and Prevent Contamination Due to Ultrasonic and RF Interference Headphone: 6.3mm (1/4") Jack with Built in Headphone Amplifier... - Page 8 use & guidelines Input/Mute Switch The Input/Mute Switch located has three positions. Left Position: Output to speaker is unmuted. Input is selected RCA source using source selector. Middle Position: Output to speaker is muted, headphone jack is unmuted. (Use for headphone listening) Right Position: Output to speaker is unmuted.
- Page 9 • B-Series Passive Pre Amp • Remote Control • 12 Volt External Power Supply • Iso Feet • Barrel to Barrel Plug...
- Page 11 Your Tri-Art Audio pre-amplifier is operational and fully set up. Now, go play your favourite record! Our Bamboo Design We have selected bamboo to construct many of the structural parts of our systems rather than metal or plastic. In addition to being aesthetically pleasing, it has a vital function.
-
Page 12: Warranty Information
Manufacturer’s Limited Three Year Warranty: Tri-Art Audio warrants this unit to be free from defective material or workmanship and will repair or replace this unit or any part thereof if it proves defective in normal use or service within three (3) years from the date of original purchase. - Page 13 thank you for your purchase!
- Page 14 triartaudio.com Designed. Fabricated. Assembled In Canada...
