- Page 1 S-Series open User Manual towers * Read the user manual * Read the user manual before operating. Product #21672...
-
Page 2: Safety Information
Warning of a hazard for the user, the unit or possible misuse. Important notice. Thank you for buying a Tri-Art Audio product. Please read through this manual to understand and operate this product correctly. Please keep this manual in a safe place so that you may refer to it whenever necessary. - Page 3 safety information Safety Instructions Read Instructions: All the safety and operating instructions should be read before operating this equipment. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed All Warnings: All warnings, set up procedures, and operating instructions should be strictly adhered to. Follow all instructions carefully.
- Page 4 safety information Safety Instructions Heat: This product should be located well away from all the heat sources such as but not limited to heaters, forced air heat, radiators, stoves, and fireplaces. Cleaning: Your Tri-Art product was soaked and finished in hemp oil. Do not use lacquers or aerosol wax products with this product.

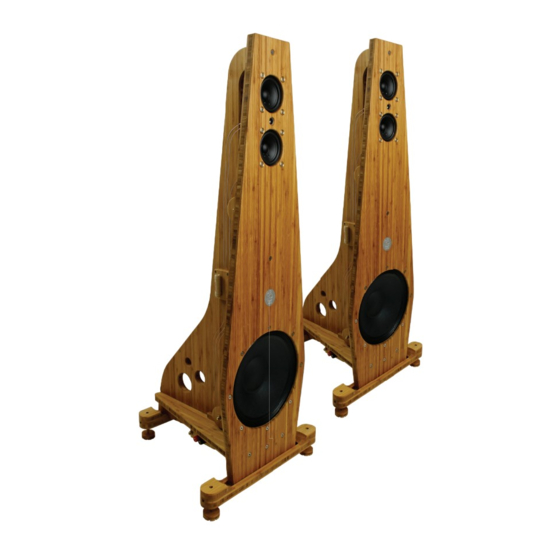

- Page 5 speaker front Full Range 3" Driver Super Tweeter 250Hz 3" Driver 10" Driver Inputs Bamboo Spike Cup Feet...
- Page 6 speaker back Full Range 3" Driver Super Tweeter 250Hz 3" Driver Volume Control 10” Driver Bamboo Spike Cup Feet...
-
Page 7: Speaker Specs
speaker specs Speaker Details: Design: Open Baffle Nominal Impedance: Single Input 8 Ω Recommended Amplifiers: 25 Up to 150 Watts RMS Sensitivity: 88 dB SPL Volume Matching: Attenuator for Full Range Speaker Section Frequency Range: 45 – 20,000 Hz (+/- 3dB) Driver Details: Top: 2 x 3"... -
Page 8: Initial Check
included in the box Initial Check Upon receiving the boxes please check their condition and ensure the arrows on the box are pointing upward. If any of the packaging is or even appears to be damaged, please report it to the shipping company immediately for insurance verifi cation. - Page 9 included in the box Checklist: What’s in the Box? Now that you have unpacked all your open tower boxes, you can review your inventory to ensure you have everything you need. • 1 – Owner’s Manual • 1 – Warranty Registration •...
- Page 10 use & guidelines Setting up the Open Tower Speakers The open Series of speakers is an open Baffle design. There is no box to add colourations or enhance the sound. Therefore it is important to place the speakers as far away from the back wall as possible. We suggest to use the rule of thirds. Ensure the power is off, the volume at 0 or mute switch is on before connecting your speakers or inputs.
- Page 11 use & guidelines of the total room Figure 1 S-Series Open Tower Placement...
- Page 12 use & guidelines Connecting your Open Tower Speakers Make sure your power amplifier or receiver is turned off. Turn the volume of your pre-amplifier/amplifier or receiver to zero. Connect your amplifier speaker output terminals to the appropriate Open Tower input terminals of your amplifier, with careful attention to maintaining correct polarity.
- Page 13 Your Tri-Art Audio speakers is operational and fully set up. Now, go play your favourite record! Our Bamboo Design We have selected bamboo to construct many of the structural parts of our systems rather than metal or plastic. The sonic virtues of bamboo are evident. We use the latest CNC machinery to manufacture to precise tolerances.
-
Page 14: Warranty Information
Manufacturer’s Limited Three Year Warranty: Tri-Art Audio warrants this unit to be free from defective material or workmanship and will repair or replace this unit or any part thereof if it proves defective in normal use or service within three (3) years from the date of original purchase. - Page 15 Thank you for your purchase!
- Page 16 triartaudio.com Designed. Fabricated. Assembled. In Canada...
