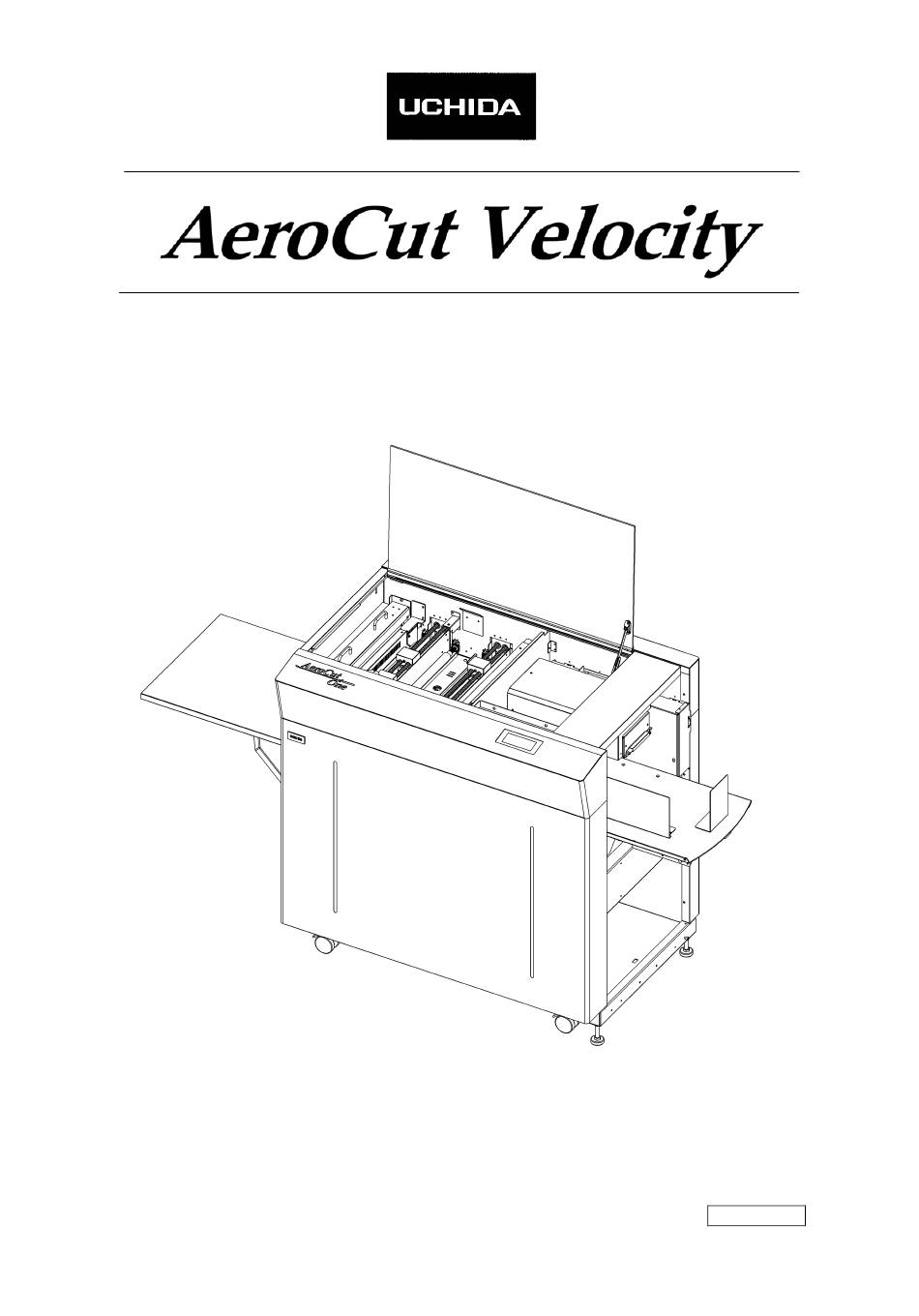

- Page 1 OPERATION MANUAL UCHIDA YOKO CO., LTD., TOKYO, JAPAN MyBinding.com xx-xxx V1.00 5500 NE Moore Court Hillsboro, OR 97124 Toll Free: 1-800-944-4573 Local: 503-640-5920...
- Page 2 AeroCut Velocity OPERATION MANUAL ・Use machine only after reading the "Safety Instructions" given below carefully. ・These safety instructions are given to ensure that the machine will be used safely and properly and to prevent operators from sustaining harm and injuries.
- Page 3 AeroCut Velocity OPERATION MANUAL Caution 1. Don't put a hand into the cover or a clearance between parts. There is a danger of receiving an injury. 2. Don't bring a hand, face, hair, sleeves of clothes and the like close to the rotating parts of the machine.
-
Page 4: Table Of Contents
AeroCut Velocity OPERATION MANUAL Contents 1 Introduction..................6 Names of parts ......................6 Accessories ......................8 Touch panel ......................8 Paper weight / quality ....................9 2 Operating instructions ...............10 Lock a caster brake ....................10 Turning the power on..................... 10 Initial position......................11 Input ........................11 Set ......................... - Page 5 AeroCut Velocity OPERATION MANUAL Paper jam ......................37 7 Error messages .................38 8 Troubleshooting.................43 9 Product specifications ...............45 MyBinding.com 5500 NE Moore Court Hillsboro, OR 97124 Toll Free: 1-800-944-4573 Local: 503-640-5920...
-
Page 6: Introduction

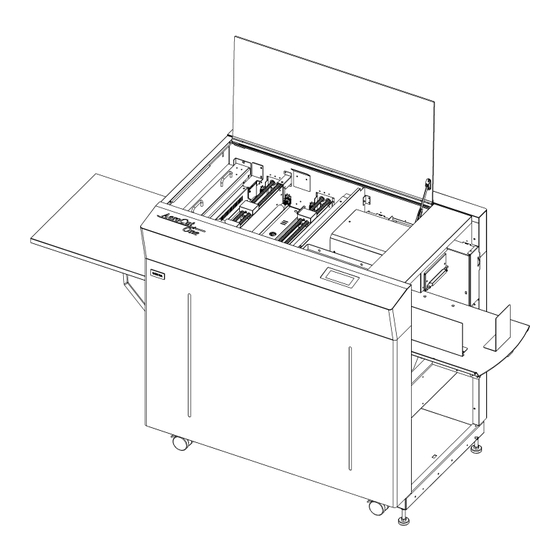

AeroCut Velocity OPERATION MANUAL Introduction 1.1 Names of parts Safety cover Skew adjustment dial Feed table Stacker Power switch Inlet Waste box Caster Creaser Guillotine Gutter slitter unit Touch panel Margin slitter unit... - Page 7 AeroCut Velocity OPERATION MANUAL Warning Don’t put hands inside work area. May result in severe injury. Don't touch any rotating part. There is a danger of receiving an injury. Don't open the cover of the equipment. There is a danger of receiving an injury or electric shock.
-
Page 8: Accessories
AeroCut Velocity OPERATION MANUAL 1.2 Accessories Spanner Template Hexagonal wrench Paper guide (Small) Business card Partition Stacker end Paper guide (Large) Card stacker Electric Power cord Upper suction shutter Waste box 1.3 Touch panel Home screen Quantity Clear Page 15... -
Page 9: Paper Weight / Quality
AeroCut Velocity OPERATION MANUAL Manu Set screen READ Page 25 SAVE Page 25 Flex Mode screen SAVE READ Page 25 Page 25 Manual speed screen Inching CREASE TABLE VACUUM Page 37 Page 37 Page 37 Page 30 BLOW CUTTER Page 30... -
Page 10: Operating Instructions
AeroCut Velocity OPERATION MANUAL Operating instructions 2.1 Lock a caster brake 2.2 Turning the power on Electric power cord AC 110-120V Power switch 50/60Hz 400W Unlock Lock Caster Power on Home screen Opening screen MyBinding.com 5500 NE Moore Court Hillsboro, OR 97124... -
Page 11: Initial Position
AeroCut Velocity OPERATION MANUAL 2.3 Initial position ① When the power turned on, the touch screen showsINITIAL POSITION button. Press INITIAL POSITION button. ② The slitters will move to their initial position automatically. Then the button changes to SET. Home screen 2.4 Input... -
Page 12: Set
AeroCut Velocity OPERATION MANUAL 2.5 Set ① With a press of SET button, the slitters will move to the positions according to the selected cut pattern. ② At the same time, Feed table will move to the lower end position. -
Page 13: Stacker And Waste Box Settings
AeroCut Velocity OPERATION MANUAL Side guide Note. ・ Paper loading capacity is 3.95”. ・ Make sure that the paper stack does not exceed the MAX label. Label ・ It affects finishing accuracy if there is a gap between the side guide and the Paper sheets. - Page 14 AeroCut Velocity OPERATION MANUAL ② Open the stacker and set the stays in the indentation of the back of the stacker at an appropriate angle to allow smooth paper ejection. ③ Adjust the large paper guide according to the paper size.
-
Page 15: Start
AeroCut Velocity OPERATION MANUAL ⑦ Change the settings of the stacker according to the cut pattern. Business card Post card Business card partition Card stacker Card stacker Stacker end Stacker end 2.8 Start Home screen ・Press START to start an automatic operation. The display will change to RUNNING. - Page 16 AeroCut Velocity OPERATION MANUAL Counter ・ The counter indicates the number of finished sheet when the machine is stopped with STOP or END button. Press to reset the counter to 0. ・ If paper is left in the machine, remove it by inching. (...
-
Page 17: Waste Disposal
AeroCut Velocity OPERATION MANUAL 2.10 Waste disposal ・Dispose the wastes in the waste box appropriately. ・Overloading wastes causes errors or a breakdown. Waste box 2.11 Power off Home screen ・Make sure that the machine is stopped. ・Return to the Home screen. -
Page 18: Cut Pattern Input
AeroCut Velocity OPERATION MANUAL Cut pattern input 3.1 Outline Home screen ① PRESET is a series of cut patterns that are already stored in the machine. Template) ② In MANUSET mode, user programs can be created and stored into the machine. - Page 19 AeroCut Velocity OPERATION MANUAL ③ Select the cutting pattern. Cutting Pattern Selection Screen Cutting Pattern Confirmation Screen Cut pattern can be checked in detail and the measurements can be changed. Refer to MANUSET ( Page.20) for measurement setting procedures. Confirm the cut pattern.
-
Page 20: Manuset
AeroCut Velocity OPERATION MANUAL 3.3 MANUSET ① Press MANUSET. Home screen ② The screen displays the current cut pattern. Cutting Pattern Input Screen Crease Pos. Input Screen Cutting Pattern Input Screen Move to User Program Selection Screen. Save Cut pattern as inputted into User Program memory. - Page 21 AeroCut Velocity OPERATION MANUAL ③ Press the number to change the value. Measurement A-R can be customized. Measurement S-U will be calculated automatically.
- Page 22 AeroCut Velocity OPERATION MANUAL ④ There are some limitations in value as shown on below image. Front margin size [inch] It doesn't make the first cut if 0 is entered. Paper size [inch] Cut size [inch] Top margin size [inch] 8.25-26.75...
-
Page 23: Flex Mode
AeroCut Velocity OPERATION MANUAL 3.4 FLEX MODE ① Press FLEX MODE. Home screen ② FLEX mode is an operation mode where you can input up to 20 actions (cross cut, crease or perforate) per page. This allows the machine to finish jobs which MANU SET cannot finish, such as multiple sizes of cards from a page and pass through pages without any actions. - Page 24 AeroCut Velocity OPERATION MANUAL ⑥ This screen allows you to input each pitch from No. 1 to No. 20. The adjacent switches are used for selecting no operation, guillotine, or creaser. Every time the switch is pressed, the selected operation changes.
-
Page 25: Save / Read
AeroCut Velocity OPERATION MANUAL 3.5 SAVE / READ ・ 100 of MANUSET user data can be stored. ・ 60 of FLEX MODE user data can be stored. ・ SAVE/READ procedures are same in each mode. SAVE ① Can store the contents of the MANUSET Press the SAVE. - Page 26 AeroCut Velocity OPERATION MANUAL ⑤ Saved user data can be deleted with a press of CLEAR. READ ① Can store the contents of the MANUSET Press the READ. Cutting Pattern Input Screen ② Press the button of the name you wish to retrieve.
-
Page 27: How To Use Options
AeroCut Velocity OPERATION MANUAL How to use options 4.1 How to attach the Y-perforator ① Remove the delivery guide. Note. In case Perforator unit is not set in the machine, please attach the delivery guide instead in order to avoid paper jam. -
Page 28: How To Adjust The Y-Perforation Location
AeroCut Velocity OPERATION MANUAL 4.2 How to adjust the Y-perforation location ① When using the perforator, the screen will display where to fix the perforator, as shown below. ② If the upper blades are positioned to come into contact with the lower blades, the upper blade position can be adjusted with the perforator attached to the main body. -
Page 29: How To Adjust The Depth Of Y-Perforation
AeroCut Velocity OPERATION MANUAL 4.3 How to adjust the depth of Y-perforation ① Change in the paper thickness, recommend you adjust the depth of Perforation. ② The height of the upper blades can be individually adjusted. ③ Shift the perforator lock lever to the right and raise the upper blades. -
Page 30: Adjustment
AeroCut Velocity OPERATION MANUAL Adjustment 5.1 Adjustments on the paper feed section ・Adjustments are required when the machine is likely to feed double or skew. Home screen Manual speed screen ・Upper suction adjustment 「 VACUUM 」 Default １ ２ ３... - Page 31 AeroCut Velocity OPERATION MANUAL 「 BLOW - SIDE 」 Default １ ２ ３ ４ ５ ６ ７ ８ ９ １０ Reduce skew Reduce double feed Easy to feed Thin paper might be bent and fed. In this case, turn down the side blower.
-
Page 32: Speed Change
AeroCut Velocity OPERATION MANUAL ・Sensitivity of Double feed sensor Default High sensitive Low sensitive ・If the machine detects double feed even with a single sheet, lower the sensitivity of the detection Detection area sensor. ・The detection sensor detects double feed by... -
Page 33: Skew Adjustment
AeroCut Velocity OPERATION MANUAL 5.3 Skew adjustment ・If print is skew on the sheet, the angle of the side guide can be adjusted. Skew adjustment ・The angle of the side guide changes as the dial skew adjustment dial is turned. -
Page 34: Fine Adjustments On Processing Positions
AeroCut Velocity OPERATION MANUAL ・ 5.5 Fine adjustments on processing positions 5.5.1 In cases cutting positions don’t match to image positions. ① Make sure the original sheets are printed correctly and consistently. ② Ensure that image positions correspond to inputted data. -
Page 35: If The Cut Measurement Does Not Match The Input Value
AeroCut Velocity OPERATION MANUAL 5.5.2 If the cut measurement does not match the input value If the actual size and measurements of output differs from input values, calibrate the machine via ADJUST screen. ADJUST screen Manual speed screen Reset the machine to the factory setting, all the adjusted values will be 0. - Page 36 AeroCut Velocity OPERATION MANUAL ② In case the length of leading edge is wrong: With cut mark Input the difference between inputted value and actual measurement into E. In case input value is 0.400” and cut measurement is 0.450”, input -0.050 to E.
-
Page 37: Manual Control
AeroCut Velocity OPERATION MANUAL Manual control 6.1 Manual control screen Home screen Manual speed screen Feed roller will rotate. Inching. Feed roller will rotate in reverse. Inching. Guillotine will move once. Crease will move. Feed table will move. 6.2 Paper jam ①... -
Page 38: Error Messages
AeroCut Velocity OPERATION MANUAL Error messages Cover Open error Safety cover ( Page 6) might be open. Make sure to close the Safety cover closed. Timeout error 1 Paper was not fed within a set time period. Check the paper feeder. - Page 39 AeroCut Velocity OPERATION MANUAL Cut Paper Jammed error 1 Paper remains inside the machine. Remove the paper. Cut Paper Jammed error 2 Paper remains inside the machine. Remove the paper. Overload error 1 Cutting or creasing did not complete within a set time period.
- Page 40 AeroCut Velocity OPERATION MANUAL Servo error Servo motor error detected. Turn off the power, and turn it on again after 5 seconds or longer. Paper size error Correct the paper size to fit in the value range below. Final cutting measurement error Correct the final cutting measurement to exceed the value specified below.
- Page 41 AeroCut Velocity OPERATION MANUAL Crease back margin error Correct the crease back margin to exceed the value specified below. Perforation location warning Correct the perforation location to fit in the value range below. The maximum value is subject to change depending on the entered paper size.
- Page 42 AeroCut Velocity OPERATION MANUAL FLEX MODE input error 3 Make sure for the first cut line must be 0.785” or shorter from the edge of the paper. If you want to cut off 0.785” or more, please cut off 0.785” or less at first and then cut off again and again.
-
Page 43: Troubleshooting
AeroCut Velocity OPERATION MANUAL Troubleshooting 1. Papers are not fed well. ・Turn up Upper suction ( Page 30) ・Turn up Side blow ( Page 30) ・Shorten the PAPER FEED WORK TIME. i.e. less than 1.0 ( Page 30) ・Check if the paper guides on the feed table hold sheets too tight. - Page 44 AeroCut Velocity OPERATION MANUAL If skewings are inconsistent : + Turn down Side blow. ( Page 30) + Shorten the PAPER FEED WORK TIME. i.e. less than 1.0 ( Page 30) + Make sure that the sheets are printed consistently and aligned well.
-
Page 45: Product Specifications
AeroCut Velocity OPERATION MANUAL Product specifications Specifications Slitter 4 sets (6 slitter blades) Guillotine 1 set Creser 1 set Y perforator 2 set(Depends on configuration) Maximum paper size 14.6” x 26.75” Minimum paper size 8.25” x 8.25” Minimum work size 2.165”... - Page 46 AeroCut Velocity OPERATION MANUAL Keep this “Operation Manual” at an appointed place with care so that it may be available whenever required. If this “Operation Manual” is stained or lost, make contact with the distributor or our salesman or customer service section to ask for a new operation manual after making sure of its contents.
