Generation Lighting Urbandale OL13707-L1 Installation Instructions

Installation Instructions for
Urbandale Outdoor Post (LED)
Outdoor
G ENERAL RODUCT NFORMATION P
This product is safety listed for wet locations.
1A
9
POST SCREW
4
POST

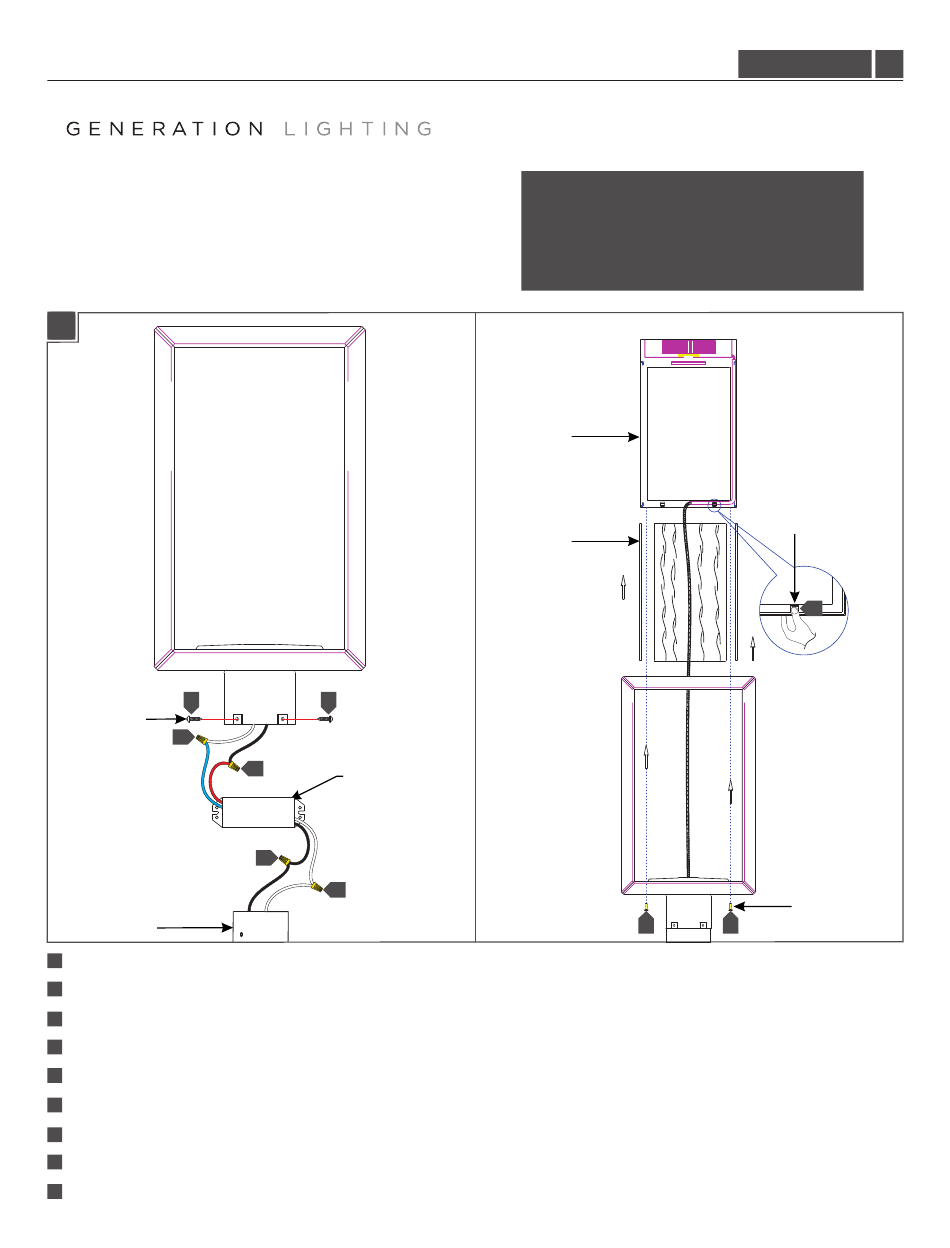

Remove the inner assembly from the fixture by loosening the fixture screws.
1
2 Insert the glass panels into the LED assembly housing and secure them in place using the clips.

inner assembly

Insert the
3
Connect the blue driver wire to the white fixture wire with a wire nut.
4
Connect the red driver wire to the black wire with a wire nut.
5
Connect the fixture to a suitable ground in accordance to local electrical codes.
6
Connect the white driver wire to the neutral power line wire with a wire nut.
7
Connect the black driver wire to the hot power line wire with a wire nut.
8
Secure the fixture to the post with the post screws making sure to neatly tuck in the driver and all wiring.
9
I :
9
5
DRIVER
8
7
into the fixture and secure it in place using the housing screws.
CAUTION RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
INNER
ASSEMBLY
GLASS PANEL
3
1
OL13707-LED
OL13707-L1
-
CLIP
2
FIXTURE SCREW
3
1.2
