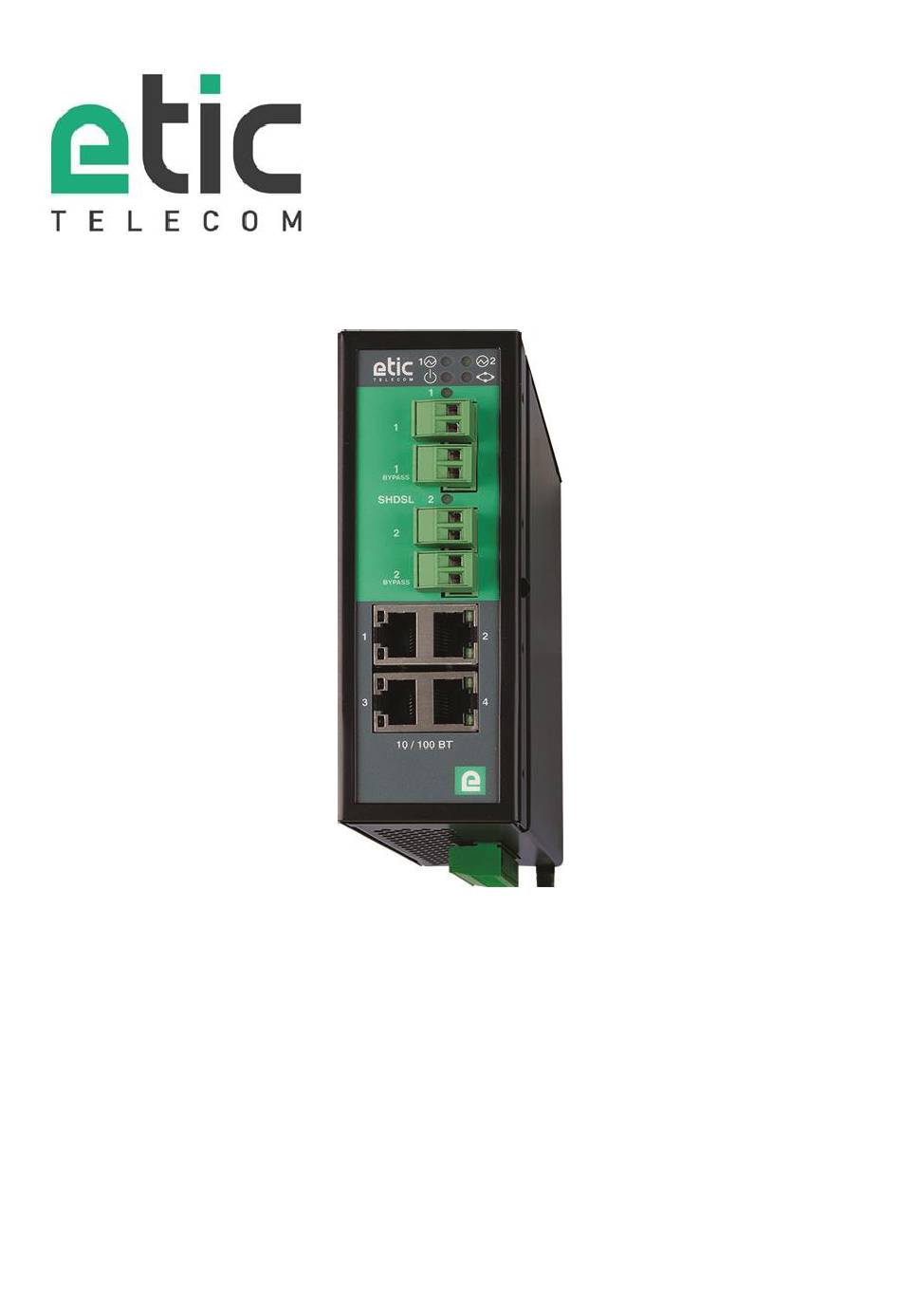

- Page 1 XSLAN+ SHDSL Switch _________________ USER GUIDE _________________ DOC_DEV_XSLAN+_User guide_B...
- Page 2 The XSLAN+ SHDSL switch is designed and manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 DOC_DEV_XSLAN+_User guide_B...
- Page 3 DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares under sole responsibility that the listed products conform to the Electromagnetic Compatibility (EMC) Directive 2014/30/UE , the Low Voltage Directive (LVD) 2014/35/UE , the Restriction of the use of certain Hazardous Substances (RoHS) Directive 2011/65/UE.
-
Page 5: Table Of Contents
TABLE OF CONTENTS OVERVIEW ............................. 7 Purpose of this manual ............................ 7 Products identification ............................. 7 Specifications..............................8 Product overview ............................10 XSLAN+1XXX ............................10 XSLAN+2XXX ............................10 XSLAN+4200 ............................12 Highlighted features ............................14 STU-C / STU-R auto-negotiation ......................14 Redundancy solutions: RSTP and proprietary failsafe ring ............... - Page 6 TABLE OF CONTENTS Overview ............................... 33 First configuration ..........................34 Changing the configuration later ......................34 Temporary return to the factory settings ...................... 35 Restoring the factory settings ........................35 Protecting the access to the administration server ..................36 Configuration steps ............................36 ANNEX 1 : SHDSL data rate versus distance ................
-
Page 7: Overview
OVERVIEW OVERVIEW Purpose of this manual The present user guide describes the features and the installation of the XSLAN+ switches family (it also applies to the switches family previously named XSRING+). Products identification The XSLAN+ is an industrial Ethernet switch that provides 1 to 4 SHDSL ports to extend the Ethernet transmission up to several kilometers using any existing copper pair. -
Page 8: Specifications
OVERVIEW Specifications Dimensions 136 x 48 x 138 mm (h, l, p) Max 0.74 kg Weight Metallic Casing IP20 – IEC60529 DIN rail mounted Storage: - 40°/ + 85°C Temperature Operating: - 40°/ + 70°C Humidity 10 to 95 % (relative) Power supply 2 power supply inputs Reverse polarity protection... - Page 9 OVERVIEW RFC 2474, 2475, 2597, 2598 « Differentiated services » Traffic prioritization and bandwidth reservation SNMP Supported MIBS : RFC1213-MIB (MIB-2) HDSL2-SHDSL-LINE-MIB HOST-RESOURCES-MIB / IF-MIB IP-MIB BRIDGE-MIB RSTP-MIB Asynchronous - 1200 à 115200 kb/s with or without parity RS232-RS485 * Gateway : Raw TCP client and server / UDP multipoint / Multicast / Telnet Modbus / Unitelway Date and time...
-
Page 10: Product Overview
OVERVIEW Product overview The XSLAN+ switches family includes : The products which can be connected to only one twisted pair. They only provide one SHDSL interface. The references of that products are XSLAN+1400 or XSLAN+12xx if they provide a serial port. They are named XSLAN+1XXX hereafter. - Page 11 OVERVIEW In case of a failure of a pair the data transmission is maintained on the other pair (backup). Daisy chain link The XSLAN+2XXX is used to interconnect a series of Ethernet networks using a single twisted pair. Thanks to the Store and Forward principle, the number of switches is not limited.
-
Page 12: Xslan+4200
OVERVIEW RSTP redundant link of fail safe ring Redundant network ring using the proprietary protocol (or RSTP) Complex network topology "multi- manufacturer" using the RSTP standard protocol. XSLAN+4200 Additional features compared to XSLAN+2XXX: Point to point link on four twisted pairs Two XSLAN+4200 extend Ethernet over two, three or four aggregated twisted pair. - Page 13 OVERVIEW Point to multipoint link - Concentrator The XSLAN+4200 is used to interconnect a central site with four remote sites. Point to multipoint link with doubled data rate The XSLAN+4200 is used to interconnect a central site with two remote sites. Redundant ring with doubled data rate Redundant ring...
-
Page 14: Highlighted Features
OVERVIEW Highlighted features STU-C / STU-R auto-negotiation When two XSLAN+ are connected by a twisted pair, one switch initiates the connection while the other responds and adapts automatically its data rate. The switch that initiates the connection is called STU-C. The switch that responds and adapts is called STU-R. -
Page 15: The By-Pass Function
OVERVIEW Proprietary failsafe ring algorithm: Based on the STP algorithm, that solution makes possible to handle a ring structure up to 16 SHSDL switches. The advantages of that solution is that the failure detection delay and the recovery delay is only a few seconds (One second if the ring counts 5 SHDSL switches);... -
Page 16: Other Functions Of The Xslan+ Family
OVERVIEW The 2 XSLAN+ at the end of the network establish a VPN over the WAN. provides connectivity at the Ethernet level. Thus by activating the RSTP protocol redundancy may be provided thanks to that VPN. Other functions of the XSLAN+ family Data rate versus distance The table in Annex 1 gives the data rate which can be expected over a line versus the length of the line. -
Page 17: Installation
INSTALLATION INSTALLATION Description Dimensions All models XSLAN+1XXX or XSLAN+2XXX or XSLAN+4200 The height indicated ignores the bulk of the power connector on the bottom side. Connectors XSLAN+1400 XSLAN+1220 Page 17 DOC_DEV_XSLAN+_User guide_B... - Page 18 INSTALLATION XSLAN+1230 XSLAN+1260 XSLAN+1261 XSLAN+2400 For XSLAN+22XX : See XSLAN+12XX Page 18 DOC_DEV_XSLAN+_User guide_B...

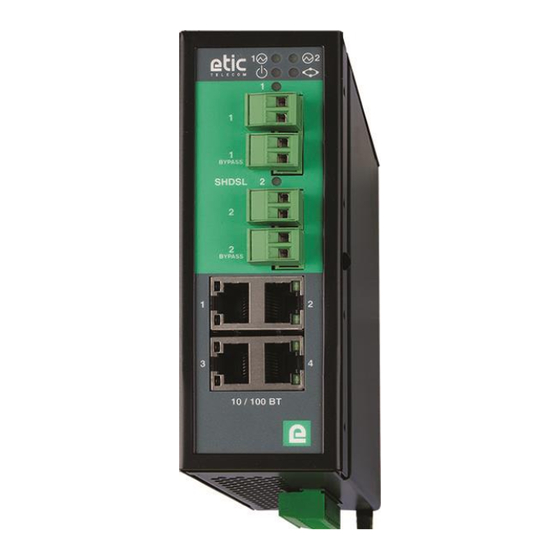

- Page 19 INSTALLATION XSLAN+BP2400 For XSLAN+BP22XX : See XSLAN+12XX XSLAN+4200 XSLAN+BP4200 The By-passed ports are port 3 and port 4 only. Page 19 DOC_DEV_XSLAN+_User guide_B...
- Page 20 INSTALLATION Ground terminal Description Symbol FASTON male lug 6.35 mm 2 positions screw terminal: Supply voltage 1 Position 1 at back - Protected against reverse polarity Position Signal Function Power 1 + +V : 12 – 48 V DC Power 1 - 0V isolated from the enclosure 2 positions screw terminal: Supply voltage 2 Position 1 at back - Protected against reverse polarity...
- Page 21 INSTALLATION Ethernet RJ45 connector Position Signal Function RJ45 Tx + Emission polarity + Tx - Emission polarity - Rx + Reception polarity + Rx - Reception polarity - N.C. N.C. XSLAN+X220 2 positions screw terminal: RS485 Position Signal Function RS485 polarity A RS485 polarity B XSLAN+X261 3 positions screw terminal: RS485 isolated...
-
Page 22: Push Button
INSTALLATION IPL-X-220 et IPL-X-230 RJ45 connector: RS232 To connect a DTE Position Signal Direction Function RJ45 CD - 109 Carrier detect RD - 104 Data Reception TD - 103 Data Emission DTR - 108 Data terminal ready SG - 102 Ground DSR - 107 Data set ready... -
Page 23: Led Indicators
INSTALLATION LED indicators LED indicators Depending on models Function Description Power 1 Steady green: The supply voltage 1 is present Power 2 Steady green: The supply voltage 1 is present Steady green: The unit is ready Slow blinking green: The unit is busy Steady red: Startup (15 s) –... -
Page 24: Safety Instructions
INSTALLATION Safety instructions The product shall be installed in a fire electrical resistant cabinet by a qualified operator. The product shall be connected only to equipments that comply with the IEC60950-1 or IEC62368-1 standards and that meet the following classifications: IEC60950-1 : Limited power circuits and SELV type –... -
Page 25: Din Rail Mounting
INSTALLATION DIN rail mounting Mounting the unit on the 35 mm horizontal DIN rail, Removing the unit from the DIN rail, Cooling The product is designed to be mounted on a 35mm DIN rail. To avoid obstructing the airflow around the unit, the spacing must be at least 25 mm above and below, and 10 mm left and right. -
Page 26: Isolation And Earthing
INSTALLATION Isolation and earthing The enclosure of the XSLAN+ is metallic ; For safety and EMC reasons, the ground terminal (on the underside) must be connected to the protective earth of the installation. The minus polarity of the supply voltage is common with the minus voltage of the electronic board (usually called 0V) and is isolated from the enclosure. -
Page 27: Rs422 Isolated Serial Connection (Xslan+X260)
INSTALLATION RS422 isolated serial connection (XSLAN+X260) The polarization and termination resistors can be selected with DIP switches. The termination resistor must be enabled when the product is located at the extremity of the RS422 bus. The polarization resistors must be enabled by one device of the bus. -
Page 28: Rs485 Isolated Serial Connection (Xslan+X261)
INSTALLATION RS485 isolated serial connection (XSLAN+X261) The polarization and termination resistors can be selected with DIP switches. The termination resistor must be enabled when the product is located at the extremity of the RS485 bus. The polarization resistors must be enabled by one device of the bus. -
Page 29: Digital Input And Output
INSTALLATION Digital input and output Digital output : Isolated 500 V Max. voltage : 48 VDC Max. current : 500 mA Digital input : isolated Maximum voltage : 20 VDC Preparing and checking the line 12.1 Type of cable Twisted pair cable The XSLAN+ SHDSL switch is designed to be connected to one or several telephone grade twisted pairs. -
Page 30: Crosstalk Interference
INSTALLATION 12.2 Crosstalk interference If the cable is made of several pairs, each pair can be used to transmit a particular SHDSL connection ; however the SHDSL signal transmitted in one pair may disturb the SHDSL signal transmitted in another one, and, in some cases, may decrease the effective data rate of both SHDSL connections. -
Page 31: Point To Point Connection Using Two, Three Or Four Twisted Pairs
INSTALLATION 13.2 Point to point connection using two, three or four twisted pairs An aggregated link is a link between two XSLAN+ that uses two or three or four twisted pairs to multiply the total throughput (depending on model). When performing a point to point link to doubled (XSLAN+2XXX) or tripled or quadrupled (XSLAN+4200) the data rate, it is recommended to wire pairs in an orderly way, as shown below, to make the configuration and the diagnostic easier. -
Page 33: Preparing The Setup
PREPARING THE SETUP PREPARING THE SETUP Connecting a PC for configuration Overview The XSLAN+ is configured using a PC with an HTML browser. No additional software is required. Online help : For most pages of the administration server an help page is available by clicking located at the top right of the page. -
Page 34: First Configuration
PREPARING THE SETUP First configuration Step 1 : Create or modify the PC TCP/IP connection Assign to the PC an IP address different but consistent with the factory IP address of the XSLAN+. For the first configuration, assign for instance 192.168.0.1 to the PC. Step 2 : Connect the PC to the XSLAN+ Connect the PC directly to the XSLAN+ with any Ethernet cable (straight or cross-wired);... -
Page 35: Temporary Return To The Factory Settings
EticFinder can be used. This software detects all ETIC branded products on a local network. After starting the software, click on the "Search" button, and when the product list is displayed, double-click on the product address to access the html server. -
Page 36: Protecting The Access To The Administration Server
PREPARING THE SETUP Protecting the access to the administration server • In the menu, choose Setup > Security > Administration rights • Enter a user name and password to protect the administration server. • Tick the Password protect the web site access checkbox If the username and password to access the administration server are lost, you have to temporarily return to... -
Page 37: Annex 1 : Shdsl Data Rate Versus Distance
ANNEX 1 ANNEX 1 : SHDSL data rate versus distance The table below shows the data rate which is possible to get on a SHDSL link depending on the wire diameter and the distance. These values are indicative in noise free environment. Distance versus data rate through one pair Data rate 192Kb/s... - Page 38 13, Chemin du Vieux Chêne 38240 Meylan - France Tel : +33 (0)4 76 04 20 00 contact@etictelecom.com www.etictelecom.com...
