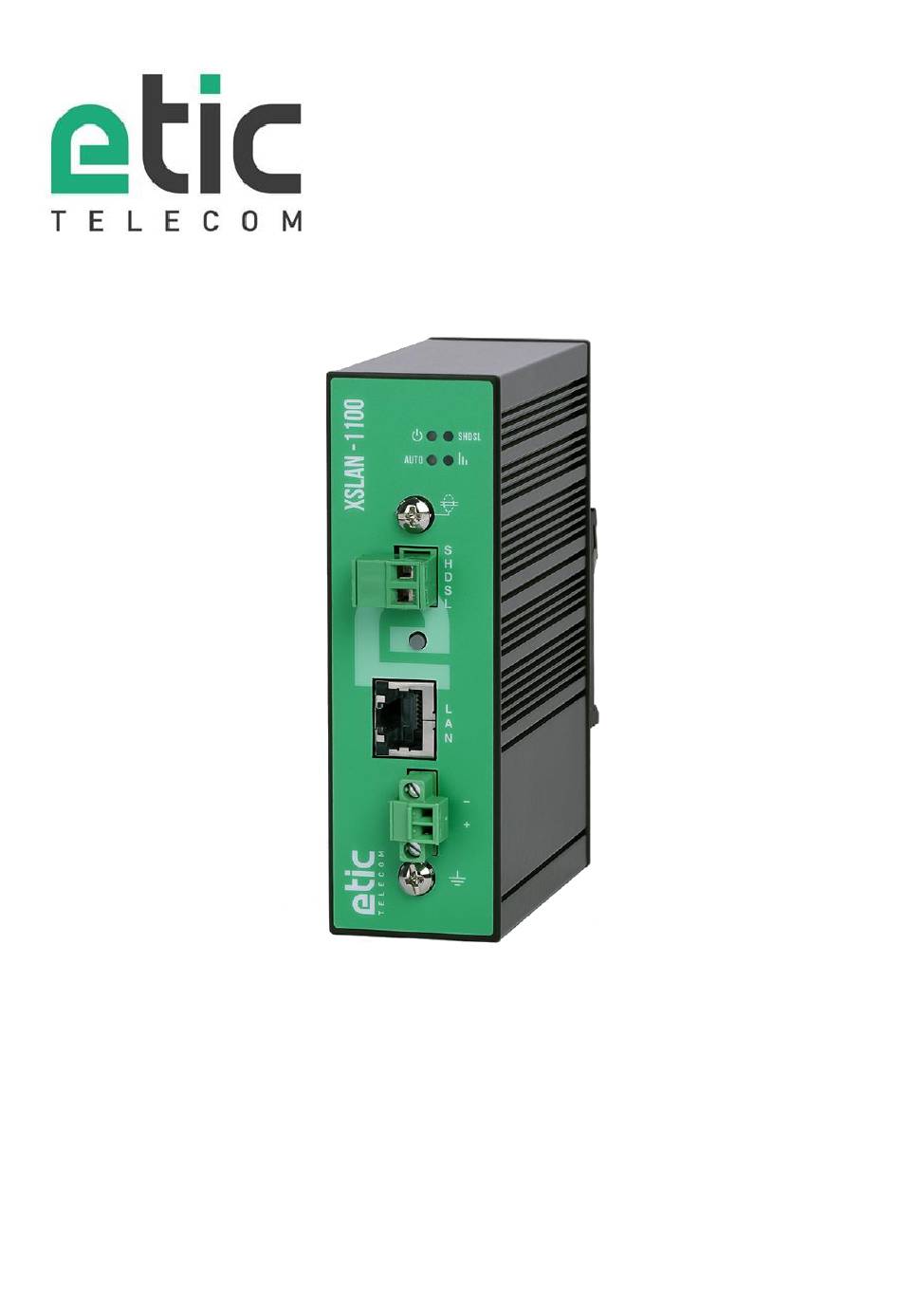

- Page 1 XSLAN-1100 Switch SHDSL _________________ USER GUIDE _________________ DOC_DEV_XSLAN-1100_User guide_A...
- Page 2 The product XSLAN-1100 is designed and manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 DOC_DEV_XSLAN-1100_User guide_A...
- Page 3 DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares under sole responsibility that the listed devices conform to the Electromagnetic Compatibility (EMC) Directive 2014/30/UE, the Low Voltage Directive (LVD) 2014/35/UE, the Restriction of the use of certain Hazardous Substances (RoHS 2) Directive 2011/65/UE.
-
Page 5: Table Of Contents
TABLE OF CONTENTS OVERVIEW ............................. 7 Purpose of this manual ............................ 7 Specifications..............................7 EMC & Environment compliances ........................9 Product overview ............................11 INSTALLATION ........................... 13 Description ..............................13 Dimensions ............................13 Connectors ............................13 Push-buttons ............................15 LED indicators ............................16 Safety instructions ............................ -
Page 7: Overview
OVERVIEW OVERVIEW Purpose of this manual The present user guide describes the features and the installation of the SHDSL switch XSLAN-1100. In the rest of the document the term "XSLAN" is also used to designate the product. Specifications General characteristics... - Page 8 PRESENTATION ETHERNET & IP Ethernet 10/100 Mb/s Half/Full duplex Auto MDI/MDIX Switch Store and forward - 1024 MAC addresses Redondancy RSTP - IEEE 802.1D / 802.1Q VLAN IEEE 802.1Q IPV4 and IPV6 IP address Multicast and broadcast filtering IP router Static routes RIP V2 - OSPF RFC 2474, 2475, 2597, 2598 «...
-
Page 9: Emc & Environment Compliances
OVERVIEW EMC & Environment compliances EMC Immunity, EN61000-6-2 Standard Criteria Port Level pass EN61000-4-2 +/-4kv contact Enclosure +/-8kv air discharge EN61000-4-3 Enclosure 10V/M AM @ 1khz 80Mhz to 3Ghz Radiated EN61000-4-4 SHDSL +/- 2kv Burst Power supply +/- 2kv Ethernet +/- 2kv EN61000-4-5 +/- 5kv common mode (Normal and Telecom... - Page 10 PRESENTATION Climatic Standard Test Level EN 60068-2-1 -40 °C - 16 hours – Non-operating Cold -40 °C - 16 hours – Operating EN 60068-2-2 +85 °C - 16 hours – Non-operating Dry heat +70 °C - 16 hours – Operating EN 60068-2-14 -25 °C à...
-
Page 11: Product Overview
1 twisted pair The XSLAN-1100 is a « Plug & Play » product. It does not require any configuration. Just make the different connections. The SHDSL link is established in a few tens of seconds. Equipment located on either side of the line can communicate with each other as if they were connected locally. -
Page 13: Installation
INSTALLATION INSTALLATION Description Dimensions All dimensions in millimeters. Connectors Shield terminal SHDSL screw block Ethernet Power supply screw block Ground terminal Page 13 DOC_DEV_XSLAN-1100_User guide_A... - Page 14 INSTALLATION Ground terminal Description Symbol M4 screw terminal Shield terminal Description Symbol M4 screw terminal – Shield connection of the transmission cable 2 positions screw terminal: Supply voltage Protected against reverse polarity Position Signal Function Power 1 + 12 - 24 VDC Power 1 - 2 positions screw terminal: SHDSL Position...
-
Page 15: Push-Buttons
INSTALLATION Push-buttons Front panel push-button: B1 LED AUTO Pressing the PB Function 3 seconds Steady green Automatic connection mode No IP address and no access to the Web pages Rear panel push-button: B2 Pressing the PB Function During operation Flashing red Temporary return to the factory configuration. -
Page 16: Led Indicators
INSTALLATION LED indicators LED indicators Function Description Power off Steady green The unit is ready Opération Slow blinking green The unit is busy Steady red Startup (30s) – Otherwise hardware or software failure Fast blinking red Firmware download in progress Port disable SHDSL Blinking... -
Page 17: Din Rail Mounting
In operation, the consumption can reach 2W during short moments (peak). Earthing The enclosure of the XSLAN-1100 is metallic ; For safety and EMC reasons, the ground terminal must be connected to the protective earth of the installation. Page 17... -
Page 18: Preparing And Checking The Line
INSTALLATION Preparing and checking the line Type of cable Twisted pair cable The XSLAN+ SHDSL switch is designed to be connected to one or several telephone grade twisted pairs. The conductor diameter must be included between 0.4 mm and 1 mm. A cable may be composed of several twisted pairs. -
Page 19: Protecting The Shdsl Switch From Lightning
INSTALLATION Protecting the SHDSL switch from lightning The XSLAN is coupled to the line by a transformer which provides isolation between the circuit board and the line. Moreover, the XSLAN+ is equipped with internal protections against overvoltage. However, if the line is vulnerable to thunderstorms, for example if it is an air line, or if it is several kilometers long, or if the installation is in a very exposed area, it is recommended to protect each XSLAN with a surge protector, as described below. -
Page 21: Commissioning
La procédure de mise en service ci-dessous décrit le mode « Plug & play », sans avoir besoin de configurer les XSLAN-1100. On se référera au chapitre suivant si l’on souhaite utiliser des fonctions avancées. The commissioning procedure below describes the "Plug & play" mode, without the need to configure the XSLAN-1100s. -
Page 23: Preparing The Advanced Setup
VLANs, QoS or SNMP administration or to perform advanced diagnostics. In this case, the XSLAN-1100 is configured and managed by a PC with a web browser. No additional software is required. -
Page 24: First Configuration
PREPARING THE ADVANCED SETUP First configuration • Make sure the AUTO indicator is off. If not, press the push button on the front panel (B1) until the AUTO indicator goes off (about 3s). • Create or modify the PC TCP/IP connection •... -
Page 25: Temporary Return To The Factory Settings
EticFinder can be used. This software detects all ETIC branded products on a local network. After starting the software, click on the "Search" button, and when the product list is displayed, double-click on the product address to access the html server. -
Page 26: Protecting The Access To The Administration Server
• Set up SNMP • Set up QoS • Set up the routing functions For detail about the configuration and the diagnostics, refer to the XSLAN-1100 / XLAN+ / XSMIL Setup Guide: Reference : “DOC_DEV_XS_Setup guide_x” Page 26 DOC_DEV_XSLAN-1100_User guide_A... -
Page 27: Annex 1 : Shdsl Data Rate Versus Distance
ANNEX 1 ANNEX 1 : SHDSL data rate versus distance The table below shows the data rate which is possible to get on a SHDSL link depending on the wire diameter and the distance. These values are indicative in noise free environment. Distance versus data rate through one pair Data rate 192Kb/s... - Page 28 13, Chemin du Vieux Chêne 38240 Meylan - France Tel : +33 (0)4 76 04 20 00 contact@etictelecom.com www.etictelecom.com...
