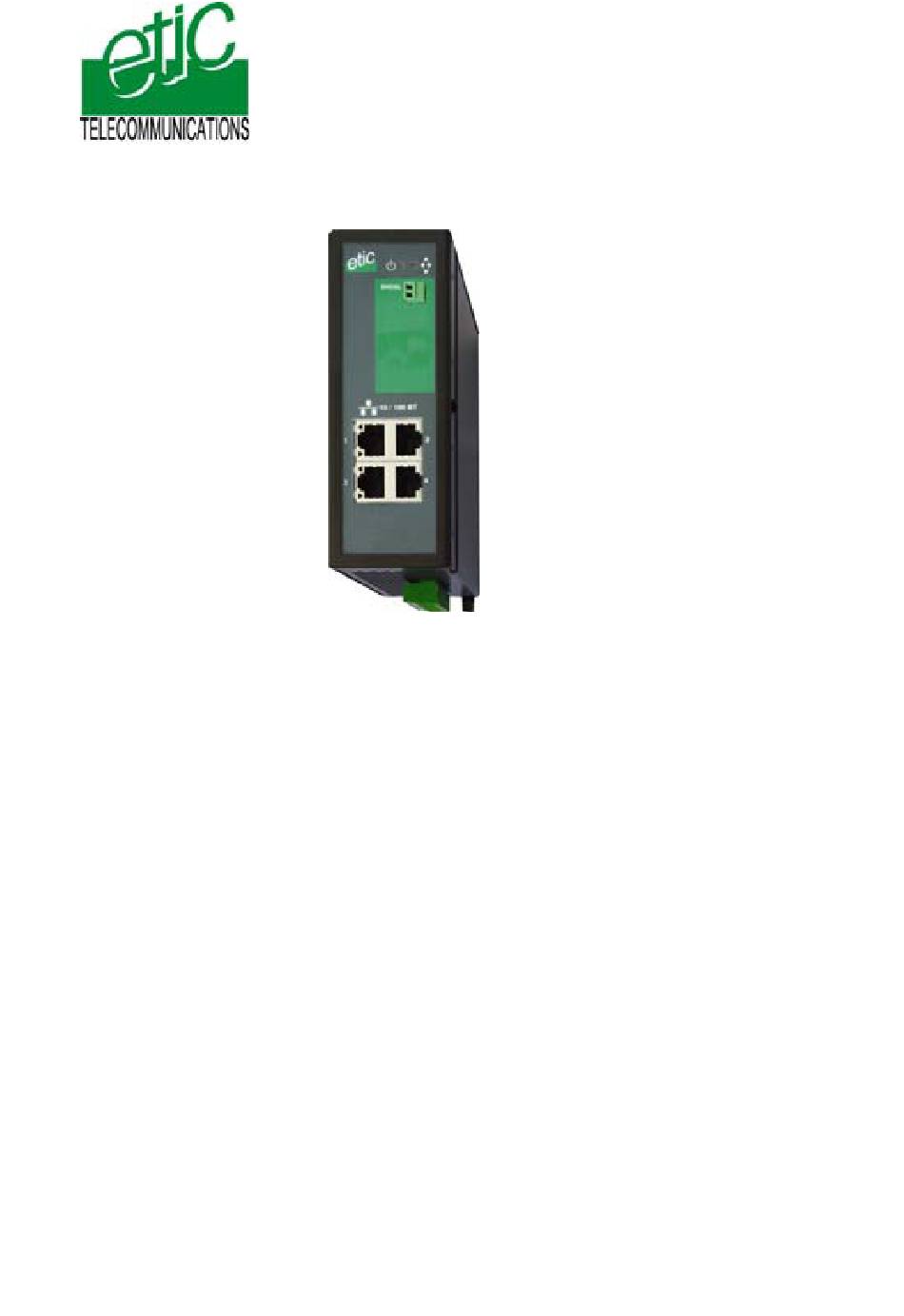

- Page 1 XSLAN+140 Ethernet Extender SHDSL Switch ________________ Installation manual Document reference : 9020409-01 _________________...
- Page 2 INSTALLATION MANUAL Page 2 XSLAN+140...
-
Page 3: Table Of Contents
Principle ................11 12.2 Configuration steps ............14 12.3 Step 1 : Setting-up the « STU-R » XSLAN+140 ....14 12.4 Step 2 : Setting-up the « STU-C » XSLAN+140 ....14 12.5 Step 3 : Testing the connection ........14 CONNECTING THE XSLAN+ TO THE LINE ........ -
Page 4: Products Identification
The product itself is delivered with a CD including the user manual and the eticfinder software tool with which you can discover the IP address of any product manufactured by ETIC TELECOM and connected to an Ethernet network. Page 4... -
Page 5: Product Overview
INSTALLATION MANUAL Product overview The XSLAN+140 provides one shdsl interface to extend an Ethernet network over a twisted pair. XSLAN+140 Page 5... -
Page 6: Dimensions
INSTALLATION MANUAL Dimensions Connectors Page 6 XSLAN+140... - Page 7 SHDSL line conductor (the two wires can be inverted) RJ45 connector : Ethernet Position Signal Function Tx + Emission polarity + Tx - Emission polarity - Rx + Reception polarity + Rx - Reception polarity - N.C. N.C. XSLAN+140 Page 7...
-
Page 8: Led Indicators
The unit is ready At power on : The product is starting ON red Otherwise : Product failure Not used Flashing SHDSL connection slowly Shdsl SHDSL connection established Flashing SHDSL connection established ; traffic quickly across the line Page 8 XSLAN+140... -
Page 9: Dip Switches
STU_C - Fixed - 4480 kbit/s STU_C - Fixed - 5696 kbit/s STU_C - Fixed - 7168 kbit/s STU_C - Fixed - 9024 kbit/s STU_C - Fixed - 11292 kbit/s STU_C - Fixed - 15288 kbit/s SW 6 Must be left OFF XSLAN+140 Page 9... -
Page 10: Din Rail Mounting
INSTALLATION MANUAL DIN rail mounting Mounting the unit on the DIN rail This unit should be mounted on 35 mm DIN-rail, horizontally mounted. Removing the unit from the DIN rail Page 10 XSLAN+140... -
Page 11: Cooling
The SHDSL switch which initiates the connection is called the STU-C, while the one which accepts the connection is called the STU-R switch. It is why, a line must be connected on the one hand to an XSLAN+140 set as an STU-C switch and the other one set as an STU-R switch. - Page 12 That profile has to be advised also if disconnections are observed when using the standard profile or the performance profile. Page 12 XSLAN+140...
- Page 13 That profile makes possible to get a high data rate – up to 10 Mb/s – over a short distance (typically shorter than 1 Km). Remark : In some particular cases, the data rate can be forced with the DIP switch : the DIP switches table. XSLAN+140 Page 13...
-
Page 14: Configuration Steps
Testing the connection 12.3 Step 1 : Setting-up the « STU-R » XSLAN+140 • Set the SW1 DIP switch OFF if no IP address is assigned to the XSLAN+ or ON if an IP address is assigned to the XSLAN+. -
Page 15: Connecting The Xslan+ To The Line
If the cable is made of several pairs, each pair can be used to transmit a particular shdsl connection ; however the shdsl signal transmitted in one pair may disturb the shdsl signal transmitted in another one, and, in some cases, may decrease the effective data rate of both shdsl connections. XSLAN+140 Page 15... -
Page 16: Protecting The Shdsl Switch From Lightning
Protecting the shdsl switch from lightning if the line is exposed to lightning, we advise to use an surge arrester at each end of the line and to connect the shield of the cable to the earth. Page 16 XSLAN+140... -
Page 17: Connecting The Shdsl Switch To The Line
• Launch Internet explorer 8 or a further version and enter the IP address of the XSLAN+. The homepage of the html diagnosis server is displayed. • Select « Set up > IP address ». • Enter the new IP address assigned to the XSLAN+ and save. XSLAN+140 Page 17... -
Page 18: Diagnostic
• Check that each wire of the line, including intermediate screw terminals along the line, is correctly squeezed. • By pass temporarily the surge arresters. • Check the cable shield is correctly connected to the ground. Page 18 XSLAN+140... -
Page 19: Restoring The Factory Default Configuration
Deleting the current configuration and restoring the factory default configuration When the power is switched ON while the push-button is pressed, the current configuration is deleted and the factory default configuration is restored. XSLAN+140 Page 19... - Page 20 The XSLAN+ SHDSL switch is designed and manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE Hotline : + (33) (0)4-76-04-20-05 FAX : + (33) (0)4-76-04-20-01 E-mail : hotline@etictelecom.com Web : www.etictelecom.com...
