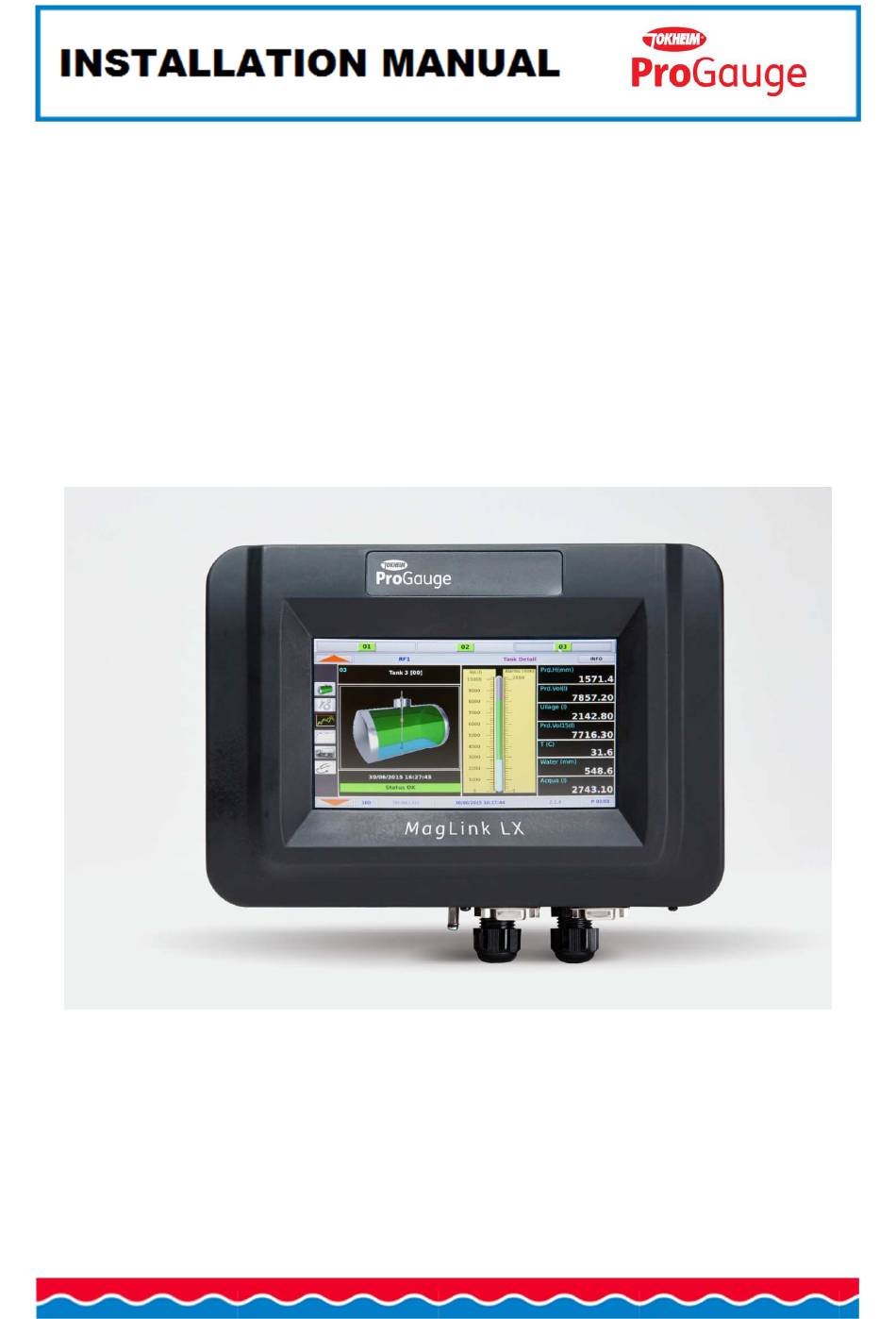

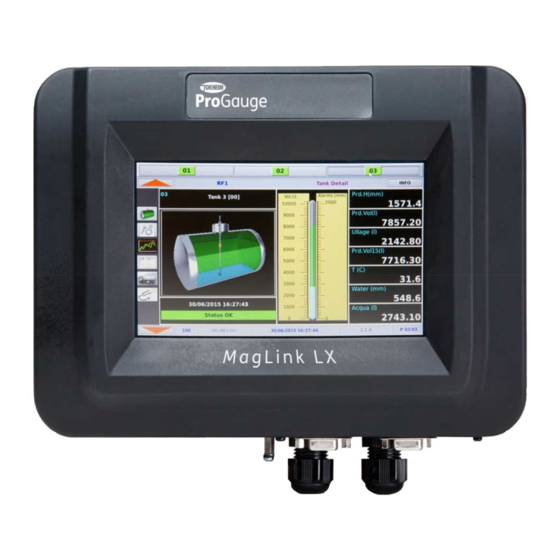

- Page 1 MAGLINK LX Rev. 09, – April 2016...
-
Page 2: Table Of Contents
Installation Manual MAGLINK LX | Summary UMMARY PREFACE ................................3 GENERAL WARNINGS ............................3 INTRODUCTION ..............................4 GENERAL INDICATIONS ............................5 ..........................7 ABELLING AND TYPE DESIGNATION INSTALLATION ..............................8 ............................8 RELIMINARY WARNINGS ............................8 LACE OF INSTALLATION ............................ -
Page 3: Preface
Installation Manual MAGLINK LX | Preface REFACE Start Italiana S.r.l. has made every effort possible so that this document is complete, accurate and updated. With every revision of the console, the corresponding information is periodically added to the document. Start Italiana S.r.l. reserves the right to make unannounced improvements and/or changes in the product and/or associated programs. -
Page 4: Introduction
Installation Manual MAGLINK LX | Introduction NTRODUCTION The present manual has been prepared in accordance with IEC 82079-1 standards. “Preparation of instructions for use - Structuring, content and presentation - Part 1: General principles and detailed requirements”and according to the ATEX Directive 2014/34/EU concerning equipment and protective systems intended for use in potentially explosive atmospheres. -
Page 5: General Indications
Installation Manual MAGLINK LX | General information ENERAL NDICATIONS The Maglink LX console is shipped in a cardboard box (L 320 x H 224 x D 90 [mm]) and includes the following: • MAGLINK LX console • Connection cable of 220 V with Schuko plug •... - Page 6 Installation Manual MAGLINK LX | General information The following image shows the lower part of the console: The following table lists the elements in the figure: Element Description For firmware updates and back-up of the console (Refer to the "User Manual") For console configuration, and local network connections (Refer to the "Console RJ45 Configuration"...
-
Page 7: Labelling And Type Designation
Installation Manual MAGLINK LX | General information 4.1 Labelling and type designation The following table lists the labels placed on the equipment: Labelling Description The labelling on the outer container contains the following data: • Name and address of the manufacturer •... -
Page 8: Installation
Installation Manual MAGLINK LX | Installation NSTALLATION 5.1 Preliminary warnings. IMPORTANT: The MAGLINK LX console is not explosion-proof IMPORTANT: Explosions and fires can cause damage or even death IMPORTANT: Flammable vapours when mixed with air can cause an explosion. Dangerous areas can occur from the presence of gases or vapours IMPORTANT: Do not install the console in a hazardous area IMPORTANT: Only use fuses of 250 V - 1 A for input power... -
Page 9: Installation Procedure
Installation Manual MAGLINK LX | Installation IMPORTANT: There is high voltage inside the console. IMPORTANT: The electrical connection procedure must be performed by trained and authorized personnel 5.4 Installation procedure The following image shows the console attached to the wall: The following image shows the three mounting screws that allow console opening/closing: –... - Page 10 Installation Manual MAGLINK LX | Installation The following image shows the console opened (Lift the top and disconnect the ribbon cable that connects the top and lower parts): After disconnecting the ribbon cable fix the rear part to the wall (We recommend using Fischer dowels, size 6).
-
Page 11: Modes Of Communication
Installation Manual MAGLINK LX | Connections ODES OF COMMUNICATION The following image shows the open console (front panel removed as explained above): The following table lists the items at the bottom of the console: Element Description PSU protection panel BRA-2SIP barrier for connection to the probes (8+8) Interface to relay –... -
Page 12: Connection To Intrinsically Safe Xmt-Si-485 Probe
Installation Manual MAGLINK LX | Connections 6.1 Connection to intrinsically safe XMT-SI-485 probe The following figure shows how to connect the intrinsically safe probe (XMT-SI-485 model), on the BRA-2SIP barrier type: The following table lists the connections shown in the figure: Connection Specifications Barrier Input... -
Page 13: Connecting The Xmt Explosion Execution
Installation Manual MAGLINK LX | Connections 6.2 Connecting the XMT explosion execution The image below shows how to connect your console to an XMT probe explosion: The XMT model explosion probes must be connected in parallel to the console and directly to the connector CN7 without passing through the intrinsically safe barrier. -
Page 14: Connecting The Rf Receiver (For Xmt-Si-Rf)
Installation Manual MAGLINK LX | Connections 6.3 Connecting the RF Receiver (for XMT-SI-RF) The image below shows how to connect your console to an RF Receiver: The receiver connects directly to connector CN7 without going through the intrinsically safe barrier. In this case the barrier remains unused. -
Page 15: Interface To Relay Diagram Of Connectors
Installation Manual MAGLINK LX | Connections 6.4 Interface to relay diagram of connectors The following image shows the connectors of a Maglink LX slave console: The following table lists the console connectors: Connector Specifications Connector Specifications CANBUS Conn for DVD probes Power input (13 VDC) CANH +12 V... -
Page 16: Modem Connection
Installation Manual MAGLINK LX | Connections The following table lists the console connectors and the meaning of the different LEDs present: Connector Specifications Modem connector/IFSF (optional) LED1 Power LED output to probe Relay 2 status LED (Lit: relay energised) Relay 3 status LED (Lit: relay energised) Relay 4 status LED (Lit: relay energised) Input 6 status LED (Terminal 7) Input 5 status LED (Terminal 6) -
Page 17: Dipswitch Configuration
Installation Manual MAGLINK LX | Connections 6.7 Dipswitch Configuration The following picture shows the inside of the upper side of the console if you observe the dipswitch you can choose different configurations: The following table shows the configuration of the dipswitch: Dipswitch Description OFF = single Gilbarco, ON = Double Gilbarco (required for DCD connections) -
Page 18: Closing And Start Up
Installation Manual MAGLINK LX | Connections ATTENTION: Do not remove the micro SD card, the console cannot work without the SD card 6.9 Closing and start up Re-assemble the top of the console with the lower part fixed to the wall and previously wired. Connect the power cord and turn on the console. -
Page 19: Connect The Console To The Management Systems
Installation Manual MAGLINK LX | Connections 6.10 Connect the console to the management systems The console can be connected via the RS232 port Com 1 on the following operating systems: • DIALOG • GILBARCO • • RETALIX DOMS • ORPAK •... - Page 20 Installation Manual MAGLINK LX | Connections The following picture shows the connection for the DRESSER management system (PIGNONE): The following table lists the connection for the DRESSER management system (PIGNONE): Console (DB9) DRESSER system (PIGNONE) (DB9) PIN 2 PIN 2 PIN 3 PIN 3 PIN 5...
-
Page 21: Maintenance
Installation Manual MAGLINK LX | Maintenance AINTENANCE Maintenance activities are defined and managed in accordance with EN 60079-17. IMPORTANT: Maintenance must be carried out only by authorized personnel or by the manufacturer IMPORTANT: Maintenance of electrical connections must be performed only by personnel trained and experienced (Refer to the installation manual of the console) IMPORTANT: The opening of the console can compromise the level of safety of the equipment, maintenance operations must only be performed by authorized personnel or by... -
Page 22: Support
Installation Manual MAGLINK LX | Safety instructions UPPORT If you need direct assistance from a Start Italiana S.r.l. technician the best solution is to connect the console to the Internet .The console requires public IP address and port 80 opened. All data of interest to the console can then be viewed directly by Start Italiana S.r.l. -
Page 23: Revisions
Installation Manual Revisions MAGLINK LX 10 R EVISIONS The following table lists the revisions to the document: Firmware Revision No. Date Description Revision March 2014 Issue 1.0.0 February 2015 Added com ports inversion 2.0.0 March 2015 Addition of an application description section 2.0.0 April 2015 Addition of a certification and notifications section... - Page 24 START ITALIANA S.r.l. Via Pola 6 20813 Bovisio Masciago (MB) Italia Tel. +39 0362 1581465 Fax +39 0362 1581464 assistenza@startitaliana.it www.startitaliana.it...
