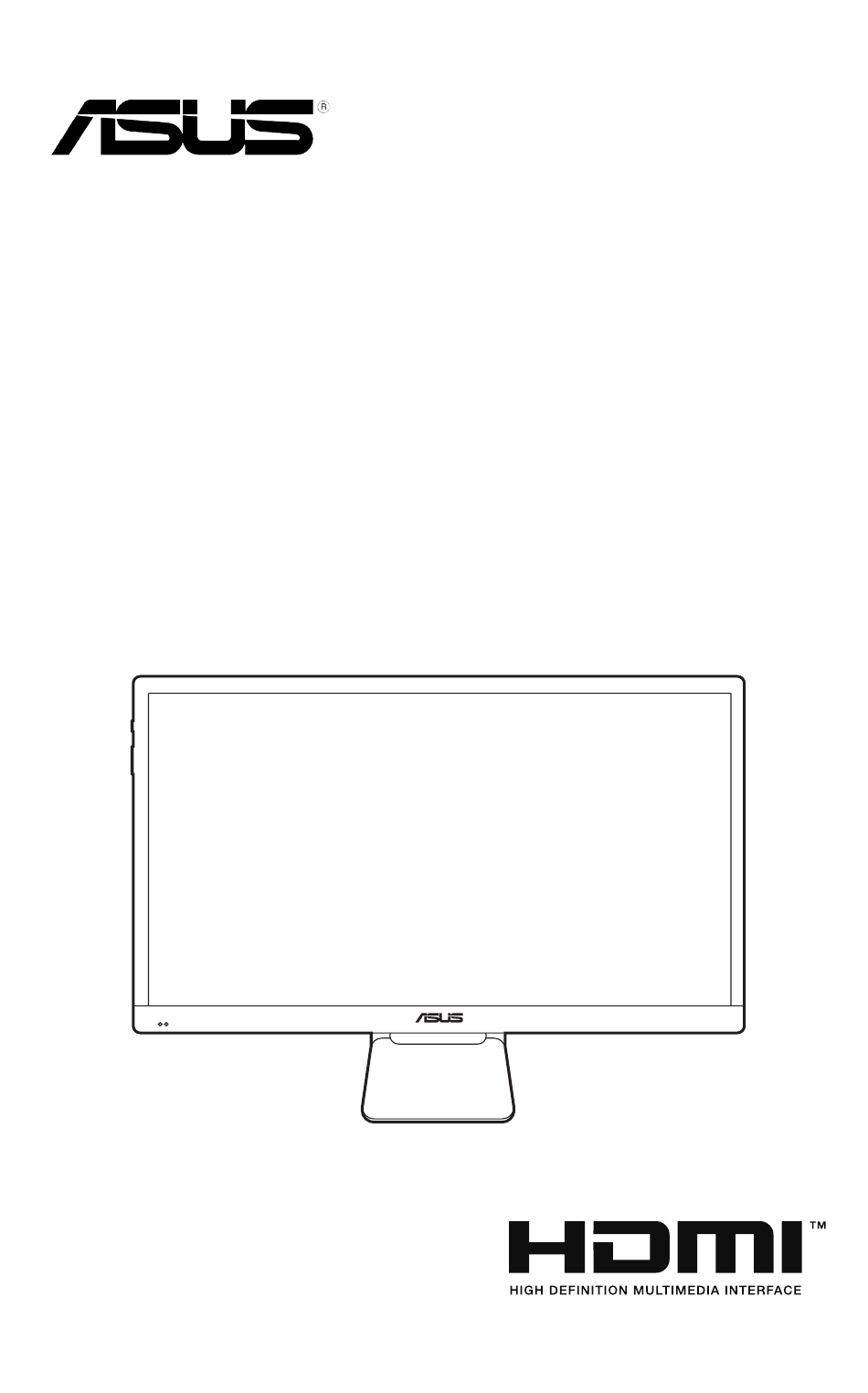

- Page 1 PQ22U Series Portable OLED Monitor User Guide...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Contents....................... iii Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Other Functions .............. 1-3 Chapter.2:..Setup 2.1. Attaching.the.arm/base..............2-1 2.2. -
Page 4: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 6: Care.&.Cleaning
This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not • be placed in municipal waste. Please check local regulations for disposal of electronic products. AEEE.yönetmeliğine.uygundur Care & Cleaning •... -
Page 7: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. - Page 8 viii...
-
Page 9: Welcome
Thank you for purchasing the ASUS OLED monitor! The latest widescreen OLED monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor.introduction
Monitor introduction 1.3.1. Front.view Power button/power indicator • Turns the monitor on/off when the OSD menu is not displayed. • The color definition of the power indicator is as the below table. Status Description Blue Amber Standby mode • Enters or exits the OSD menu after the monitor is turned on. •... -
Page 11: Other Functions
This port is for connection with an HDMI compatible device. 1.3.2. Other.Functions • The monitor supports HDR format. When detecting HDR content, an "HDR ON" message will pop up and display in the Information page. ASUS PQ22U Series OLED Monitor... - Page 12 Chapter 1: Product introduction...
-
Page 13: Attaching.the.arm/Base
• Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from +2˚ to +20˚. (Tilt) +2° ~ +20° ASUS PQ22U Series OLED Monitor... -
Page 14: Monitor.standing.positions
Monitor standing positions You can also stand up the monitor in several positions using the leather case. The OSD menu item will automatically rotate when the monitor rotates. ASUS PQ22UC ASUS PQ22UC Splendid Splendid StandardMode HDMI 3840 x 2160@ 30Hz... -
Page 15: Connecting.the.cables
Input Select item in the OSD menu. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in blue to show that the monitor is ON. ASUS PQ22U Series OLED Monitor... - Page 16 Chapter 2: Setup...
-
Page 17: Osd.(On-Screen.display).Menu
Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. To activate this function, you need to do the following: turn off Ambient Effect and disable HDR on your device. ASUS PQ22U Series OLED Monitor... - Page 18 ASUS PQ22UC Splendid Standard Mode HDMI 3840 x 2160@ 30Hz Standard Mo de sRGB Mode Adobe RGB Mode Rec. 2020 Mode DCI-P3 Mode Rec. 709 Mo de User Mode 1 User Mode 2 •. Standard.Mode: Best choice for document editing with SplendidPlus Video Enhancement.
- Page 19 Current Splendid color mode reset: Resets the color settings of current color mode to the factory default value. All Splendid color mode reset: Resets the color settings of all color modes to the factory default value. ASUS PQ22U Series OLED Monitor...
- Page 20 Image Set the image related setting from this menu. ASUS PQ22UC Image Standard Mode HDMI 3840 x 2160@ 30Hz Sharpn ess Aspect Control •. Sharpness: The adjusting range is from 0 to 100. •. Aspect.Control: Adjusts the aspect ratio to full, 4:3, 1:1 or OverScan.
- Page 21 Up button for 5 seconds to switch the measurements between metric and imperial. •. Alignment.Grid: The grid patterns facilitate designers and users to organize content and layout on a page and achieve a consistent look and feel. ASUS PQ22U Series OLED Monitor...
- Page 22 Alignment Grid Input.Select. In this function, you can select your desired input source. ASUS PQ22UC Input Select Standard Mode HDMI 3840 x 2160@ 30Hz HDMI DisplayPo rt- C- 1 DisplayPo rt- C- 2 If one Thunderbolt port is plugged. the other one outputs DisplayPort signal only.
- Page 23 Medium: Sensor distance is around 50 cm. High: Sensor distance is around 70 cm. The detective range may be slightly different if user wears dark or bright colored clothing. Set the sensitivity to High when wearing black or other dark clothes. ASUS PQ22U Series OLED Monitor...
- Page 24 If the function is enabled and no activity is detected, the monitor will gradually lower its brightness while displaying energy saving messages. The monitor resumes normal brightness once it detects human activity again. After a set period of time into power saving mode, the monitor will enter standby mode. Please do not put any object too close to the Human Sensor to avoid any interference.
-
Page 25: Specifications.summary
USB-C cable, color calibration testing report, leather case, carry bag Compliance.and.Standards Energy Star, UL/cUL, CB, CE, ErP, FCC, ICES-3, CCC, CEL, BSMI, CU, RCM, VCCI, UkrSEPRO, J-MOSS, RoHS, WEEE, PSE, Windows 7, 8.1 and 10 WHQL, Mac Compliance** *Specifications.are.subject.to.change.without.notice. **Requires.Mac.OS.10.10.x,.10.11.x,.10.12.x. ASUS PQ22U Series OLED Monitor... -
Page 26: Troubleshooting.(Faq)
Troubleshooting (FAQ) Problem Possible.Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. • Check if the power switch is ON. The power LED lights amber and there is •... -
Page 27: Supported.operating.modes
2560x1080 59.978(N) 66.636(P) 181.25 2560x1440 59.951(N) 88.787(P) 241.50 3840x2160 24(P) 52.593(N) 266.75 3840x2160 54.786(N) 278.75 3840x2160 30(P) 67.5(N) 3840x2160 50(P) 111.174(N) 3840x2160 (Reduced 60(N) 133.313(P) 533.25 Blanking) 3840x2160 60(N) 135(P) 594.0 When.the.monitor.is.operating.in.the.video.mode.(ie,.not.displaying.data).using.the.HDMI. connector,.the.following.high.definition.modes.shall.be.supported.in.addition.to.standard.definition. video. ASUS PQ22U Series OLED Monitor 3-11... - Page 28 Resolution Vertical.Frequency.(Hz) Horizontal.Frequency.(KHz) 56.25 1920 × 1080p 59.94 67.43 67.5 28.13 1920 × 1080i 59.94 33.72 33.75 59.94 31.47 1440x480P 31.5 1440x576P 31.25 37.5 1280 × 720p 59.94 44.95 720 × 576p 31.25 59.94 31.47 720 × 480p 31.5 59.94 31.47 640 ×...
