Connecting Your Monitors and Headphones

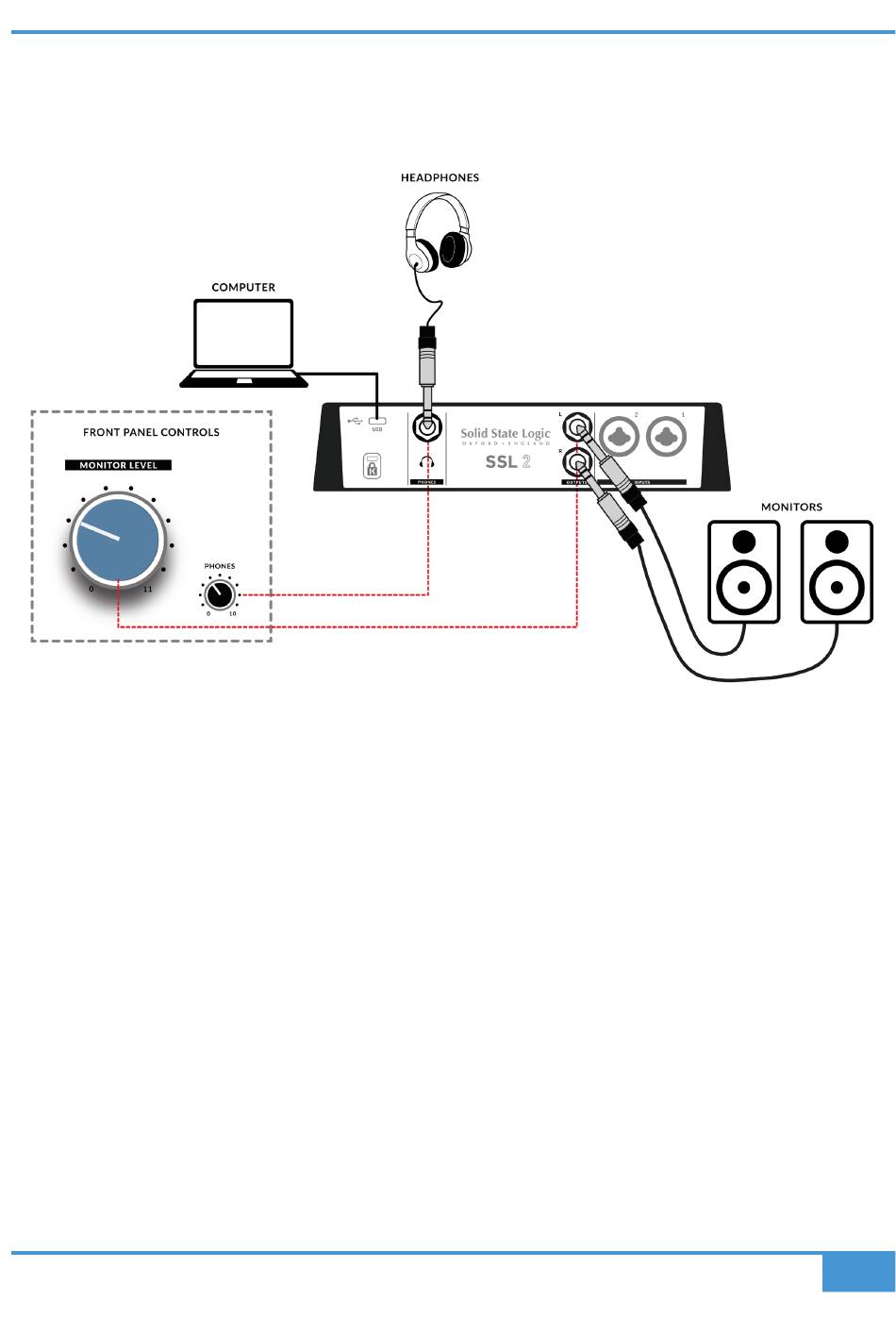

The diagram below shows where to connect your monitors and headphones up to your SSL 2. It also shows the interaction of the
front panel controls with the various output connections on the rear.
•
The large front panel MONITOR LEVEL control affects the output level of the balanced TRS jack outputs L and R. We
recommend that you connect your monitors to these outputs.
•
The front panel PHONES control affects the level output on the rear PHONES connector.
SSL 2 User Guide
How-To / Application Examples
13
