Connections Overview

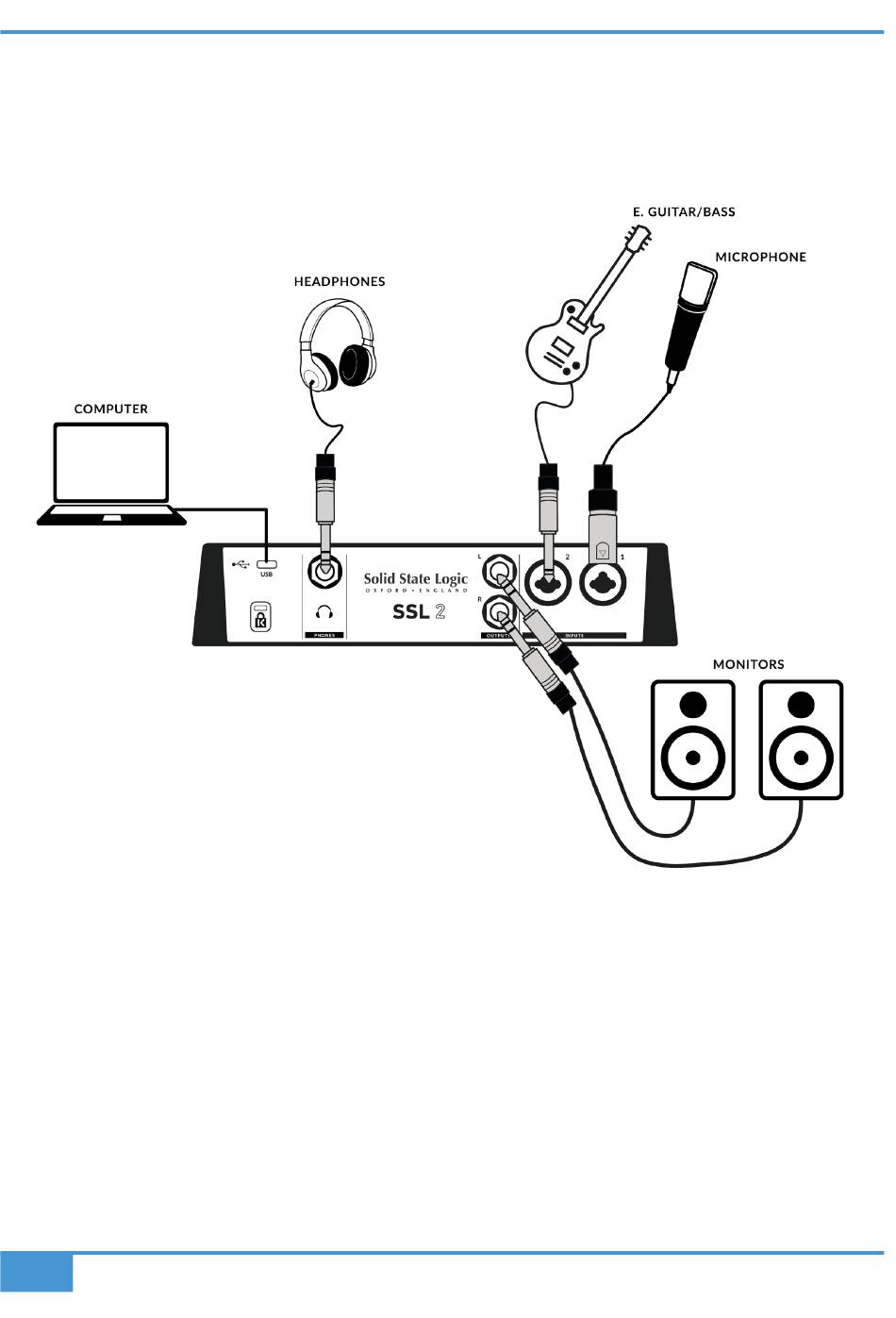

The diagram below illustrates where the various elements of your studio connect to SSL 2 on the rear panel.
This diagram shows the following:
•
A microphone plugged into INPUT 1, using an XLR cable
•
An electric guitar/bass plugged into INPUT 2, using a TS jack cable (standard instrument cable)
•
Monitor speakers plugged into OUTPUT L (Left) and OUTPUT R (Right), using TRS jack cables (balanced cables)
•
A pair of headphones connected to PHONES
•
A computer connected to the USB 2.0, 'C' Type port using one of the provided cables
