QUICK START
G U I D E
GWR 2G/3G Routers
GWR352 WV, GWR202/252/352

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWR352 WV, GWR202 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geneko GWR352 WV, GWR202

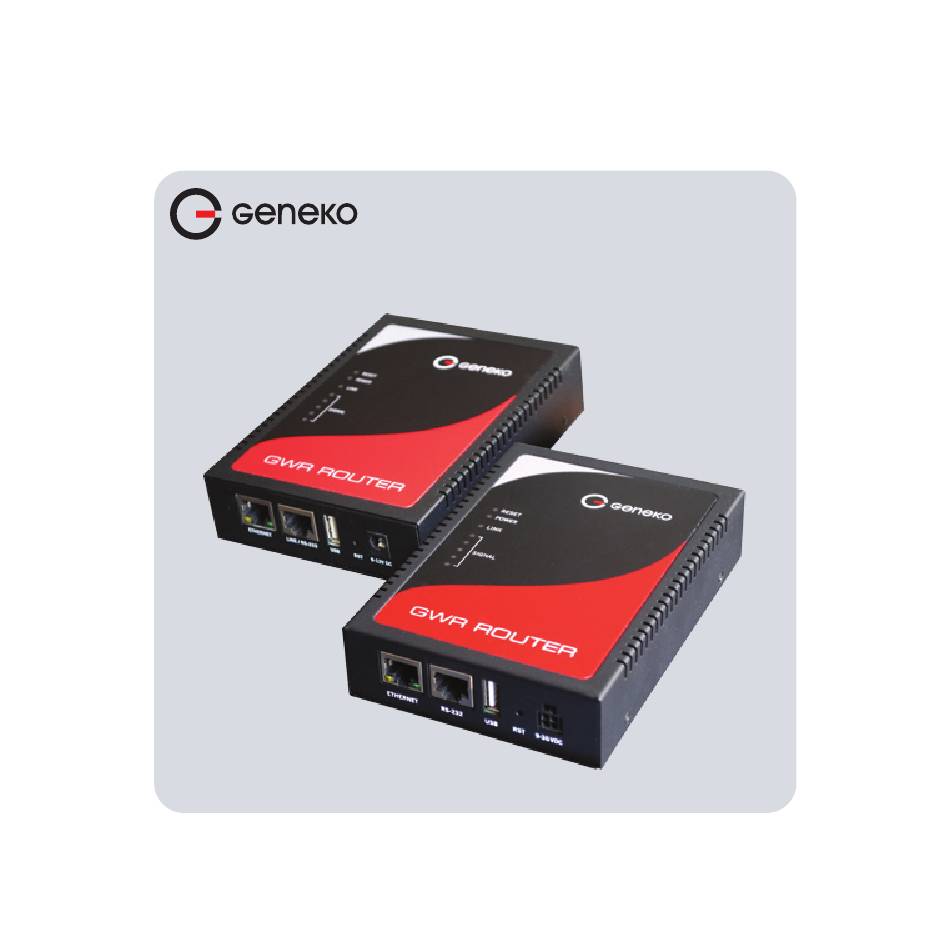

  • Page 1 QUICK START G U I D E GWR 2G/3G Routers GWR352 WV, GWR202/252/352...
  • Page 2: What's In The Box

    WHAT’S IN THE BOX: 1. Geneko GWR router 2. AC/DC adapter 3. Ethernet cable 4. RS-232 console cable 5. Antennas GSM/GPRS/EDGE/UMTS/HSPA+ (850/900/1800/1900/2100 MHz), 1 or 2 pieces 6. DIN rail kit (optional accessory) 7. GSM antenna extension cord(s) with magnetic base...
  • Page 3: Ports And Connectors

    PORTS & CONNECTORS GWR202/252/352 models GWR352 WV model Front Panel Front Panel ETHERNET RS-232 RESET POWER ETHERNET RS-232 RESET POWER PORT CONSOLE PORT BUTTON PORT PORT CONSOLE PORT BUTTON PORT PORT PORT AUXILIARY AUXILIARY MODEM MODEM MAIN MAIN Rear Panel Rear Panel ANTENNA ANTENNA...
  • Page 4: Inserting Sim Cards

    INSERTING SIM CARDS Warning: do not insert or eject SIM cards while the router is powered on. Make sure to disconnect router from AC/DC adapter before inserting or ejecting SIM cards. * Push SIM card 1 holder eject button until SIM card 1 holder is slightly protruded from back panel.
  • Page 5: Connecting Router

    CONNECTING ROUTER Warning: Use only the router’s box power supply. * Connect GSM antennas to the router. Make sure that antennas are well tightened (however, don't use too much force in order not to damage antenna connector on the router). * Plug AC/DC adapter cable into power port on the router.
  • Page 6: Administration Web Page

    ADMINISTRATION WEB PAGE * Add network 192.168.1.0/24 to the interface on the PC * Optional: Ping 192.168.1.1 to check if the router is accessible * Open the Web browser (e.g. Firefox, Chrome, Safari, Opera, or Internet Explorer) and enter the following address: http://192.168.1.1 * When prompted for your login credentials, use "admin"...
  • Page 7: Quick Setup

    QUICK SETUP * Once logged in to administration web page, click on SETTINGS -> MOBILE SETTINGS link from the menu on the left side of the screen. * Your GSM operator should provide you with PROVIDER, USERNAME (optional), PASSWORD (optional), APN and PIN (optional) information. * If SIM card is present, enter this into corresponding fields, and then click on SAVE button.
  • Page 8: Turn Logging On

    * Log is now available for download. It will be downloaded to your computer when you click on EXPORT LOG button. Official web site: https://www.geneko.rs Register on web site for support. GENEKO is the registered trademark of GENEKO Company. © 2018 GENEKO Co. All rights reserved.
