Geneko GWR402HSW-S Quick Start Manual

Gwr hs router

Advertisement

Quick Links

TURN LOGGING ON
When troubleshooting router make sure logs are turned on.
You should send logs to Geneko when submitting support request.
* Click on MANAGEMENT -> LOGS link from the menu on the left side of the
screen.
* Click on LOCAL SYSLOG radio button, then click on SAVE button.
* Set appropriate log size and click on SAVE button.
* Log is now available for download from router to your computer when you
click on EXPORT LOG button.
O cial web site: https://www.geneko.rs
Register on web site for support.
GENEKO is the registered trademark of GENEKO Company.
© 2015 GENEKO Co. All rights reserved.

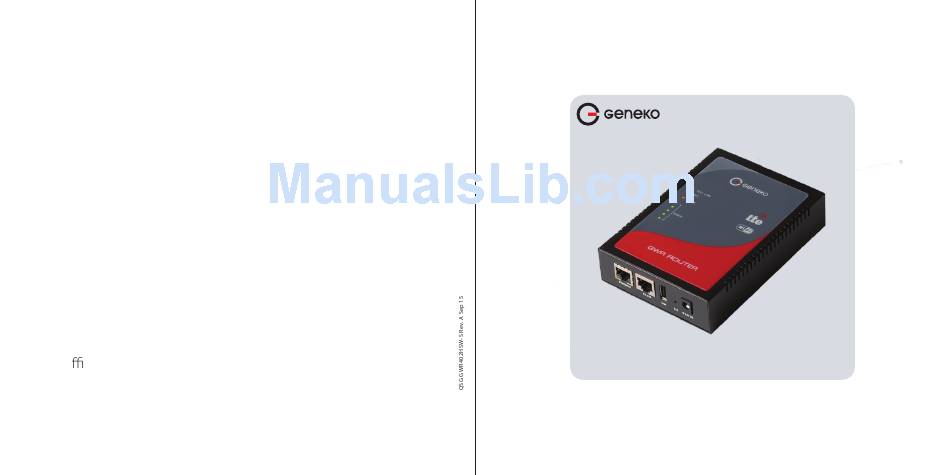

QUICK START
G U I D E
GWR HS Router
GWR402HSW-S

Advertisement

loading
Need help?

Need help?

Do you have a question about the GWR402HSW-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Geneko GWR402HSW-S

  • Page 1 G U I D E When troubleshooting router make sure logs are turned on. You should send logs to Geneko when submitting support request. * Click on MANAGEMENT -> LOGS link from the menu on the left side of the screen.
  • Page 2 WHAT’S IN THE BOX: PORTS & CONNECTORS RS-232 ETHERNET CONSOLE POWER CONNECTOR CONNECTOR CONNECTOR CONNECTOR 1. GSM router RESET BUTTON 2. AC/DC adapter The front panel of GWR-HS Router 3. Ethernet cable 4. RS-232 console cable 5. GSM antennas, 2 pieces 6.
  • Page 3: Connecting Router

    INSERTING SIM CARDS CONNECTING ROUTER Warning: do not insert or eject SIM cards while router is Warning: Use only the router’s box power supply. powered on. Make sure to disconnect router from AC/DC * Connect antennas to router. Make sure to tighten antennas so that they adapter before inserting or ejecting SIM cards.
  • Page 4: Quick Setup

    QUICK SETUP ADMINISTRATION WEB PAGE * Once logged in to administration web page, click on SETTINGS-> ETHERNET * Add network 192.168.1.0/24 to the interface on your PC SETTINGS->NETWORK link from the menu on the left side of the screen * Optional: Ping 192.168.1.1 to check is the router reachable * Set IP Address and Subnet Mask and click on SAVE button * Open your Web browser (e.g.
