QUICK START

G U I D E

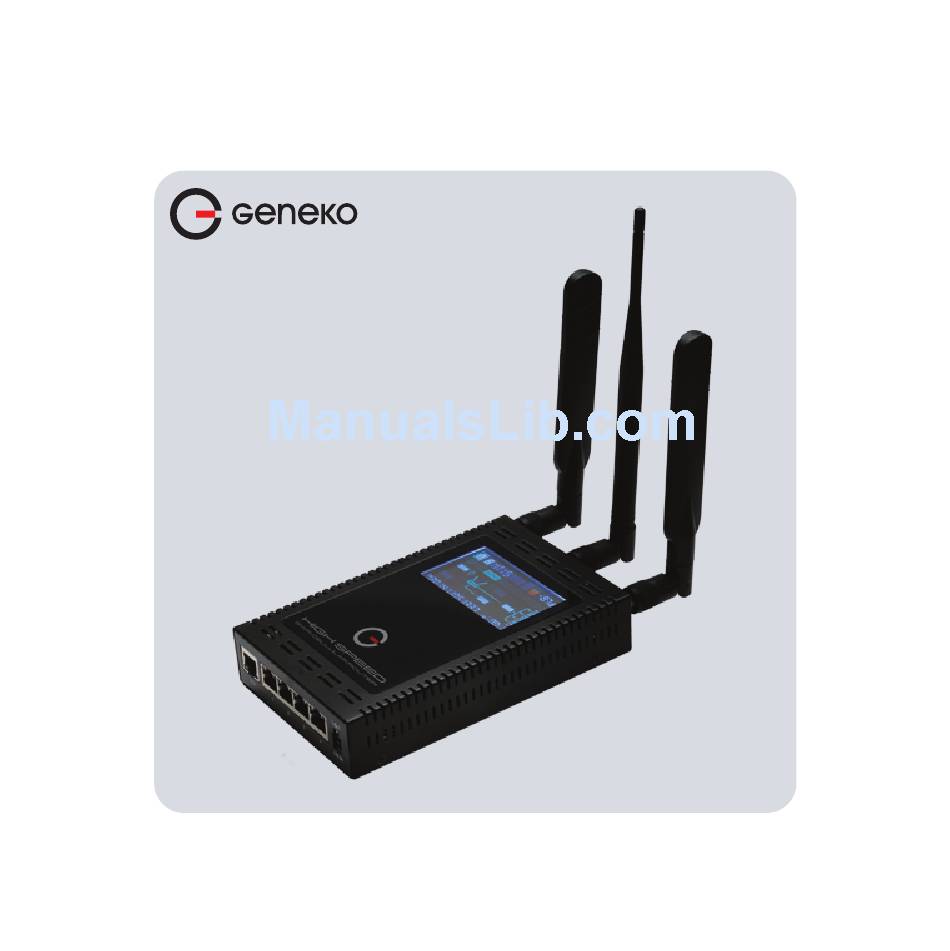

GWR 3G/4G Router
GWR362, GWR462

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWR 3G/4G and is the answer not in the manual?

Questions and answers

Summary of Contents for Geneko GWR 3G/4G

  • Page 1: Quick Start

    QUICK START G U I D E GWR 3G/4G Router GWR362, GWR462...
  • Page 2: What's In The Box

    WHAT’S IN THE BOX: 1. Geneko GWR router 2. AC/DC adapter 3. Ethernet cable 4. RS-232 console cable 5. Antennas GSM/GPRS/EDGE/UMTS/HSPA+/LTE (800/900/1800/2100/2600 MHz), 2 pieces 6. Wi-Fi antenna (only for routers with Wi-Fi) 7. GSM antenna extension cord(s) with magnetic base...
  • Page 3: Ports And Connectors

    PORTS & CONNECTORS WAN ETH PORT* ETHERNET PORTS POWER PORT Front panel * Note: GWR Router models with ADSL interface have ADSL port instead of WAN Eth port AUXILIARY MODEM RS-232 Wi-Fi ANTENNA MAIN ANTENNA ANTENNA Rear panel DISPLAY RESET SIM CARD 2 SIM CARD 1 BUTTON...
  • Page 4: Inserting Sim Cards

    INSERTING SIM CARDS Warning: do not insert or eject SIM cards while the router is powered on. Make sure to disconnect router from AC/DC adapter before inserting or ejecting SIM cards. * Put the SIM CARD 1 in SIM CARD 1 HOLDER . * When you want to remove SIM CARD from the SIM CARD HOLDER, press SIM CARD first to get out from the HOLDER, then you can get it.
  • Page 5: Connecting Router

    CONNECTING ROUTER Warning: Use only the router’s box power supply. * Connect antennas to the router. Make sure to tighten antennas so that they are not loose. * Plug AC/DC adapter cable into POWER CONNECTOR on the router. * Plug AC/DC adapter into the wall power socket. * Display will turn on.
  • Page 6: Administration Web Page

    ADMINISTRATION WEB PAGE * Add network 192.168.1.0/24 to the interface on your PC * Optional: Ping 192.168.1.1 to check if the router is accessible * Open your Web browser (e.g. Firefox, Chrome, Safari, Opera, or Internet Explorer) and enter the following address: http://192.168.1.1 * When prompted for your login credentials, use "admin"...
  • Page 7: Quick Setup

    QUICK SETUP * Once logged in to administration web page, click on SETTINGS -> MOBILE SETTINGS link from the menu on the left side of the screen. * Your GSM operator should provide you with PROVIDER, USERNAME (optional), PASSWORD (optional), APN and PIN (optional) information. * If SIM card is present, enter this into corresponding fields, and then click on SAVE button.
  • Page 8: Turn Logging On

    TURN LOGGING ON When troubleshooting router make sure logs are turned on. You should send logs to Geneko when submitting support request. * Click on MANAGEMENT -> LOGS link from the menu on the left side of the screen. * Click on LOCAL SYSLOG radio button, and then click on SAVE button.

This manual is also suitable for:

Gwr362Gwr462
