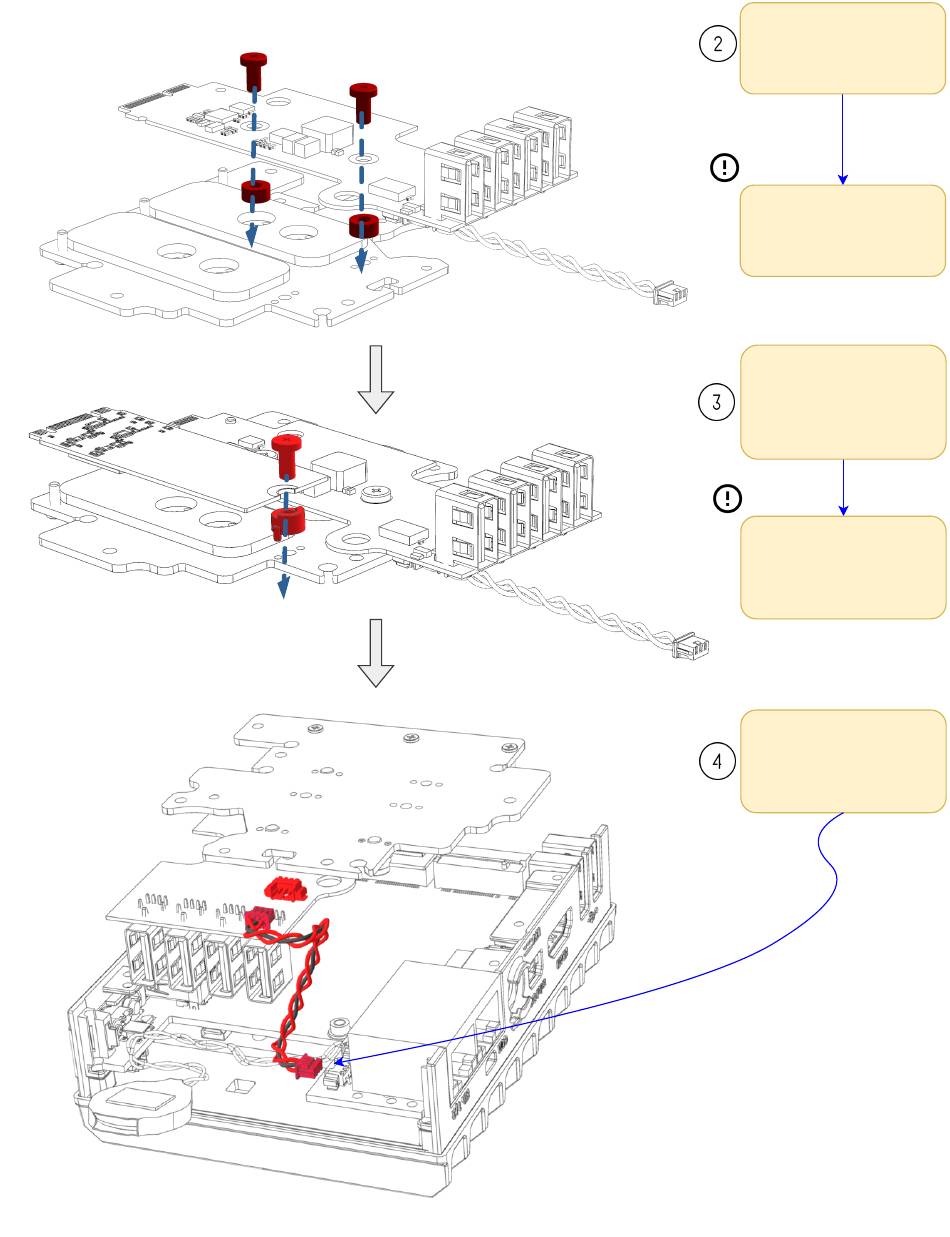

Place the retaining washers at
the designated location on the
cooling plate and seat the FC-
USB on-top of them. Then fasten
the 2x Phillips screws
The cooling plate should be
supplied with the product's
packaging or already
assembled.
Place the red module spacer in
the designated location then
place the M.2 storage
component side facing
downward to the thermal pad.
Then fasten using the 1x Phillips
screw
The red module spacer should
be supplied with the product's
packaging or already assembled
Plug the 3pin power cable to the
J11 port
