B-K lighting Path Star Installation Instructions page 2

with
Installation Instructions

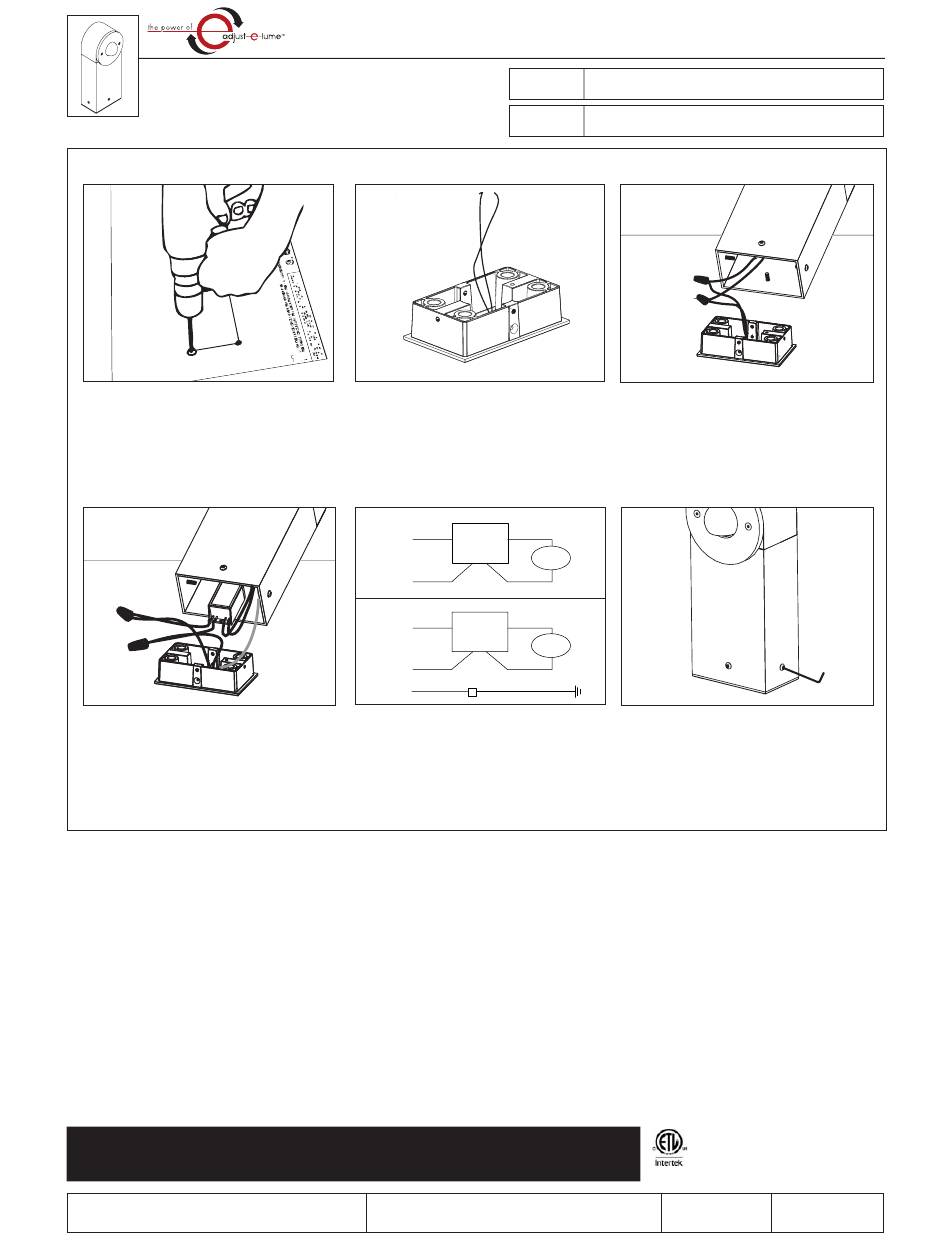

Anchor Base Installation
1. Determine suitable anchors (By Others) to
attach anchor base to architectural surface.
2. Place provided template in final mounting
position according to designed lighting plan.
3. Drill holes into surface for maximum 7/16"
fasteners (By Others) on locations illustrated on
template.
Integral Transformer
Integral Transformer
6. Pull branch circuit wires neccessary for
installation (By Others) through anchor base.
Anchor base can accomodate up to two (2)
1/2" conduits. Use proper wire connectors
(By Others) to connect transformer primary
leads to branch circuit wires. Connect incoming
ground to ground wire provided in fixture
body. See wiring diagram.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
TECHNOLOG
4. Pull low voltage wire to anchor base.
120V
COM
120V
COM
GROUND
Wiring diagram.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
PS™ /BS™/PSL™/ BSL™
PROJECT:
TYPE:
Remote Transformer
Remote Transformer
5. Make two connections from remote 12V
12V
Remote
Transformer
Fixture
COM
12V
Integral
Transformer
Fixture
COM
GROUND IN HOUSING
7. Place fixture on anchor base and tighten four
transformer to LED source leads (18 gauge
wire) using proper wire connectors (By Others).
See wiring diagram.
(4) #10-32 stainless steel button head cap
screws using a 1/8" Allen wrench.
ETL LISTED
CONFORMS TO ANSI/UL STANDARD 1838,
CERTIFIED TO CSA STD C22.2 NO.250.7
CSA STD C22.2 TIL B-58A
3167387
PRELIMINARY REFERENCE NUMBER
12-19-11
INS000891
