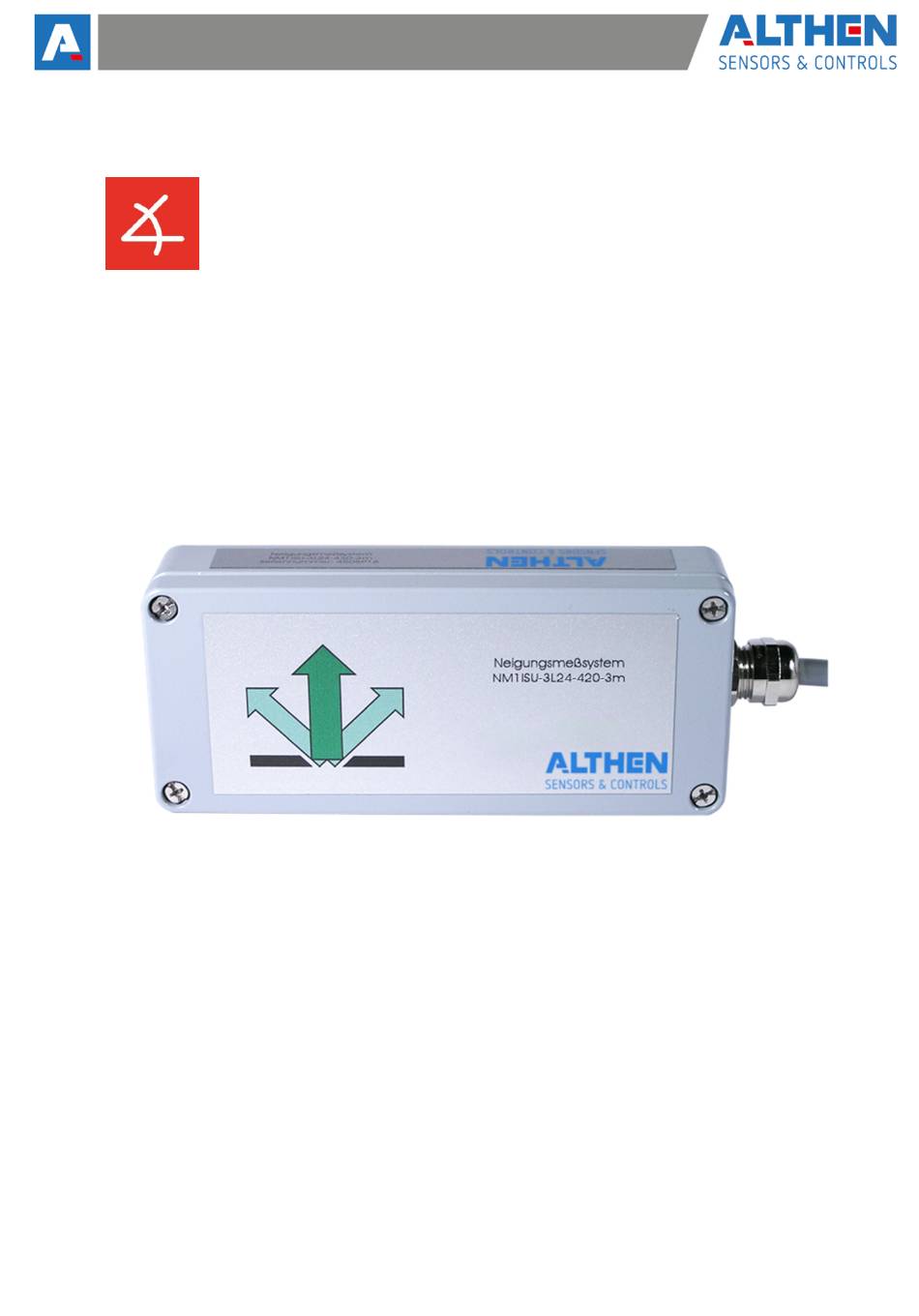

Single Axis
Tilt Measuring System
France
Althen / DB Innovation
Tél : 0033 (0)4 67 78 61 66
info@althensensors.fr
Sweden
USA | Canada
Althen Sensors & Control AB
Altheris Inc Sensors & Controls Inc.
Tel. +46 (0)8 7 95 24 90
Tel: +1 858-633-3572
info@althensensors.de
info@althensensors.com
Other Countries
please contact us
by email at
sales@althensensors.com
www.althen.de
V2.1 eng

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NM1-ISU-IP-3L-24 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ALTHEN NM1-ISU-IP-3L-24 Series

  • Page 1 Germany | Switzerland | Austria Benelux France Sweden USA | Canada Other Countries Althen GmbH Mess- & Sensortechnik Althen bv Sensors & Controls Althen / DB Innovation Althen Sensors & Control AB Altheris Inc Sensors & Controls Inc. please contact us...
  • Page 2: Table Of Contents

    Content 1 General Information ..........................3 1.1 Safety Instructions ........................3 1.2 Qualified Personnel ........................3 1.3 Intended Use ..........................3 2 Instructions for use of the measuring amplifier ................ 4 3 Technical Description .......................... 5 4 Terminal Assignment .......................... 5 4.1 Supply Voltage ..........................
  • Page 3: General Information

    To ensure reliable and safe operation, the measuring amplifier must be operated in compliance with the specifications according to this technical description only. These regulations must also be observed if accessories, which have been ordered from Althen Mess- & Sensortechnik GmbH together with the measuring amplifier, are being used.
  • Page 4: Instructions For Use Of The Measuring Amplifier

    If it is to be expected that the amplifier is, as example, cleaned with a high-pressure cleaner/ steam jet an additional protection shall be provided. Changes of the measuring system of any kind demand for the explicit approval of Althen Notice: Mess- &...
  • Page 5: Technical Description

    3 Technical Description This single axis, industrial tilt measuring system, which consists of one none-contact sensor and an electronic customized for said sensor, serves to measure accurate tilt angles in x-axis and is intended for side wall mounting. The range of the angle to measure can be set by an internal dip-switch. The measured values are put out digitally via a RS232 interface.
  • Page 6: Starting Up

    5 Starting up The range to measure can be selected with a dip-switch (S-01/1…3). The dip-switch S-01/4 allows to change the polarity of measured values. Fig. 1a: Scaling of the measuring range by DIP-switch S-01; shown range: ± 45° inclination S-01-1 S-01-2 S-01-3...
  • Page 7 After mounting the measuring system, a zero-point-adjustment should be carried out. In order to do so, the object to measure, together with the mounted measuring system, must be levelled horizontally. To save the inclination angle as zero-reference: a) the button shown below is to be pressed or ■...
  • Page 8: Maintenance

    Amplifiers and measurement units manufactured and sold by Althen Mess- & Sensortechnik GmbH serve B2B purposes only. Therefore, those old appliances must not be given to the communal disposer, but must be given back to the seller or disposed of properly.
  • Page 9: Appendix

    Appendix Datasheet Number of measuring axis: 22…26 VDC Elektronik gegen Verpolung geschützt Supply voltage: ca. 3 W Power consumption: Serial RS232 (9600 Baud, 8N1) Data Interface/Analogue Output: 4 … 20 mA max. 500 Ohm 0,4 Hz Measuring Frequency (-3dB): Range selectable via internal dip-switch Selectable Ranges ±10°, ±20°, ±30°, ±45°, ±60°, ±90°, ±120°, ±180°...
  • Page 10: Component Diagram

    Component diagram 10 | 11...
  • Page 11: Housing Dimensions

    Housing dimensions Subject to modifications. All information describes our products in general form. 11 | 11...
