Summary of Contents for go-e go-eCharger

  • Page 2 Copyright by go-e GmbH. The content of this document may not be copied partly or published or circulated in any form other than that approved by go-e GmbH without the written permission of go-e GmbH. Page 2...
  • Page 3 The go-eCharger was developed and tested by electric car drivers for electric car drivers. To keep the go-eCharger up to date in the future, the firmware is constantly being developed further and adapted to the state of the art.
  • Page 4 The technology for this is already built into each of our loading boxes. For more information, please visit www.go- e.co/Strompreisboerse go-e will continue to work on making its products more energy-efficient and environmentally friendly in the future for a major goal: a future without emissions.

  • Page 5: Table Of Contents

    Table of Contents Prelude Page 6 Warnings Page 7 Product Overview Page 9 Appurtenance Page 10 Technical Specifications Page 11 Mounting Page 12 Commissioning Page 13 Error Indication Page 14 The App Page 15 WiFi Settings Page 20 WiFi Wizzard Page 22 FAQs Page 23...

  • Page 6: Prelude

    This manual should help you: - to use the product properly - to avoid damage - to increase durability and reliability - to prevent -a hazard Attention Attention! go-e GmbH does not assume any liability for damages caused by disregarding these instructions! Page 6...

  • Page 7: Warnings

    Make sure that the connection to which the go-eCharger is to be connected has been properly installed and is undamaged. The circuit to which the go-eCharger is to be connected must be fitted with a residual current circuit breaker and a circuit breaker.
  • Page 8 Use your go-eCharger only hanging or in the wall bracket. Never use the loading box lying down! The Type 2 connectors are not waterproof and water could penetrate to the contacts while lying down!

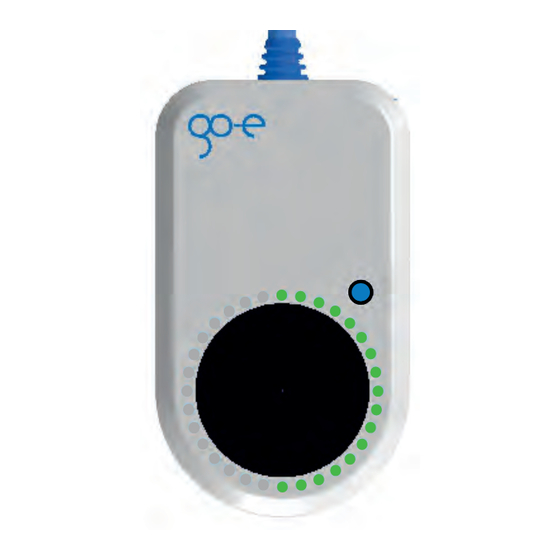

  • Page 9: Product Overview

    Overview (1) 32A CEE Plug (2) Cable (3) House (4) Button (5) Typ2 socket (6) LED ring (8) Fuse on the backsite Page 9...

  • Page 10: Appurtenance

    Scope of delivery 22kW Charger Mounting set Resetcard RFID chip Optional: Cable adapter set 16A Schutzkontaktstecker (domestic plug) 16A CEE (red) 16A CEE campingplug (blue) Page 10...

  • Page 11: Technical Specifications

    Scope of delivery: -Charger box 22kW with 32A CEE plug -Wall bracket incl. screws and dowels -Optionally mountable cable protection (anti-theft protection) -Reset card (obligatory safekeeping) -Instruction Loading box dimensions: -15 x 25cm -2,0kg Connection: -CEE red 32A, 30cm Optional adapters: -CEE red 16A (three-phase) -CEE blue 16A (single phase) -Domestic socket 16A (household socket outlet)

  • Page 12: Mounting

    Use a spirit level or a spirit level app to align the wall mount. Connecting the go-eCharger Attention! Never use the go-eCharger lying on its back; it may collect water in the Type 2 outlet when it rains. Connect Attention After an initial self-test, the LEDs light up in the number of the pre-set charging current in amps.

  • Page 13: Commissioning

    After an initial self-test, the LEDs light up in the number of the pre-set charging current in amps. The setting knob (5) can be used to select between 6A and 32A. The levels of the selection can be individually adjusted in the app. It does not matter whether the go- eCharger is connected in one or three phases.

  • Page 14: Error Indication

    Error Indication The go-eCharger has a number of security questions in its program to check the used power source for possible errors. For this reason, it is possible that the go-eCharger may indicate a fault and refuse charging, especially with unknown power sources.

  • Page 15: The App

    The App The App The app gives you full access to a wide range of go-eCharger functions via direct (via hotspot) or worldwide (via the Internet). The app can be found in the Apple App Store, the Google Play Store or at go-e.
  • Page 16 Activation Activate or deactivate your cargo. Depending on the settings under "Settings/Access Control", you must authorize each load using this button or an RFID card. The cable remains locked in the standard setting until it is disconnected from the vehicle. Change Ampere The charging power can be freely selected between 6- 32A.
  • Page 17 Define the charge levels you want to load with the button on your go-eCharger. Input fields set to "0" are skipped during selection with the button. access control If you activate this function, each charge must be approved by means of an RFID card or the "Activation"...
  • Page 18 Norway) grounding is not possible and isolating transformers are used instead (IT grid). To be able to load in such regions with the go-eCharger, the "Ground Check" function can be deactivated. When operating in the usual European mains with earthing (TN), switching off the "Ground Check"...
  • Page 19 Attention! The card erases all data in the storage location of the load box. With the app you can manage several go-eCharger. See "Show RFID card settings"for more details. Time settings (from winter 2017) Synchronizes the time with your phone.

  • Page 20: Wifi Settings

    WiFi Internet WiFi < In order to use the WiFi function of the go-eCharger, you always need a direct connection of your smartphone with the charger to be able to set up the connection. You can perform all operations through the interactive graphic by touching the individual items or connections, or you can use the "Setup...
  • Page 21 To switch between Internet access and hotspot, use the Wlan settings of your mobile phone. If your go-eCharger is out of the reach of your Wlan router, you can use the "connect automatically" function for the hotspot connection with the go-...

  • Page 22: Wifi Wizzard

    If your go-eCharger has permanent access to the Internet via your home network, you should use the Internet connection by default. Wizard As an alternative to manual WiFi configuartion, you can also use the WiFi Wizzard. Tap the Wizard button. The wizard will now guide you step by step through the installation.

  • Page 23: Faqs

    Fuse are broken Check the device fuse on the back of the go-eCharger. If this is melted, the power connection is probably not properly installed. Make sure that the connection is correct before starting a new trial.

  • Page 24: Warranty

    Warranty The statutory liability for defects law and the statutory warranty period of two years shall apply. After six months from delivery of the goods, the burden of proof of the statutory warranty shall pass to the customer. Shipping costs for repeated repairs due to technical defects by the manufacturer shall be borne by the manufacturer.
