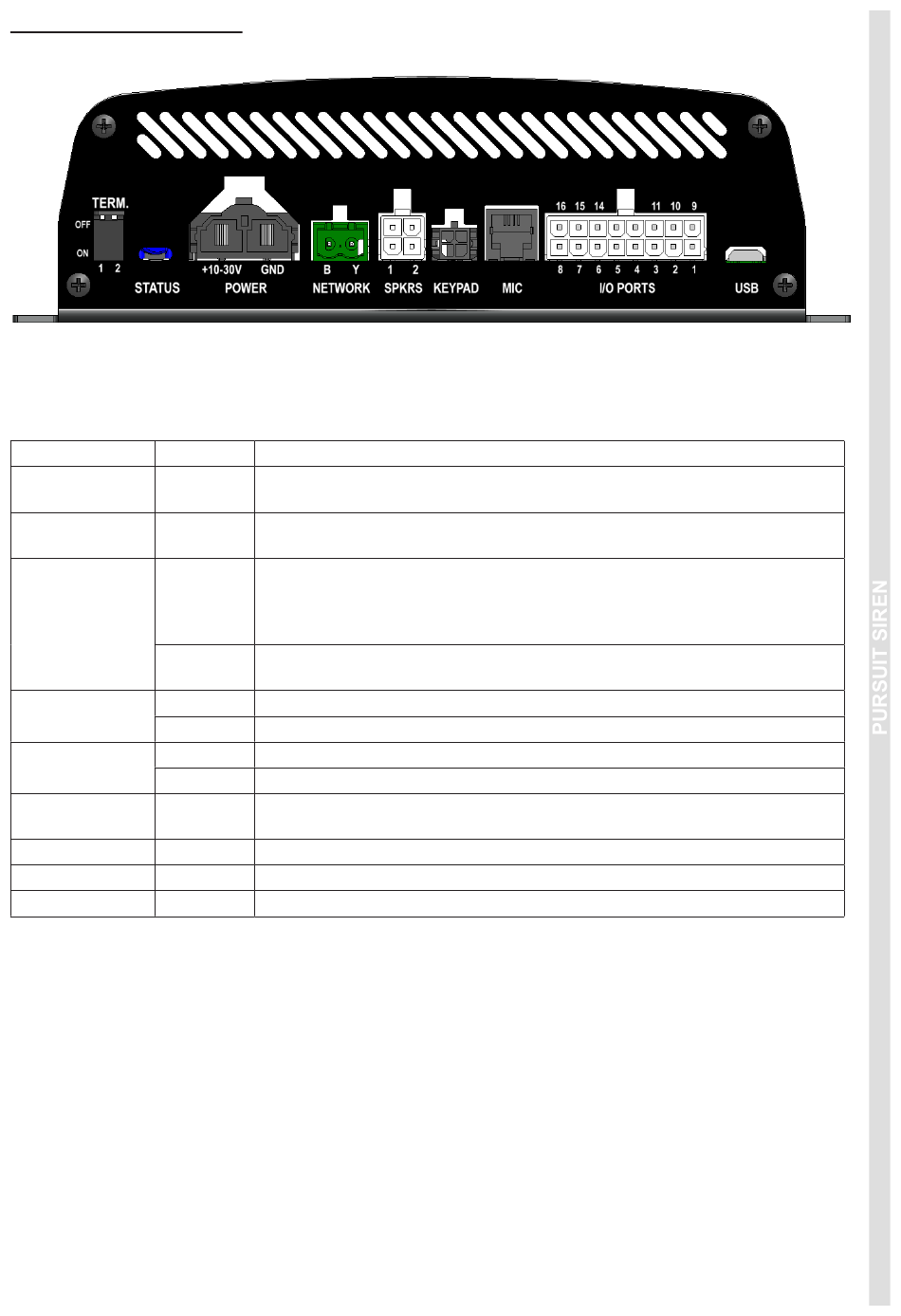

WIRING INSTRUCTIONS

Before proceeding with installation, plan all cable routing and wiring carefully.
PORT
TERM.
STATUS
+10-30V
POWER
NETWORK
SPKRS
KEYPAD
MIC
I/O PORTS
USB
*Network cable requirements: Twisted pair, 30mm pitch Blue/Yellow. 0.25mm
920-0655-00 Rev B
REF
Network termination setting. Default 1=ON; 2=OFF. For further details, refer
to Network Application Note.
The Status LEDs indicate various aspects of the current operation of the
siren. RED = Bootloader (programming mode / firmware update).
Connect to 4.5mm² (10 AWG) automotive wire to a fused power source,
using the shortest possible wire length. Fuses should be 15A for 100W
variants, and 25A for 200W variants. Do not connect this power wire until
all other connections have been made to the unit.
Connect to 4.5mm² (10 AWG) automotive wire to a good chassis ground
GND
point or the battery negative terminal, using the shortest possible wire length.
B Connect the Blue wire from the HazCAN device(s).*
Y Connect the Yellow wire from the HazCAN device(s).*
1 Connect Speaker 1 here.
2 Connect Speaker 2 here (for 200W applications only).
Connect HazCAN compatible devices (via extension cable if required) to this
port (optional).
Connect the microphone here.
Refer wiring diagram.
Configuration and firmware updates via Software Graphical User Interface.
DESCRIPTION
/ 24AWG.
2
