Code 3 Pursuit Siren Installation And Operation Instructions Manual

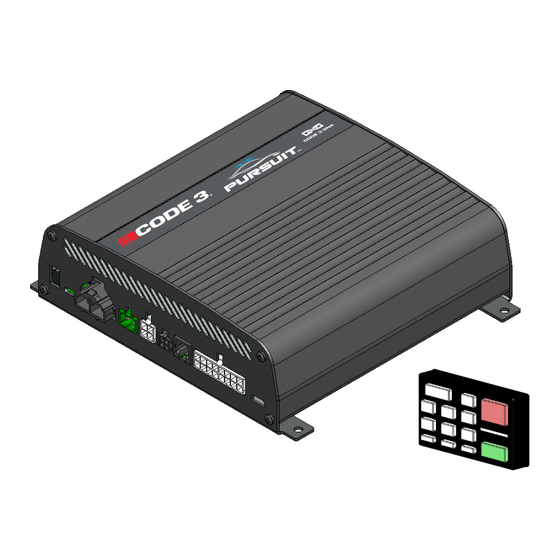

Designed in Australia, the Code-3 Pursuit Siren sets a new benchmark in audible warning
systems. With two independent 100W speaker channels and multi-voltage operation, the
Pursuit Siren is ready for action on the full spectrum of emergency vehicles. Approved to
the highest standards in acoustics, EMC and reliability, the siren is fully network compatible
and integrates seamlessly with other network enabled products such as the Pursuit Lightbar
and Matrix Display, to provide complete vehicle warning systems with truly unique features.
Input Voltage Range
Current Draw - Standby (Typ.)
Current Draw (200W)
Speaker Voltage
Dimensions (H x W x D mm)
Ambient Operating Temperature
Features
ECE R10, SAE J1849 (when paired with C3100 speaker), CISPR-25, RCM
`
WARNING!
Failure to install or use this product according to manufacturer's recommendations may result
in property damage, serious bodily/personal injury, and/or death to you and those you are
seeking to protect!

SPECIFICATIONS

18A (12V) / 9A (24V)
65 x 121 x 37
-30 to +65 °C
8 configurable I/O
3 fixed position inputs
Over-voltage, under-voltage, thermal shutdown
protection and reverse polarity protection (-36V)
Public Address Microphone with Adjustable Volume
Radio Rebroadcast Capability
Software Configurable with USB update.
Vehicle Horn Interface (HRT)
Output short-circuit protection
CERTIFICATIONS:
Installation and
Operation Instructions
Pursuit Siren
10-30 VDC
10 mA
33Vrms
