Summary of Contents for Hafele 539.15.020

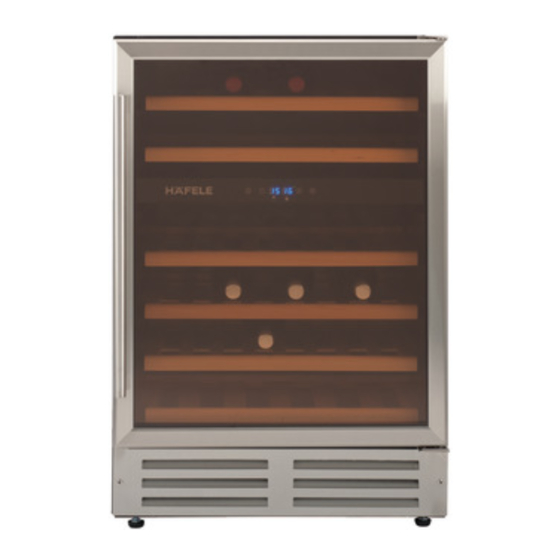

- Page 1 WINE FRIDGE / BEVERAGE FRIDGE Installation - Use - Maintenance Häfele Wine fridge model: 539.15.020 Häfele Beverage fridge model: 539.15.021...
-
Page 2: The Storage Of Food
• Thoroughly ventilate the room in which the appliance is located for several minutes. • Notify Hafele after sales service on 1800 755890 for necessary action and advice. The following models use a small quantity of R600a (iso-butane) flammable refrigerant: •... - Page 3 • The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is listed above in grams; it is also noted on the Rating Plate of the appliance. It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance.
- Page 4 For Built in Application The Hafele Built in Beverage and Wine Fridges are front venting drawing in air from the rear of the cabinet and expelling the air through the front ventilation grill.
- Page 5 Installation and Technical drawing for Built in Application Including door Filler if required 615 mm...
-
Page 6: Recommended Temperature Settings
Operating your Beverage or Wine Fridge The ideal operating ambient temperature for the fridge is between 5°C to 35°C. If the ambient temperature is higher than or lower than this temperature range, it will cause temperature fluctuations within the cabinet and may cause the fridge to not reach its selected operating temperature. -
Page 7: Control Panel
BEVERAGE FRIDGE CONTROL PANEL Turning on the Appliance To turn on the appliance, press the POWER button. To turn off the appliance, press and hold the POWER button for 2-3 seconds. When you use the Beverage fridge for the first time, restart the beverage fridge or having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. - Page 8 Shelf for Beverage Fridge To prevent damaging the door gasket, make sure to have the door all the way opened when pulling the shelf out of the rail compartment. For easy access to the storage content, you must pull the shelf approximately 1/2 out of the rail compartment, however this unit was designed with a plastic post on each side of the shelf track to prevent bottles from falling.
- Page 9 WINE FRIDGE CONTROL PANEL Turning on the Appliance To turn on the appliance, press the POWER button. To turn off the appliance, press and hold the POWER button for 2-3 seconds. When you use the Wine fridge for the first time, restart or after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout.
- Page 10 When exceeding the minimum value that can be established, it will jump to the highest adjustable temperature value automatically. When the button has not been touched for more than 5 seconds, the LED figure will stop flashing and then revert back to display the temperature of the upper compartment.
- Page 11 Reversing the door This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow the diagrams below: Door Components 1.
-
Page 12: Care And Maintenance
All the appliances are fitted with LED lights. If the LED light is damaged, please contact the Hafele warranty line on 1800 755890 to replace the faulty light. CARE & MAINTENANCE Cleaning of your beverage and Wine Fridge •... -
Page 13: Troubleshooting Guide
Energy saving tip The beverage fridge and wine fridge should be located in the coolest area of the room, away from appliances producing heat, and out of the direct sunlight. Problems with your beverage fridge or wine Fridge You can solve many common problems easily, saving you the cost of a possible service call. - Page 14 Warranty Note: Should you require warranty service please contact Häfele on 1800 755 890 or by emailing info@hafele.com.au. Please refer to the warranty card that came with appliance for the full terms and conditions of this warranty. The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to printing or copying errors.
Need help?
Do you have a question about the 539.15.020 and is the answer not in the manual?
Questions and answers
With a 539.15.021 beverage fridge the fridge is inoperative and has the flashing indication on the control panel of the number 1 in both upper and lower temperature settings. The power button is initiated for approximately 3 seconds and the power goes off and cannot be restored without a hard reset of the power outlet in the wall. I suspect the circuit board has a fault but cannot get anything from the internet to get a part number and availability of the controller circuit board. Can you please advise.
