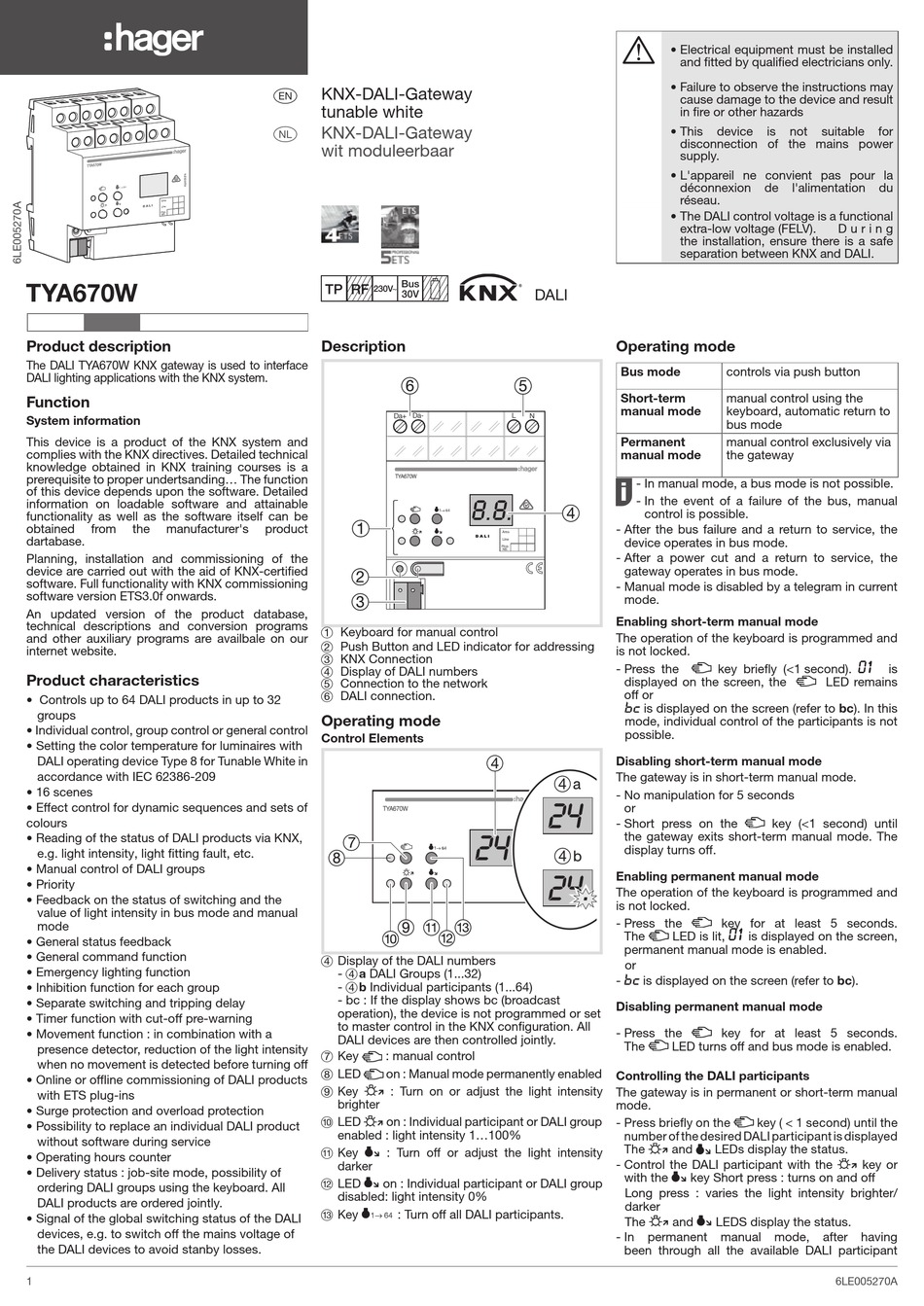

hager DALI TYA670W KNX Quick Start Manual

TYA 670 W
Area
Line
Ptcp .
Nb.
TYA670W

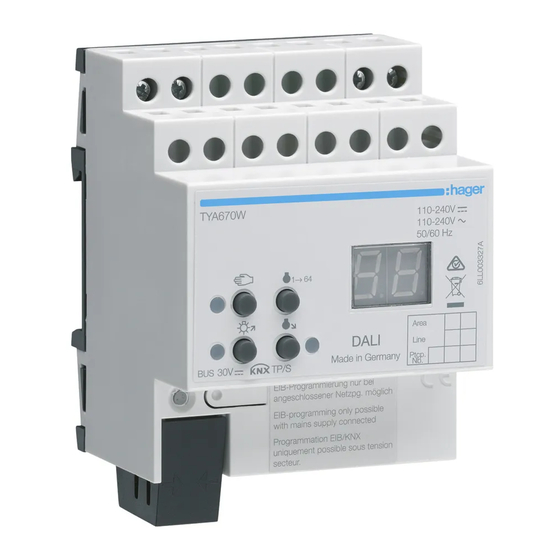

Product description

The DALI TYA670W KNX gateway is used to interface
DALI lighting applications with the KNX system.
Function
System information
This device is a product of the KNX system and
complies with the KNX directives. Detailed technical
knowledge obtained in KNX training courses is a
prerequisite to proper undertsanding... The function
of this device depends upon the software. Detailed
information on loadable software and attainable
functionality as well as the software itself can be
obtained from the manufacturer's
dartabase.
Planning, installation and commissioning of the
device are carried out with the aid of KNX-certified
software. Full functionality with KNX commissioning
software version ETS3.0f onwards.
An updated version of the product database,
technical descriptions and conversion programs
and other auxiliary programs are availbale on our
internet website.
Product characteristics
• Controls up to 64 DALI products in up to 32
groups
• Individual control, group control or general control
• Setting the color temperature for luminaires with
DALI operating device Type 8 for Tunable White in
accordance with IEC 62386-209
• 16 scenes
• Effect control for dynamic sequences and sets of
colours
• Reading of the status of DALI products via KNX,
e.g. light intensity, light fitting fault, etc.
• Manual control of DALI groups
• Priority
• Feedback on the status of switching and the
value of light intensity in bus mode and manual
mode
• General status feedback
• General command function
• Emergency lighting function
• Inhibition function for each group
• Separate switching and tripping delay
• Timer function with cut-off pre-warning
• Movement function : in combination with a
presence detector, reduction of the light intensity
when no movement is detected before turning off
• Online or offline commissioning of DALI products
with ETS plug-ins
• Surge protection and overload protection
• Possibility to replace an individual DALI product
without software during service
• Operating hours counter
• Delivery status : job-site mode, possibility of
ordering DALI groups using the keyboard. All
DALI products are ordered jointly.
• Signal of the global switching status of the DALI
devices, e.g. to switch off the mains voltage of
the DALI devices to avoid stanby losses.
1
KNX-DALI-Gateway
z
tunable white
KNX-DALI-Gateway
i
wit moduleerbaar
B n ? . :
Description
Da+ Da-
TYA670W
product
1 Keyboard for manual control
2 Push Button and LED indicator for addressing
3 KNX Connection
4 Display of DALI numbers
5 Connection to the network
6 DALI connection.
Operating mode
Control Elements
TYA670W
4 Display of the DALI numbers
- 4a DALI Groups (1...32)
- 4b Individual participants (1...64)
- bc : If the display shows bc (broadcast
operation), the device is not programmed or set
to master control in the KNX configuration. All
DALI devices are then controlled jointly.
7 Key : manual control
8 LED on : Manual mode permanently enabled
9 Key : Turn on or adjust the light intensity
brighter
A LED on : Individual participant or DALI group
enabled : light intensity 1...100%
Z Key : Turn off or adjust the light intensity
darker
E LED on : Individual participant or DALI group
disabled: light intensity 0%
R Key : Turn off all DALI participants.
q
• Electrical equipment must be installed
• Failure to observe the instructions may
• This
• L'appareil ne convient pas pour la
• The DALI control voltage is a functional
DALI
Operating mode
Bus mode
Short-term
manual mode
L N
Permanent
manual mode
H
- In manual mode, a bus mode is not possible.
- In the event of a failure of the bus, manual
control is possible.
- After the bus failure and a return to service, the
Area
device operates in bus mode.
Line
Ptcp.
Nb.
- After a power cut and a return to service, the
gateway operates in bus mode.
- Manual mode is disabled by a telegram in current
mode.
Enabling short-term manual mode
The operation of the keyboard is programmed and
is not locked.
- Press the
displayed on the screen, the
off or
is displayed on the screen (refer to bc). In this
mode, individual control of the participants is not
possible.
Disabling short-term manual mode
The gateway is in short-term manual mode.
- No manipulation for 5 seconds
or
- Short press on the
the gateway exits short-term manual mode. The
display turns off.
Enabling permanent manual mode
The operation of the keyboard is programmed and
is not locked.
- Press the
The LED is lit,
permanent manual mode is enabled.
or
- is displayed on the screen (refer to bc).
Disabling permanent manual mode
- Press the
The LED turns off and bus mode is enabled.
Controlling the DALI participants
The gateway is in permanent or short-term manual
mode.
- Press briefly on the
number of the desired DALI participant is displayed
The and
- Control the DALI participant with the
with the
Long press : varies the light intensity brighter/
darker
and
The
- In permanent
been through all the available DALI participant
and fitted by qualified electricians only.
cause damage to the device and result
in fire or other hazards
device is not suitable
disconnection of the mains power
supply.
déconnexion de l'alimentation
réseau.
extra-low voltage (FELV). D u r i n g
the installation, ensure there is a safe
separation between KNX and DALI.
controls via push button
manual control using the
keyboard, automatic return to
bus mode
manual control exclusively via
the gateway
key briefly (<1 second).
LED remains
key (<1 second) until
key for at least 5 seconds.
01
is displayed on the screen,
key for at least 5 seconds.
key ( < 1 second) until the
LEDs display the status.
key Short press : turns on and off
LEDS display the status.
manual mode, after
6LE005270A
for
du
01
is
key or
having
