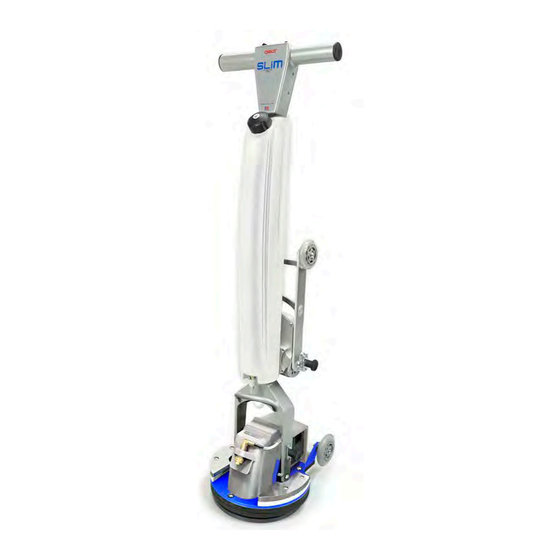

- Page 1 OPERATING MANUAL 2019...
-
Page 2: Warranty
WARRANTY All ORBOT equipment has been carefully tested and inspected at our USA factory. ORBOT SLiM machines are guaranteed for one year from the date of original purchase against defects or workmanship made during manufacture. Within the guarantee period we... -
Page 3: Table Of Contents
Pad Driver SuperZorb Pad MicroFiber Pad UltraLift Pad AkwaStrip Pad StoneFlash Pad Carpet Brush Tile & Grout Brush Maintenance Cleaning the Machine Checking the Machine SLiM Cleans in Small Spaces Part Diagrams and Part Lists 15 - 22 Wiring Diagram... -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL This manual contains the following sections: • How to Use This Manual The PARTS LIST section contains assembled parts illustrations and corresponding parts • Safety list. The parts lists include a number of • Operations columns of information: •... -
Page 5: Safety - Important Instructions
SAFETY IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precautions must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING To reduce the risk of fire, electric shock, or injury: • Use only indoors. Do not use outdoors or expose to rain. •... - Page 6 SAFETY The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING, CAUTION, and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices CAN result in severe personal injury or death.
- Page 7 SAFETY HYBRID GROUNDING INSTRUCTIONS 120V (when applicable) THIS PRODUCT IS FOR COMMERCIAL USE ONLY ELECTRICAL: In USA this machine operates on a 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors.
-
Page 8: Technical Details
TECHNICAL DETAILS ITEM SPECIFICATIONS Motor 36 V/330W - DC, 3000 RPM, 59 dB with protective cover Dual Speed 3000 RPM (Orbital), 120 RPM (Rotational) Base Diameter 11” (27.9 cm) Wheel Diameter 4” (10.16 cm) Solution Tank Capacity 3/4 Gallon (2.84 L) Pump 58 PSI (4 BAR) Noise Level... -
Page 9: Operation
CAUTION Ensure solution tank cap is securely fastened to avoid leaks and spills. Pads/Brushes Choose an Orbot pad or brush of choice to clean or restore the desired floor. Place under the hook pad driver BEFORE powering on machine. To remove, simply peel off. -
Page 10: Handle Position
OPERATION Handle Position Before powering ON the machine, lower the handle into a comfortable position by pulling out the pull-pin lever located on the lower left side of the handle fork. Operating Machine Turn power switch on, and begin to maneuver the machine over the floor surface. -
Page 11: Lifting And Handling
HANDLING & STORAGE/ACCESSORIES & APPLICATIONS Lifting & Handling To lift the machine into a vehicle, use handle located on fork. To lift the machine up stairs, lower the wheel kit to 90 degrees. CAUTION Storage Always keep machine stored in the upright position. -
Page 12: Superzorb Pad
OPERATION SuperZorb Pad Our exclusive SuperZorb pad is made of a special cotton and polyester blend. One of the primary components that help to extract an essential amount of soil from the carpet fibers. They also play an important role to achieve fast dry times. -
Page 13: Stoneflash Pad
OPERATION StoneFlash Pads StoneFlash pads are part of a 5 step system for grinding, honing and polishing marble, terrazzo, travertine, limestone and more. Carpet Brush To lift carpet fiber piles. Use for extra scrubbing power to release stubborn stains. Also use on hard or rubber floors to release dirt from small cracks, crevices, and pores. -
Page 14: Maintenance
• Ease of carrying up stairs as well as cleaning them. • Also, planes, trains, automobiles, etc. are very hard to clean where the SLiM comes in handy to assist in these areas. Plus many more possible opportunities where most cleaning machines are too large to get to those small spaces. -
Page 15: Part Diagrams And Part Lists
PARTS SOLUTION TANK ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 01-221 SOLUTION TANK 01-222 FILL TANK 01-223 TANK FILTER ADAPTER ASSEMBLY 01-224 MALE QUICK-CONNECT 01-225 TANK SOLUTION HOSE 01-226 TANK TAB SCREW, 1/4”-20 X 3/4” 01-227 TANK TAB... - Page 16 PARTS HANDLE / FRAME ASSEMBLY...
- Page 17 PARTS HANDLE / FRAME ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 01-201 WELDED ALUMINUM HANDLE ASSEMBLY 01-202 15 AMP CIRCUIT BREAKER 01-203 RUBBER, TANK MOUNT STOP 01-204 PUMP MOUNT SCREW 6-32 X 7/8” 01-205 HANDLE FORK MOUNTING SCREW, 3/8-16 X 1-3/8” 01-206 HANDLE FORK MOUNTING WASHER 3/8”...
- Page 18 PARTS WHEEL KIT / PUMP ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 02-221 WHEEL, 3” 02-222 ALUMINUM WHEEL KIT FRAME 02-223 WHEEL KIT WASHER, NYLON, 3/8” ID X 3/4” OD 02-224 WHEEL KIT MOUNTING SCREW, 3/8”-16 X 1” 02-225 WHEEL KIT MOUNT 02-226 WHEEL KIT MOUNT SCREW, 10-24 X 5/8”...
- Page 19 PARTS SPRAY NOZZLE & MOTOR COVER ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 03-201 MOTOR COVER, SILVER 03-202 90° QUICK-CONNECT SPRAY FITTING 03-203 SPRAY JET BODY 03-204 CHECK VALVE STRAINER 03-205 SPRAY JET TIP 03-206 SPRAY JET CAP 03-207 FRONT MOTOR COVER MOUNTING SCREW, 1/4-20 X 5/8” 03-208 REAR MOTOR COVER MOUNTING SCREW, 1/4-20 X 1”...
- Page 20 PARTS BASE & DRIVER PLATE ASSEMBLY...
- Page 21 PARTS BASE & DRIVER PLATE ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 03-221 WEIGHT KIT MOUNTING SCREW, 1/4-20 X 1-1/4” 03-222 WEIGHT PLATE 03-223 BUMPER THREADED INSERT 03-224 MOTOR, 36V / 330W, 3000 RPM, 59DB 03-225 MOTOR MOUNTING SCREW, 10-32 X 3/4” 03-226 BASE PLATE 03-227...
- Page 22 PARTS COMPLETE ASSEMBLY...
-
Page 23: Wiring Diagram
WIRING DIAGRAM ORBOT SLiM... - Page 24 “Innovators in Orbital Floor Care” 3275 Corporate View, Vista, CA 92081, USA P: 760-936-8054 | CustomerService@orbotusa.com www.orbotusa.com EXPERIENCE THE NEW METHOD to CLEAN FLOOR!
