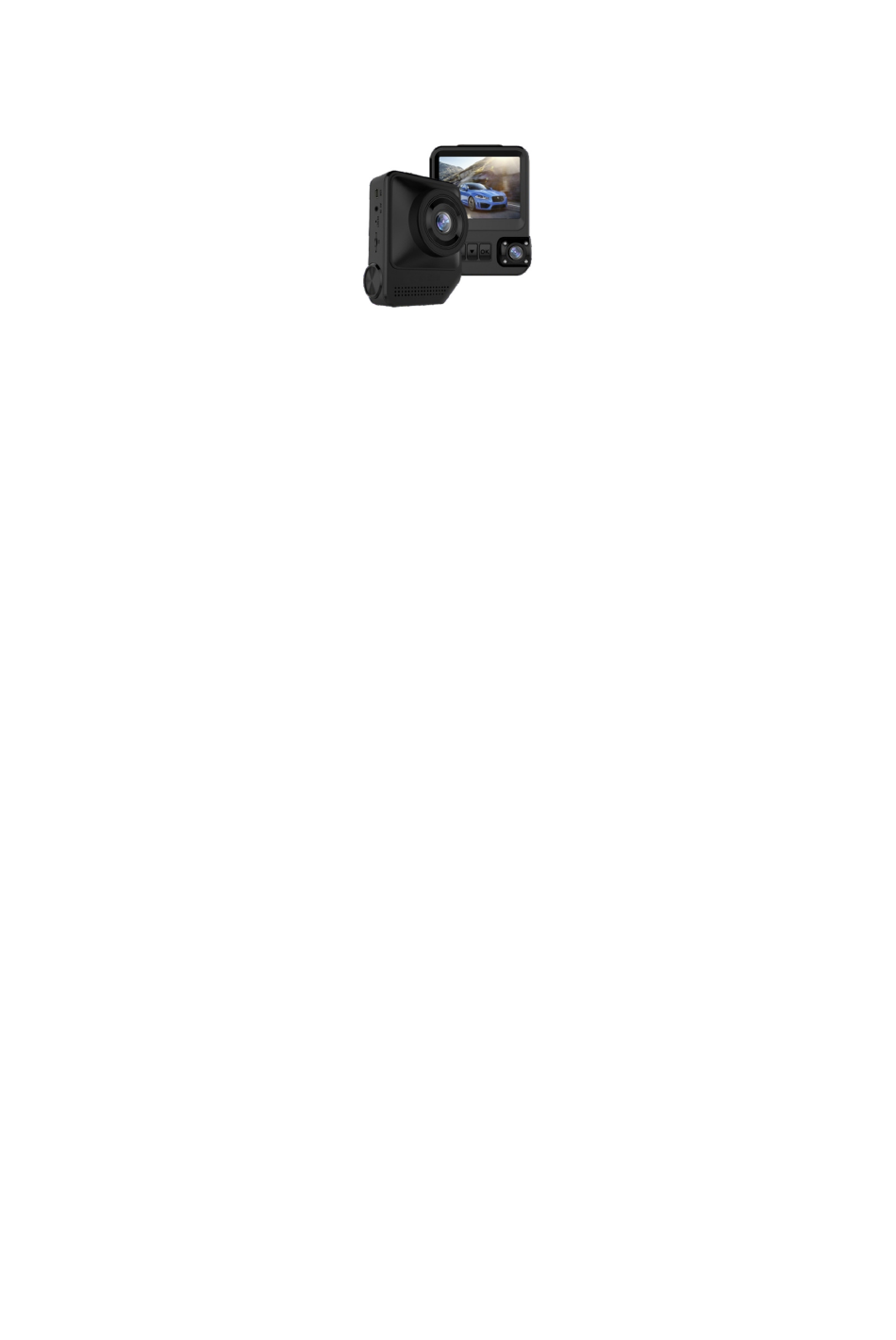

- Page 1 User Manual Safe driving Better life...
-
Page 2: Table Of Contents
Content Product Introduction..............1 Notice Before Use..............1 Structure..................2 Function...................2~3 Operation Guide..............3~4 Recording Video.................4 Taking Pictures................5 Playback..................5~6 Settings...................6~12 FAQ..................12~14 Specification................14... -
Page 3: Product Introduction
Product Introduction Dash Camera is a device can record video audio information while driving, so with this device you can avoid trouble on road if somebody want to offend you, it can provide clear evidence in car accident. What's more, it can record wonderful view on the way when travel. -
Page 4: Structure
STRUCTURE 1. 2.31 Inch 2.OK Button 3. Down Button 4 . Mode/Menu Button 5. Up Button 6. Inside Camera 7. USB Interface 8. AV IN 9. Reset 10.TF Card Slot FUNCTION 1. Cycle Recording Cycle recording usually have 1 mins,3 mins,5 mins settings etc..., with this cycle recording function,the dvr camera can overwrite the old video (except the locked video) automatically,so that the sd card will not be full. -
Page 5: Operation Guide
4. Parking Monitor When you park your car somewhere,turn on parking monitor function can make this dvr camera do recording while parking time to avoid any offend to your car like steal or scratch. At the same time,please do not forget set G-Sensor sensitive as high to work up this function, also must buy external power cable to do power supply while parking.(Details about power cable please see below) Kindly remind:All car dvr inside battery very small can last working only around 2~3... -
Page 6: Recording Video
8. Menu: In standby mode, short press menu button, enter into main menu setting, short press UP/DOWN button, choose the options which you need, short press OK button to confirm. Settings finished, short press Menu button until exit. 9. Mode button: In standby mode, short press mode button can switch between different mode (Video/Photo/Playback) Recording video In Video mode, in the upper left corner of the screen the... -
Page 7: Taking Pictures
Taking pictures 1. Press Mode (M) button. In the upper left corner of the screen, icon will be dispalyed. 2. Press OK button to take a picture. Note: Hold the camera steady when taking pictures, otherwise the pictures will come out blurry. -
Page 8: Settings
In playback mode, long press Mode button, select “Protect”, you will have protect lock options (“lock one” to protect the selected file,“lock all” to protect all the files on the memory card) and protect unlock options (“unlock one” to unlock the selected files, “unlock all” to unlock all the protected files on the memory card). - Page 9 Browse settings using UP/DOWN buttons and OK button to edit and confirm setting. Date/Time Set date and time Auto Power Off Select the automatic power o ffdelay time Beep sound Activate / Deactivate button pressing sounds Language Select the menu display language...
- Page 10 Frequency 50 Hz or 60 Hz Screen refresh rate Screensavers Select the screen turning o ffdelay time Light set Activate / Deactivate night mode Night mode Format Select to format the memory card Default setting Select to revert to factory settings Version Select to check system firmare Firmware version...
- Page 11 Activate / Deactivate WDR function Wide Dynamic Range This function enables better image quality in high contrast environment Exposure Adjust image exposure level Motion Detection Activate / Deactivate motion detection trigger recording Audio Activate / Deactivate recording with sound Activate / Deactivate date stamp on the Date Stamp recording Gravity sensing...
- Page 12 Adjust sensitivity level for the parking Parking monitor mode Rear camera mirroring Select the mirroring display mode (Flip rear camera image) Photo settings In photo mode, long press Mode (M) button. Select ‘single’ to take a shot instantly, or ‘timer‘ to Capture mode set the shot delay time Resolution...
- Page 13 Sharpness Adjust sharpness level Adjust the white balance according White Balance to the environment Color Select image color effect Select light sensitivity level...
-
Page 14: Faq
Exposure Adjust image exposure level Anti-Shaking Activate / Deactivate image stabilizing Select preview duration after Quick Review taking a shot Date Stamp Activate / Deactivate date and time stamp on the photo FAQ: Q: Why my dvr camera indicate “SD card Full”? A: 1) Please check if your memor y card is original brand high speed Class 10 memor y card, if you use some copy card like Class 4 or Class 6, it will indicate “SD card full”... - Page 15 3) Please check your dvr MENU settings if you have turn OFF G-Sensor, Parking Monitor & Motion Detect this 3 functions already at the same time? If G-Sensor is on, the file will be protected to lock that can not be over write, also dvr will auto go to recording all the time if Parking Monitor &...
-
Page 16: Specification
Q: Why my dvr camera recording image not clear? A: Please check the video link that we upload online website link already, it is real link, so its recording quality image exactly same as product. In dvr camera MENU settings normally have 1080P, 720P, VGA option. Highest quality image is 1080P, middle quality image is 720P, and lowest quality image is VGA.
