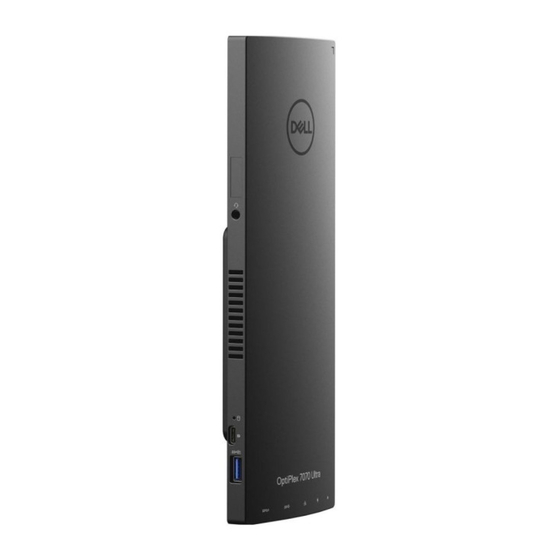

Dell OptiPlex 7070 Ultra
Setup and Specifications

Advertisement

Table of Contents
loading

Related Manuals for Dell OptiPlex 7070 Ultra

Summary of Contents for Dell OptiPlex 7070 Ultra

  • Page 1 Dell OptiPlex 7070 Ultra Setup and Specifications...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Exploded view..................................4 Top view....................................4 Bottom view................................... 5 Left and right view................................5 2 Set up your OptiPlex 7070 Ultra.....................7 Installing the device on a fixed stand..........................7 Monitor tilt angle................................15 Installing the device on a height-adjustable stand......................15 Stand tilt, pivot, and swivel images..........................

  • Page 4: Views

    Views Exploded view 1. Stand 2. OptiPlex 7070 Ultra 3. Stand cover Top view : Power button Views...

  • Page 5: Bottom View

    Bottom view Table 1. Bottom view Callout Description USB 3.1 Gen 2 Type-C port with DisplayPort Alt Mode/Power Delivery Power-adapter port Network RJ-45 port USB 3.1 Gen 2 Type-A port with SmartPower USB 3.1 Gen 1 Type-A port with SmartPower Left and right view Views...
  • Page 6 Table 2. Left and right view Callout Description Service tag location Universal audio jack Hard-drive status LED USB 3.1 Gen 2 Type-C port with DisplayPort Alt Mode USB 3.1 Gen 2 Type-A port with PowerShare Security screw hole Security lock slot Views...

  • Page 7: Set Up Your Optiplex 7070 Ultra

    Set up your OptiPlex 7070 Ultra Installing the device on a fixed stand Steps 1. Align and insert the slots on the fixed stand into the tab on the stand base. 2. Lift and tilt the stand base. 3. Tighten the captive screw to secure the stand to the base.
  • Page 8 6. Remove the screw that secures the stand mounting bracket to the stand. 7. Lift the mounting bracket to release the hooks on the bracket from the slots on the stand. Set up your OptiPlex 7070 Ultra...
  • Page 9 8. To avoid any damage to the monitor, ensure that you place the monitor on a protective sheet. 9. Align the screws on the mounting bracket with the screw holes on the monitor. 10. Tighten the four captive screws to secure the mounting bracket to the monitor. Set up your OptiPlex 7070 Ultra...
  • Page 10 11. Select the height at which you want to mount the monitor and align the hooks on the mounting bracket with the slots on the stand. 12. Replace the screw to secure the fixed stand to the monitor. Set up your OptiPlex 7070 Ultra...
  • Page 11 15. Connect the power, network, keyboard, mouse, and display cables to the device and to the power outlet. NOTE: To avoid any pinching or crimping of the cables while closing the stand cover, it is recommended that you route the cables as indicated in the image. Set up your OptiPlex 7070 Ultra...
  • Page 12 16. Slide the back cover, along with the device, into the stand until you hear a click. 17. Lock the device and the stand cover. Set up your OptiPlex 7070 Ultra...
  • Page 13 18. Press the power button to turn on the device. Set up your OptiPlex 7070 Ultra...
  • Page 14 Set up your OptiPlex 7070 Ultra...

  • Page 15: Monitor Tilt Angle

    1. Align and insert the slots on the height-adjustable stand into the tab on the stand base. 2. Lift and tilt the stand base. 3. Tighten the captive screw to secure the stand to the base. Set up your OptiPlex 7070 Ultra...
  • Page 16 4. To avoid any damage to the monitor, ensure that you place the monitor on a protective sheet. 5. For installing the height-adjustable stand to the monitor: a) Align and insert the hooks on the mounting bracket on the stand into the slots on the monitor, until you hear a click. Set up your OptiPlex 7070 Ultra...
  • Page 17 Align and insert the QR tabs on the stand into the slots on the QR to VESA bracket on the monitor. d) Tighten the thumb screw to secure the stand to the QR to VESA bracket. Set up your OptiPlex 7070 Ultra...
  • Page 18 8. Slide and lift the cover to release it from the stand. 9. Align the vents on the device with the vents on the stand cover. 10. Lower the device in the stand until you hear a click. Set up your OptiPlex 7070 Ultra...
  • Page 19 To avoid any pinching or crimping of the cables while closing the stand cover, it is recommended that you route the cables as indicated in the image. 12. Slide the back cover, along with the device, into the stand until you hear a click. Set up your OptiPlex 7070 Ultra...
  • Page 20 13. Lock the device and the stand cover. 14. Press the power button to turn on the device. Set up your OptiPlex 7070 Ultra...
  • Page 21 Set up your OptiPlex 7070 Ultra...

  • Page 22: Stand Tilt, Pivot, And Swivel Images

    Installing device on offset VESA mount Steps 1. Align the screw holes on the device with the screw holes on the offset VESA mount. 2. Install the four screws to secure the device to the offset VESA mount. Set up your OptiPlex 7070 Ultra...
  • Page 23 4. Align the screw holes on the offset VESA mount with the screw holes on the monitor. 5. Install the four screw spacers and the screws to secure the offset VESA mount to the monitor. Set up your OptiPlex 7070 Ultra...
  • Page 24 6. Insert the hooks on the mounting bracket of the monitor arm stand into the slots on the offset VESA mount on the monitor. 7. Lower the monitor on the monitor arm stand until you hear a click. Set up your OptiPlex 7070 Ultra...
  • Page 25 NOTE: To install the offset VESA mount on a Dell E-Series monitor, remove the VESA cover from the back of the monitor and secure the offset VESA mount along with the device to the monitor. Set up your OptiPlex 7070 Ultra...
  • Page 26 NOTE: While orienting the monitor horizontally, route the security lock cable to the right side of the device to avoid any impact to WLAN performance. Set up your OptiPlex 7070 Ultra...

  • Page 27: Powering The System

    Type-C display settings When using a Dell USB Type-C display to power on your OptiPlex 7070 Ultra, to avoid any power loss to the device when the display is turned off or on Standby mode, ensure that the Always on USB-C Charging setting on the display is enabled.

  • Page 28: Smart Power Enablement

    USB keyboard. Enable USB Wake support: 1. Press <F12> when the Dell logo appears to initiate a one-time boot menu. Go to BIOS Setup. 2. Select Power Management.

  • Page 29: Specifications Of Optiplex 7070 Ultra

    Specifications of OptiPlex 7070 Ultra Processors Table 4. Processors Processors Wattage Core count Thread count Speed Cache Integrated graphics 25 W 2.10 GHz to 4 MB Intel UHD Graphics 620 Generation Intel Core 3.90 GHz i3-8145U Generation Intel Core 25 W 1.60 GHz to...

  • Page 30: Storage

    1 USB 3.1 Gen 2 type-A port with SmartPower (rear) Audio Universal Audio Jack Video DisplayPort over USB Type-C port Power adapter port 4.50 mm x 2.90 mm DC-in Security • 1 Kensington lock slot • 1 Security screw hole to secure cover Specifications of OptiPlex 7070 Ultra...

  • Page 31: Audio

    DisplayPort Multi-Streaming Technology Core i3/i5/i7 (MST) • Two DisplayPort 1.2 support over USB 3.1 Type-C port Communications Ethernet Table 12. Ethernet specifications Description Values Model number Intel i219V (non-vPro) or Intel i219LM (vPro) Transfer rate 10/100/1000 Mbps Specifications of OptiPlex 7070 Ultra...

  • Page 32: Power Adapter

    -40°C to 70°C (-40°F to 158°F) Dimensions and weight Table 15. Dimensions and weight Description Values Height: Front 19.70 mm (0.78 in.) Rear • Without HDD: 19.70 mm (0.78 in.) • With HDD: 27.74 mm (1.09 in.) Specifications of OptiPlex 7070 Ultra...

  • Page 33: Accessories

    Dell KM717 Premium Wireless Keyboard and Mouse Combo Dell KB522 Multimedia Wired Keyboard Dell MS116 Wired Mouse Dell Laser Scroll USB 6-Buttons Silver and Black Mouse Dell MS819 Wired Mouse with Fingerprint Reader Dell WM326 Wireless Mouse Dell WM527 Wireless Mouse...

  • Page 34: Energy Star And Trusted Platform Module (Tpm)

    Environmental Standards (eco-labels): ENERGY STAR, EPEAT Registered, TCO Certified, CEL, WEEE, Japan Energy Law, South Korea E-standby, South Korea Eco-label, EU RoHS, China RoHS. Please see your local representative or www.dell.com for specific details. Computer environment Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 18.
