Instructions for Use
Metering Valve with Handgrip AXDV-C*-SV
AXDV-C3-HG
AXDV-C4-HG
© Publisher's copyright
This document may not be reproduced, translated or made
available to third parties without the express permission of the
publisher.
Instructions for Use
These instructions for use form part of the plant/equipment and
should be transferred to the new owner in the event of the
plant/equipment being sold.
3
0.1 – 2.0 cm
3
1.0 – 6.0 cm
Ausgabe 05.11.2012/MB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXDV-C3-HG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABNOX AXDV-C3-HG

Summary of Contents for ABNOX AXDV-C3-HG

  • Page 1 Metering Technology for Grease and Oil High Pressure Hydraulics Customised Developments Instructions for Use In accordance with Machinery Directive 2006/42/EG Metering Valve with Handgrip AXDV-C*-SV AXDV-C3-HG 0.1 – 2.0 cm AXDV-C4-HG 1.0 – 6.0 cm ABNOX AG © Publisher's copyright...
  • Page 2 Version05.11.2012 Page2 of 11...

  • Page 3: Table Of Contents

    CONTENTS SAFETY INFORMATION ........................4 ............................. 4 NTENDED USE ......................4 BLIGATIONS OF THE OPERATOR ........................ 4 ASIC SAFETY INFORMATION ......................5 AFETY AND HAZARD SYMBOLS ................... 5 AFETY INFORMATION FOR USING THE PRODUCT ........................5 PECIAL TYPES OF HAZARD ...........................

  • Page 4: Safety Information

    • No modifications may be carried out at the equipment/device. Should this happen, then the customer shall have the sole responsibility. For desired modifications please speak to ABNOX AG. • The safe operational condition of the equipment/device should be guaranteed at all times. An inspection on the function and damages should be conducted regularly by the qualified personnel.

  • Page 5: Safety And Hazard Symbols

    • Safety equipments may be removed only after bringing the equipment to a standstill and protecting the equipment/device from being started again. • Before each operation of the equipment/device all the safety equipments must be attached professionally and must be functional. •...

  • Page 6: Warranty And Liability

    • Separate the mains plug from the network and secure against unintended operation. • The pneumatic / hydraulic system must be pressure less. • Check all the screw and fitting connections for firm position. • After completing the work all the functions and safety equipments should be checked immediately. WARNING All the works at the equipments/device should be carried out only when the equipment is at standstill.

  • Page 7: Intended Use

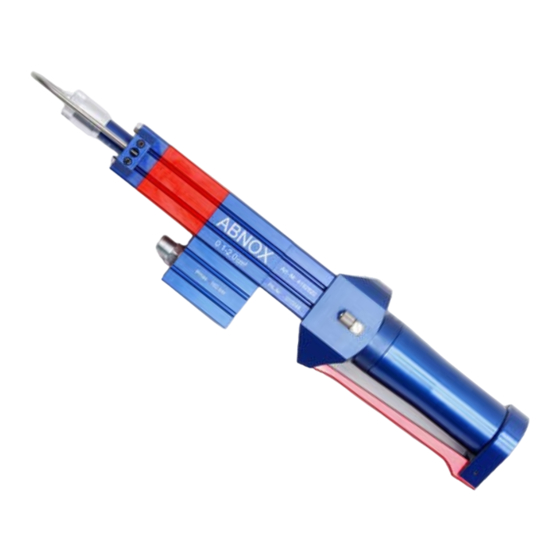

    2.1.1 Datasheet AXDV-C3-SV and AXDV-C4-SV Metering screw Fixing hook Lubricant outlet Connections for air pressure Connections for lubricant Operating trigger The unique design means the lubricant and air supply can be controlled from either the underside or the back of the grip. Unnecessary connection points can be closed off using locking screws.

  • Page 8: Method Of Operation

    Packaging The system/the device is prepared by ABNOX AG for the transport to the relevant "initial place of destination". The packaging unit must not be subjected to any additional load. The packaging and its content must be protected from any impact of humidity.

  • Page 9: First Time Operation

    First Time Operation NOTE Check that air pressure of the control air is approx. 6 bar. This ensures the best possible performance by the valve with handgrip. The substance pressure should not exceed 200 bar. Please also check the pressure transmission of the feed pump.

  • Page 10: Finding And Fixing Faults

    Remove the feed tube from the metering valve, pour Air is trapped in the tubes. out the lubricant, then reassemble the tube. Restart using the maximum application amount. Customer service/support ABNOX AG Langackerstrasse 25 CH-6330 Cham Switzerland Tel. +41 (0) 41 780 44 55...

  • Page 11: Retirement Of The Product

    Spare parts drawings, spare parts lists sealing set drawings and sealing set lists can be found in the drawing set at the end of these operating instructions. NOTE Accessories, drawings and spare parts can be found at www.abnox.com Resale These operating instructions are part of the system/device and are included in the scope of delivery in the event of a resale.

This manual is also suitable for:

Axdv-c4-hg
