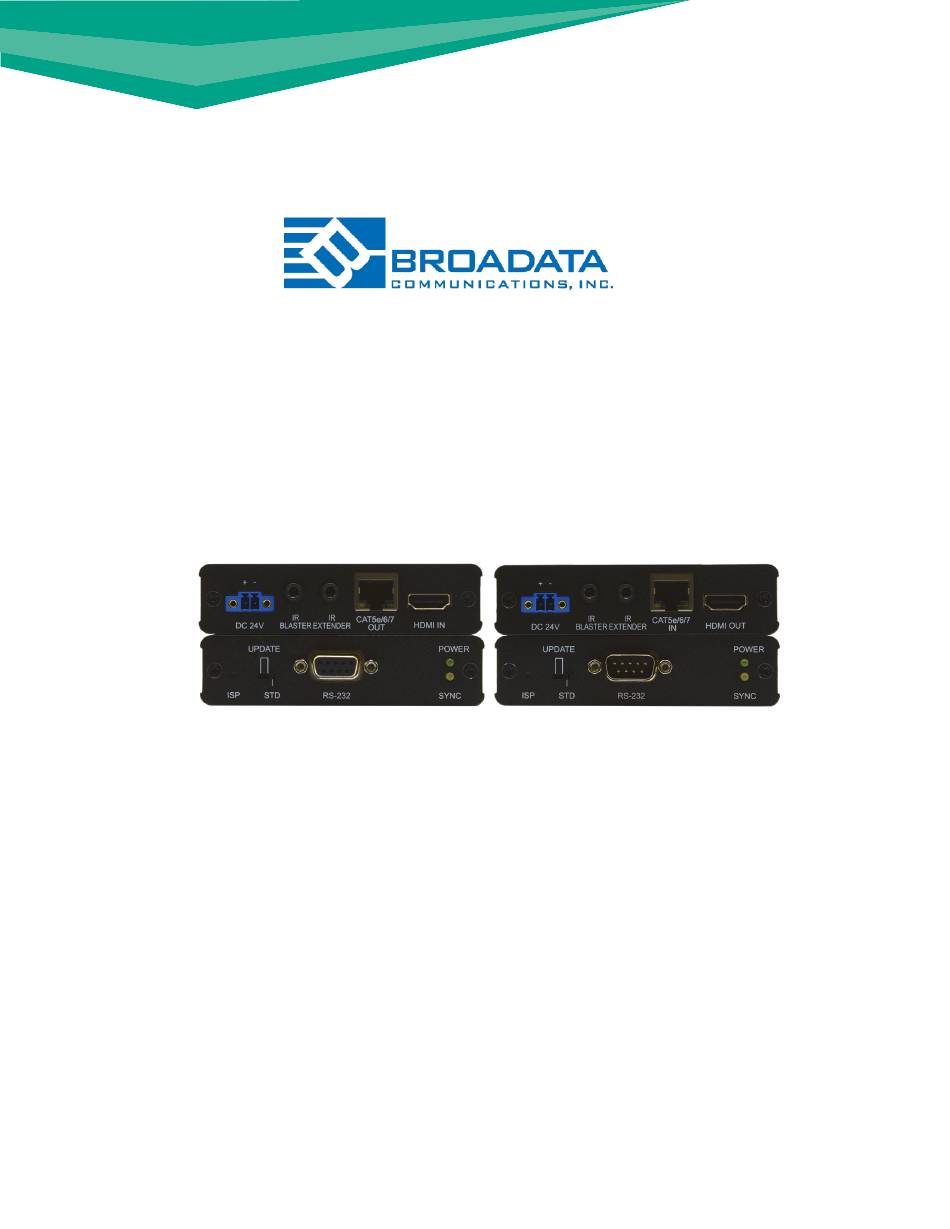

LINKBRIDGE™ HDBASET 18G/4K HDR HDMI
4-PLAY AVLC TRANSMITTER & RECEIVER
with 24V Bi-Directional PoC
LBC-H2V-T-4P / LBC-H2V-R-4P
USER MANUAL
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata Communications LINKBRIDGE LBC-H2V-T-4P
Summary of Contents for Broadata Communications LINKBRIDGE LBC-H2V-T-4P
- Page 1 LBC-H2V-T-4P / LBC-H2V-R-4P USER MANUAL BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2019 Broadata Communications, Inc.
- Page 2 SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATION PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes,surges,electric shock,lightning strikes, etc. Use of surge proctection system is highly recommended in order to protect and extend the life of your equipment.
- Page 3 SAFETY INFORMATION Do not use this device near water/liquids. This device should not be exposed to dripping and splashing or liquids. Clean only with dry cloth. Do not use solvents such as paint thinners and acetone to clean external casing. Such agents will remove any labels on the device.
-
Page 4: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION OPERATION CONTROL AND FUNCTIONS FRONT/REAR PANEL CONNECTOR PIN OUT ASSIGNMENT SPECIFICATIONS CONNECTION DIAGRAM MAINTENANCE AND TROUBLESHOOTING SERVICE PROCEDURE REPLACEMENT POLICY RETURN AND REPAIR SERVICE LIMITED WARRANTY HDBaseT 18G/4K HDR HDMI 4-Play AVLC Transmitter & Receiver User Manual (LBC-H2V-T-4P / LBC-H2V-R-4P) -
Page 5: Product Description
PRODUCT DESCRIPTION The LBC-H2V-T/R-4P is capable of extending UHD video and audio and control via a single run of CAT 5e/6/7 cable over distances of up to 70 meters. This extender complies with HDCP 2.2 and 18G HDMI standards, and supports legacy HDCP 1.x and HDMI 1.x standards. It also supports 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, that can be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) all while staying within HDBaseT’s 10.2Gbps bandwidth... - Page 6 PRODUCT DESCRIPTION PACKAGE CONTENTS • 1- HDMI to HDBaseT Transmitter with Bi-directional 24V PoC • 1- HDMI to HDBaseT Receiver with Bi-directional 24V PoC • 1- 24V/1.25A DC Power Adapter • 1- 2-pin Terminal Block • 1- 3.5mm to IR Extender Cable •...
-
Page 7: Operation Control And Functions
OPERATION CONTROL AND FUNCTIONS TRANSMITER- FRONT PANEL LBC-H2V-T-4P ISP Pinhole: This button is reserved for factory use only. STD/UPDATE Switch: This switch is reserved for factory use only. Note: This should be left on the default setting of “STD” for normal operation. RS-232 Port: Connect to a PC, laptop, or serial controllable device for the extension of RS-232 signals between both ends of the... -
Page 8: Front/Rear Panel
OPERATION CONTROL AND FUNCTIONS TRANSMITER- REAR PANEL LBC-H2V-T-4P DC 24V Terminal Block: Plug the 24V DC power adapter into this terminal block and connect it to an AC wall outlet for power. (Optional) Note: This connection is not required if the unit is receiving power via 24V PoC from the Receiver. - Page 9 OPERATION CONTROL AND FUNCTIONS RECEIVER- FRONT PANEL LBC-H2V-T-4P ISP Pinhole: This button is reserved for factory use only. STD/UPDATE Switch: This switch is reserved for factory use only. Note: This should be left on the default setting of “STD” for normal operation. RS-232 Port: Connect to a PC, laptop, or serial controllable device for the extension of RS-232 signals between both ends of the...
- Page 10 OPERATION CONTROL AND FUNCTIONS RECEIVER- REAR PANEL LBC-H2V-R-4P DC 24V Terminal Block: Plug the 24V DC power adapter into this terminal block and connect it to an AC wall outlet for power. (Optional) Note: This connection is not required if the unit is receiving power via 24V PoC from the Transmitter.
-
Page 11: Connector Pinout Assignment
CONNECTOR PINOUT ASSIGNMENT IR Cable Pin Outs IR Blaster IR Extender Power Power Infared Infared Ground Not Used RS-232 Bypass Pin Out DB-9 Pin Out Male Port Female Port DTE(Rx) DCE(Tx) HDBaseT 18G/4K HDR HDMI 4-Play AVLC Transmitter & Receiver User Manual (LBC-H2V-T-4P / LBC-H2V-R-4P) -
Page 12: Specifications
SPECIFICATIONS PHYSICAL VIDEO INPUT (TX) Dimensions 4.01"(W) x 4.53"(D) x 0.98"(H) Video Formats HDMI Power Consumption 24V DC, 1.25A Connector HDMI type A jack Power Connector 2-pin Terminal Block Operating Temperature 0 to 40ºC VIDEO OUTPUT (RX) Humidity 20 to 90% RH, Non-Condensing Video Formats HDMI Connector... -
Page 13: Connection Diagram
CONNECTION DIAGRAM HDBaseT 18G/4K HDR HDMI 4-Play AVLC Transmitter & Receiver User Manual (LBC-H2V-T-4P / LBC-H2V-R-4P) -
Page 14: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 3.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 3.2 Troubleshooting If the LBC-H2V-T-4P & LBC-H2V-R-4P units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. -
Page 15: Service Procedure
The LBC-H2V-T-4P contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 16: Limited Warranty
LIMITED WARRANTY 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of ship- ment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained. - Page 17 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com 2545 West 237th Street Website: www.broadatacom.com Torrance, CA 90505 800•214•0222 310•530•1416 e-mail: Sales@broadatacom.com www.broadatacom.com HDBaseT 18G/4K HDR HDMI 4-Play AVLC Transmitter & Receiver User Manual (60000LBC-H2V-TR-4P)
