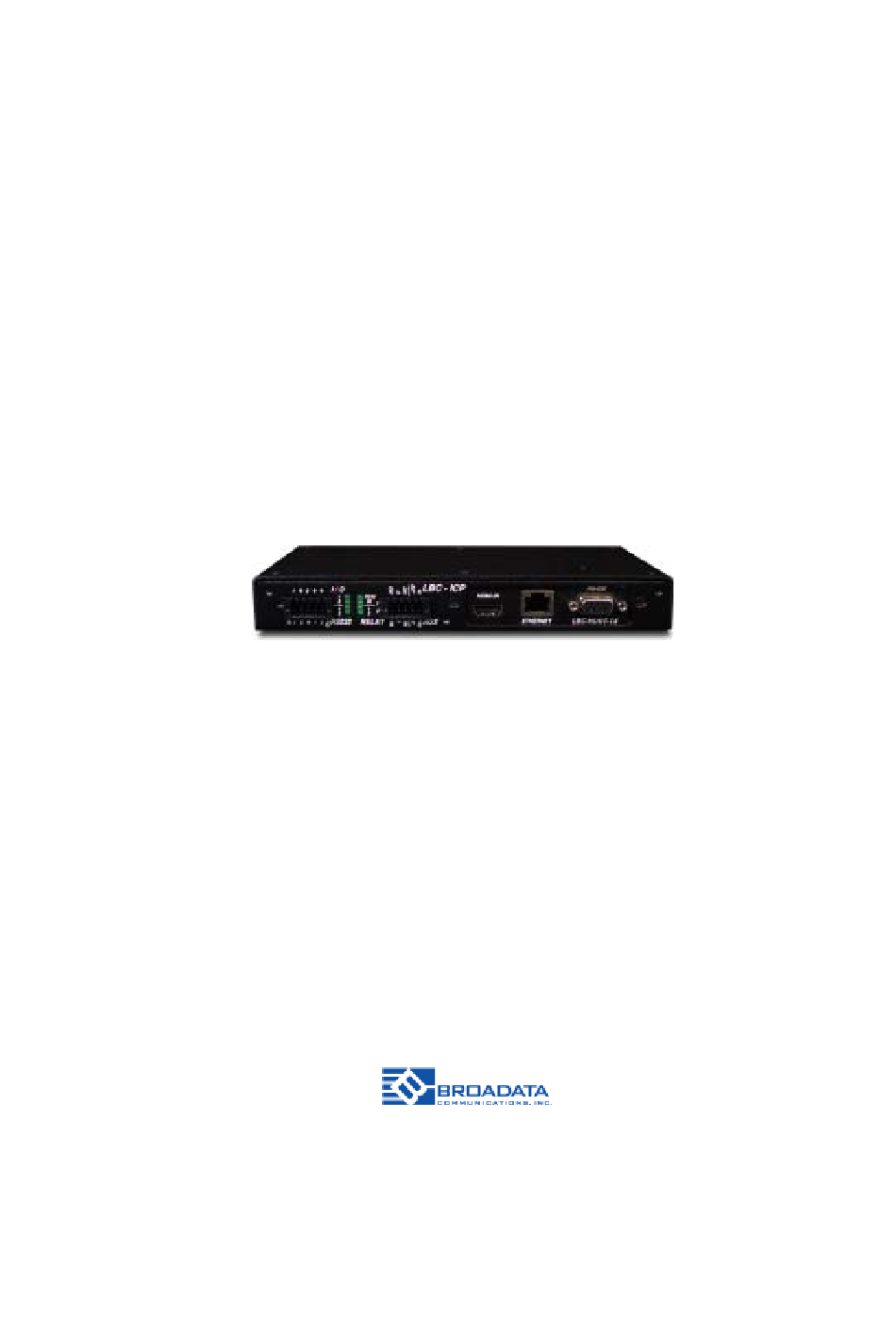

LBC-HDBT-T/R-ICP
TM
L
B
HB
T HDMI
INK
RIDGE
ASE
T
S
RANSMISSION
YSTEM WITH
I
C
P
NLINE
ONTROL
ROCESSOR
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2013 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata Communications LBC-HDBT-T
Summary of Contents for Broadata Communications LBC-HDBT-T
- Page 1 YSTEM WITH NLINE ONTROL ROCESSOR BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS AS OUR PRODUCTS CONTAIN SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROL AND FUNCTIONS ....6 2.1 TRANSMITTER EXTENDER FRONT AND REAR PANELS ................6 2.2 RECEIVER FRONT AND REAR PANEL ......7 2.3 ICP FRONT AND REAR PANEL ........8... -
Page 4: Product Description
RS-232 RS-232 Extender 1 CAT-5/6e Ethernet RS-232 RS-232 Digital I/O Relay Control Keypad LB-KP8 Figure 1-1 ORDERING INFORMATION LBC-HDBT-T-ICP Link Bridge Transmitter w/IR/RS-232/Ethernet and Control I/O Ports LBC-HDBT-R-ICP Link Bridge Receiver w/IR/RS-232/Ethernet and Control I/O Ports Broadata Technical Support, Sales@Broadatacom.com... -
Page 5: Operation Control And Functions
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor OPERATION CONTROLS AND FUNCTIONS 2.1 Transmitter Extender Front and Rear Panels TX Extender/Front TX Extender/Rear A1. HDMI In: Connect to HDMI source equipment such as a DVD or Blu-ray player. -
Page 6: Receiver Front And Rear Panel
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor 2.2 Receiver Extender Front and Rear Panels RX Extender/Front RX Extender/Rear B1. HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. -
Page 7: Icp Front And Rear Panel
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor 2.3 ICP Front and Rear Panel C5 C6 ICP/Front ICP/Rear C1. Digital I/O: Digital input/output ports. C2. Digital I/O LEDs: Light when the corresponding ports are active high. -
Page 8: Connector Pinout Assignment
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor 3.0 CONNECTOR PINOUT ASSIGNMENT 3.1 Extender 3.1.1 D-Sub Pin Assignment Define TX/RX TxD/RxD RxD/TxD 3.1.2 IR Blaster Cable Pin Assignment IR Blaster Power 5V IR Blaster Signal Broadata Technical Support, Sales@Broadatacom.com... -
Page 9: Ir Receiver Cable Pin Assignment
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor 3.1.3 IR Receiver Cable Pin Assignment IR Receiver IR Signal Power 5V Grounding 3.2 ICP Front Broadata Technical Support, (800) 214-0222... -
Page 10: Lb-Kp8 Keypad
Position 4: Reserved 6 - RX- 7 - N/C 8 - N/C 3.3 LB-KP8 Keypad In many cases, LBC-HDBT-T/R-ICP will need a keypad (LB-KP8) to trigger the preset control function. The following is the connection diagram between LBC-HDBT-T/R-ICP and LB-KP8. Rear... - Page 11 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor The cable connection between LB-KP8 and LB-ICP is shown below. 1. White/Orange +12VDC IR Out Learner 2. Orange 3. White/Green 4. Blue CONFIG RESET 5. White/Blue 6. Green 7.
-
Page 12: Lb-Icp Web Server Description
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor 4.0 LB-ICP WEB SERVER DESCRIPTION Introduction The ICP Web Server provides user friendly and intuitive web pages to configure the virtual keypad and automation functions within the ICP. It also provides web pages to manage the IR Learner and IR code import. - Page 13 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Before configuring the Virtual Keypad, the system first needs to be set up using the Configure System page. On the top menu bar, click Configure and then click System. This brings up the ICP Login page.
- Page 14 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Configure System The Configure System page is used to configure the local unit’s virtual keypad, RS-232 channels, Digital IO channels and remote unit types. On the top menu bar, click Configure and then click System. The following page will be displayed.
- Page 15 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Local Unit The first two lines in this panel show the Local unit type and software version. Below that are the pull down menus for selecting the virtual keypad size and enabling Auto Action Triggers.
- Page 16 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Digital IO Channel: Select channel 1 or 2. Digital IO Direction: Select channel as a digital Input or Output. If the Digital IO Direction is set to Input, there is an option for Pullup Resistor.
- Page 17 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Configure Key Action The Configure Key Action page is used to configure the keys virtual on the virtual keypad. On the 8-key keypad, each function key can be defined as a macro for up to 10 different actions.
- Page 18 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Function Key: Select the function key F1 through F8 to be defined. Function Key Label: Type in a label name for the selected function key. Function Key Mode: Select Standard for a “momentary” type key.
- Page 19 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Relay Options Relay Channel: Select the relay channel 1 or 2. Relay State: Select the relay channel state, On (energized) or Off (de-energized). Digital Output Options Digital Output Channel: Select the digital output channel 1 or 2.
- Page 20 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor RS-232 Options RS-232 Channel: Select channel 1, 2, or 3 (Remote). Transmit String: Type in the text string to be transmitted. Strings are terminated with CR+LF, depending on the selection made in Configure System page.
- Page 21 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor IR Options IR Preset: Select from list of IR commands stored in memory. IR commands must be learned via Configure IR Code page or imported via Configure IR Import page.
- Page 22 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Telnet Options IP Address: Enter IP address of telnet server. IP Port: Enter port number of telnet server. The default port number is UserName Prompt: Enter username prompt from telnet server. Leave blank if there is no username prompt.
- Page 23 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor UserName: Enter user name required for log in. Leave blank if there is no username. Password Prompt: Enter password prompt from telnet server. Leave blank if there is no password prompt.
- Page 24 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Configure Auto Action The Configure Auto Action page is used to configure a set of auto actions based on a selected trigger. Available triggers are Video Detect, Digital Input 1, Digital Input 2, RS-232 Channel 1, RS-232 Channel 2, Telnet Trigger 1 and Telnet Trigger 2.
- Page 25 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Configure IR Code The Configure IR Code page is used to learn and manage IR codes in the ICP. To learn an IR code, type in the label of the IR code in New Label and click the Learn button.
- Page 26 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Configure IR Code Import The Configure IR Code Import page is used to import an IR pronto code. Once a code is imported, it will be stored in memory and is available as an IR Preset.
- Page 27 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor View and Manage Settings The View and Manage Settings page shows the current settings of the Key Action Definitions, Auto Action Definitions and IR Code Definitions. Click the Details button next to Key Action Definitions to display the Key Action settings details.
- Page 28 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Click the Key Action Definitions Details button and the following will be displayed: Broadata Technical Support, Sales@Broadatacom.com...
- Page 29 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Click the Auto Action Definitions Details button and the following will be displayed: Click the IR Code Definitions Details button and the following will be displayed: Broadata Technical Support, (800) 214-0222...
- Page 30 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Examples Example #1: This example configures the F1 key on the virtual keypad as a toggle key to turn on/off Relay channel 1. On the top menu click Configure and then Key Action.
- Page 31 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Configure F1 Key toggle-release action, to turn Relay channel 1 Off as follows: Click Submit Changes. On the top menu click Keypad. The following virtual keypad should be...
-
Page 32: Specifications
LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor 5.0 SPECIFICATIONS VIDEO/AUDIO (TRANSMISSION) HDMI Version 1.4 with 3D, up to 4K x 2K support Protocol DDC/EDID/HDCP Capable Video Bandwidth 300MHz/10.2Gbps Audio Formats Supports up to 7.1CH & Dolby TrueHD,... - Page 33 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor RS-232 (CONTROL) Channel Capacity 2 (no flow control) or 1 (with RTS/CTS flow control) Baud Rate 2400 to 115200 baud (9600 baud=default), 8 data bits, 1 stop bit, no parity...
-
Page 34: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 6.2 Return/Repair Service The Link Bridge LBC-HDBT-T/R-ICP System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 35: Limited Warranty
HBaseT HDMI Transmission System w/Inline Control Processor 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... - Page 36 LBC-HDBT-T/R-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/Inline Control Processor Broadata Technical Support, Sales@Broadatacom.com...
- Page 37 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-HDBT-T/R-ICP...
