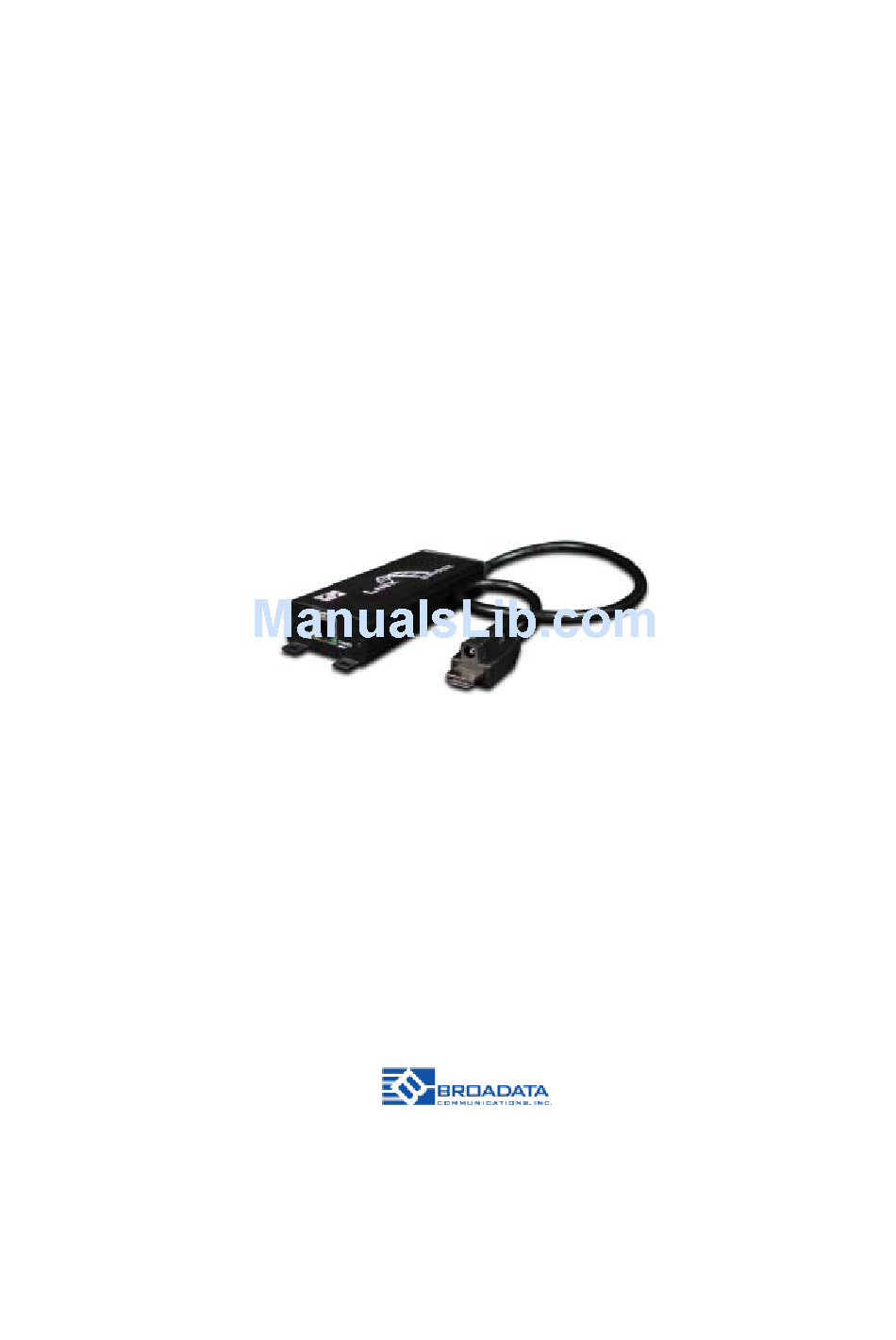

- Page 1 HDMI R ECEIVER W BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROLS AND FUNCTIONS ....6 2.1 FRONT PANEL ..............6 2.2 REAR PANEL ..............7 3.0 MAINTENANCE AND TROUBLESHOOTING ....8 3.1 MAINTENANCE ..............8 3.2 TROUBLESHOOTING .............8 4.0 SPECIFICATIONS ............. -
Page 4: Product Description
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH 1.0 PRODUCT DESCRIPTION The LBC-HDBT-R-DG Receiver can receive uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable up to distances of 100m. It has the added benefit of a bi-directional LAN connectivity, allowing devices such as a Smart TV or games consoles to share an Internet connection. -
Page 5: Operation Controls And Functions
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel 1. CAT5e/6/7 IN: Connect to the transmitter unit with a Single CAT5e/6/7 cable for transmission of all data signals over HDBaseT. 2. LINK LED: The yellow LED will illuminate when both the input and output signals are connected through the Category cable. -
Page 6: Rear Panel
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH 2.2 Receiver Front and Rear Panels 1. HDMI OUT: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. 2. LAN: The LAN connection can be used to share a network or internet connection to a PC/Laptop or Smart TV that is connected to the receiver or can be connected to a network link to provide network/internet service to the transmitter (LAN equipped... -
Page 7: Maintenance And Troubleshooting
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH 3.0 MAINTENANCE AND TROUBLESHOOTING 3.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 3.2 Troubleshooting If the LBC-HDBT-R-DG units do not operate properly after installation, check for possible cable breaks, loose connections,... -
Page 8: Specifications
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH 4.0 SPECIFICATIONS Video Bandwidth 340MHz/10.2Gbps Ethernet Speed 100 Mbps Input Port 1×CAT5e/6/7 Output Port 1×HDMI, 1×LAN (RJ45) CAT5e/6/7 Output Cable Up to 100 Meters Supports Resolutions 480i~1080p@50/60, 1080p@24, 4K2K & VGA~WUXGA Dimensions 50mm (W)×130mm (D)×23mm (H) Operating Temperature... -
Page 9: Service Procedure
The LBC-HDBT System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 10: Limited Warranty
HDbaseT HDMI Receiver w/PoH 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... -
Page 11: Appendix A
LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH 7.0 APPENDIX A: CAT-5E/6/7 CABLE SPECIFICATION Broadata Technical Support, (800) 214-0222... - Page 12 LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH Broadata Technical Support, Sales@Broadatacom.com...
- Page 13 LBC-HDBT-R-DG User’s Manual Link Bridge HDbaseT HDMI Receiver w/PoH Broadata Technical Support, (800) 214-0222...
- Page 14 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-HDBT-R-DG...
